- Page 1 Fujitsu Microelectronics Europe FMEMCU-UG-910085-11 User Guide FR60 FAMILY SOCKET ADAPTER BOARD EMA-MB91F460Q-320M06 USER GUIDE...
-
Page 2: Revision History
V1.0 AW, First draft 2009-03-09 V1.1 CEy, Updated cover picture These were the latest revisions of related documents when this user guide revision had been released: Schematic: PCB: This document contains 12 pages. UG-910085-11 - 2 - © Fujitsu Microelectronics Europe GmbH... -
Page 3: Warranty And Disclaimer
Product or parts thereof, if the Product is returned to Fujitsu Microelectronics Europe GmbH in original packing and without further defects resulting from the customer´s use or the transport. -
Page 4: Table Of Contents
General Description....................5 2 INSTALLATION ....................... 6 3 LOCATION OF PARTS....................7 4 MECHANICAL DIMENSIONS..................8 5 INFORMATION IN THE WWW..................9 6 CHINA-ROHS REGULATION ..................10 7 RECYCLING ........................12 UG-910085-11 - 4 - © Fujitsu Microelectronics Europe GmbH... -
Page 5: Introduction

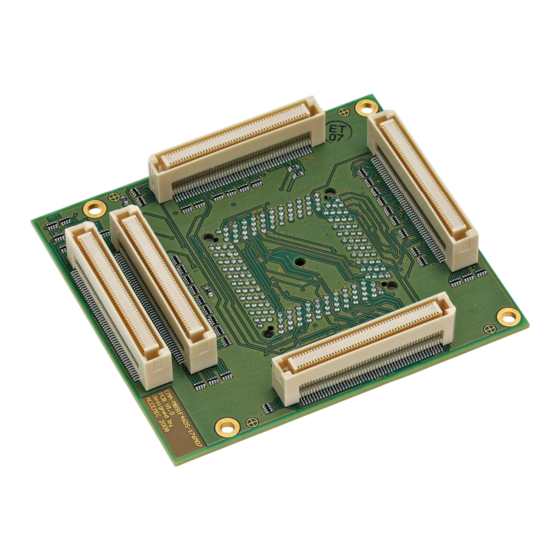

1.1 Abstract The EMA-MB91F460Q-320M06 in combination with the EMA-MB91FV460B-001 is a development system for the Fujitsu FR60 MB91FV460B Flash microcontroller. The development system allows the designer immediately to start with the software development before MB91FV460B based silicon samples are available. -
Page 6: Installation
Please refer to the User Guide of the EMA-MB91FV460B-001 for a description of the assembling and disassembling process of the EMA system stack. Figure 2-1: Installation UG-910085-11 - 6 - © Fujitsu Microelectronics Europe GmbH... -
Page 7: Location Of Parts
EMA-MB91F460Q-320M06 Chapter 3 Location of Parts 3 Location of Parts J800 J802 J803 J810 J801 Figure 3-1: Location of parts (top layer) © Fujitsu Microelectronics Europe GmbH - 7 - UG-910085-11... -
Page 8: Mechanical Dimensions
Top view Pin A1 YQSOCKET256SE Ø2,70 Ø2,70 30,00 30,00 47,50 80,00 EMA-MB91FV460B-001 EMA-MB91F460Q-320M06 YQSOCKET / CSICE / CSPACK (socket dimension depends on socket type) Target board 41 mm Figure 4-1: Mechanical Dimensions UG-910085-11 - 8 - © Fujitsu Microelectronics Europe GmbH... -
Page 9: Information In The Www
Microcontrollers (8-, 16- and 32bit), Graphics Controllers Datasheets and Hardware Manuals, Support Tools (Hard- and Software) http://mcu.emea.fujitsu.com/ Power Management Products http://www.fujitsu.com/emea/services/microelectronics/powerman/ Media Products: SAW filters, acoustic resonators and VCOs http://www.fujitsu.com/emea/services/microelectronics/saw/ For more information about FUJITSU MICROELECTRONICS http://www.fujitsu.com/emea/services/microelectronics/ © Fujitsu Microelectronics Europe GmbH - 9 - UG-910085-11... -
Page 10: China-Rohs Regulation
“Year”. UG-910085-11 - 10 - © Fujitsu Microelectronics Europe GmbH... - Page 11 X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T11363-2006. • Data listed in the table represents best information available at the time of publication © Fujitsu Microelectronics Europe GmbH - 11 - UG-910085-11...
-
Page 12: Recycling
According to the European WEEE-Directive and its implementation into national laws we take this device back. For disposal please send the device to the following address: Fujitsu Microelectronics Europe GmbH Warehouse/Disposal Monzastraße 4a D-63225 Langen GERMANY -- END -- UG-910085-11 - 12 - © Fujitsu Microelectronics Europe GmbH...
