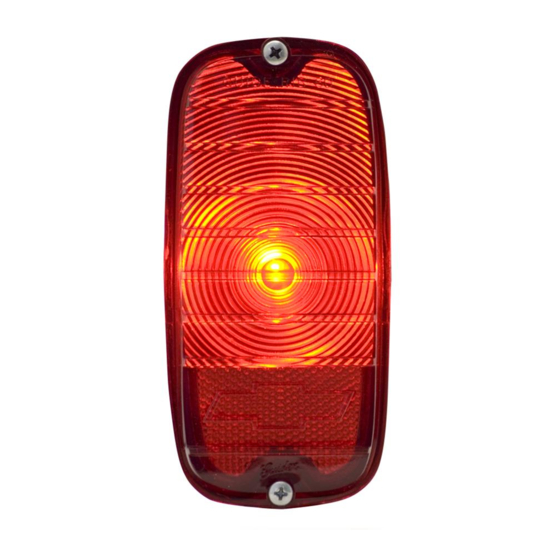

Dakota Digital LED Tail Lights LAT-NR230 Installation Instructions

Led tail lights for 1960-1972 chevy fleetside pickup and 1955-58 chevy cameo

Download this manual

MAN#650188 rev. B

Kit Includes:

Installation:

Remove the two screws and tail light lens.

2. Remove the light bulb.

3. Push and twist to remove the plastic wire socket from the back side of the housing.

4. Now is a good time to clean the lens and housing. If lenses are in bad shape a new set is

recommended.

5. Remove the nut and round metal spacer from the back of the new LED assembly.

INSTALLATION INSTRUCTIONS

LAT-NR230

LED Tail Lights for 1960-1972 Chevy Fleetside Pickup

and 1955-58 Chevy Cameo

MAN#650188 rev. B

Page 1 MAN#650188 rev. B Kit Includes: Installation: Remove the two screws and tail light lens. 2. Remove the light bulb. 3. Push and twist to remove the plastic wire socket from the back side of the housing. 4. Now is a good time to clean the lens and housing. If lenses are in bad shape a new set is recommended.
Page 2 Insert the new LED assembly through the hole where the original bulb and connector were. Use caution when feeding the wires through to avoid damaging the wire insulation. Feed the wires through the round metal spacer, with one wire going through each outer hole in the aluminum spacer.
Page 3 This Warranty is in lieu of all other expressed warranties or liabilities. Any implied warranties, including any implied warranty of merchantability, shall be limited to the duration of this written warranty. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
