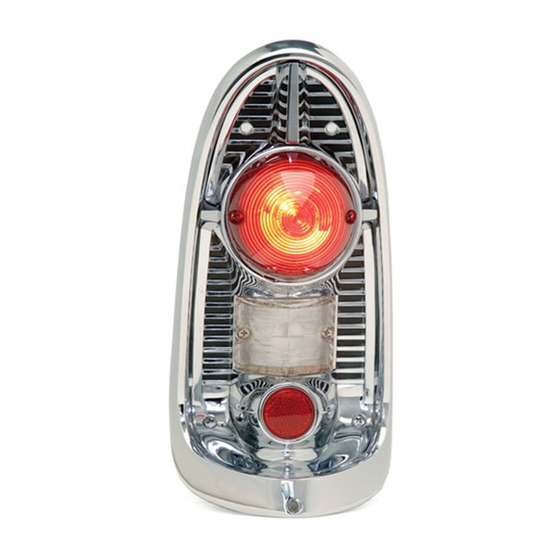

Dakota Digital LED Tail Lights for 1956 Chevy Car LAT-NR200 Installation Instructions

Led tail lights for 1956 chevy car

Download this manual

MAN#650184

Kit Includes:

Installation:

1. Remove the two screws that are in the tail light lens, and

remove the lens.

2. Remove the light bulb.

3. Push and twist to remove the plastic bulb socket from the back side of the

housing.

4. Now is a good time to clean the lens and housing. If lenses are in bad shape a new set is

recommended.

5. Remove the nut, washer, and aluminum spacer from the back of the

new LED assembly, noting how it is assembled for re-assembly.

Gently pull the wires through the aluminum spacer so the insulation is

not damaged.

6. Insert the new LED assembly, wires first, through the hole where the

original bulb and plastic socket were. Use caution when feeding the

wires through to avoid damaging the wire insulation.

INSTALLATION INSTRUCTIONS

LAT-NR200

LED Tail Lights for 1956 Chevy Car

MAN#650184

Page 1 MAN#650184 Kit Includes: Installation: 1. Remove the two screws that are in the tail light lens, and remove the lens. 2. Remove the light bulb. 3. Push and twist to remove the plastic bulb socket from the back side of the housing.
Page 2 If you are replacing only the rear turn signals you should be able to use a heavy duty electronic flasher from your local parts store. If you are replacing both front and rear or do not have front bulbs you will need a no-load flasher, Dakota Digital part number LAT-NLF.
Page 3: Service And Repair
This Warranty is in lieu of all other expressed warranties or liabilities. Any implied warranties, including any implied warranty of merchantability, shall be limited to the duration of this written warranty. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
