Dakota Digital LED Tail Lights LAT-NR221 Installation Instructions

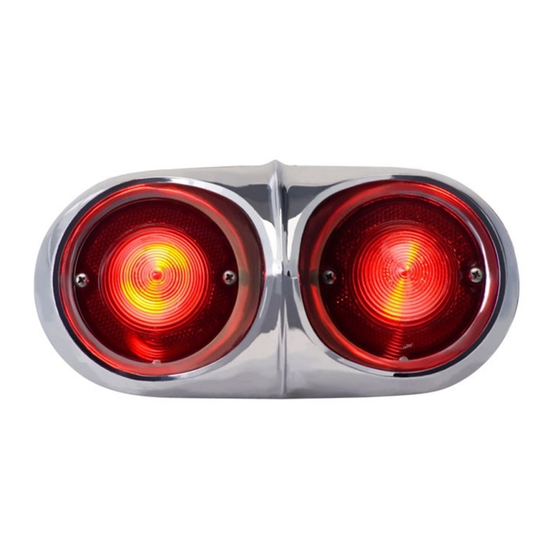

Led tail lights for 1958 chevy bel air/biscayne and 1961-1967 corvette

MAN#650209

Kit Includes:

1. Remove the two screws and tail light lens.

2. Remove the light bulb.

3. Push and twist to remove the plastic wire socket from the back side of the housing.

4. Now is a good time to clean the lens and housing. If lenses are in bad shape a new set is

recommended.

5. Remove the nut and round metal spacer from the back of the new LED assembly.

6. Insert the new LED assembly through the hole where the original bulb and connector were.

Gently pull the wires through the opening to avoid damaging the wire insulation.

INSTALLATION INSTRUCTIONS

LAT-NR221

LED Tail Lights for 1958 Chevy Bel Air/Biscayne

and 1961-1967 Corvette

MAN#650209

Table of Contents

Do you have a question about the LED Tail Lights LAT-NR221 and is the answer not in the manual?

Page 1 MAN#650209 Kit Includes: Installation: 1. Remove the two screws and tail light lens. 2. Remove the light bulb. 3. Push and twist to remove the plastic wire socket from the back side of the housing. 4. Now is a good time to clean the lens and housing. If lenses are in bad shape a new set is recommended.
Page 2 If you are replacing only the rear turn signals you should be able to use a heavy duty electronic flasher from your local parts store. If you are replacing both front and rear or do not have front bulbs you will need a no-load flasher, Dakota Digital part number LAT-NLF.
Page 3: Service And Repair
This Warranty is in lieu of all other expressed warranties or liabilities. Any implied warranties, including any implied warranty of merchantability, shall be limited to the duration of this written warranty. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
