OLIMEX MOD-IO User Manual page 12

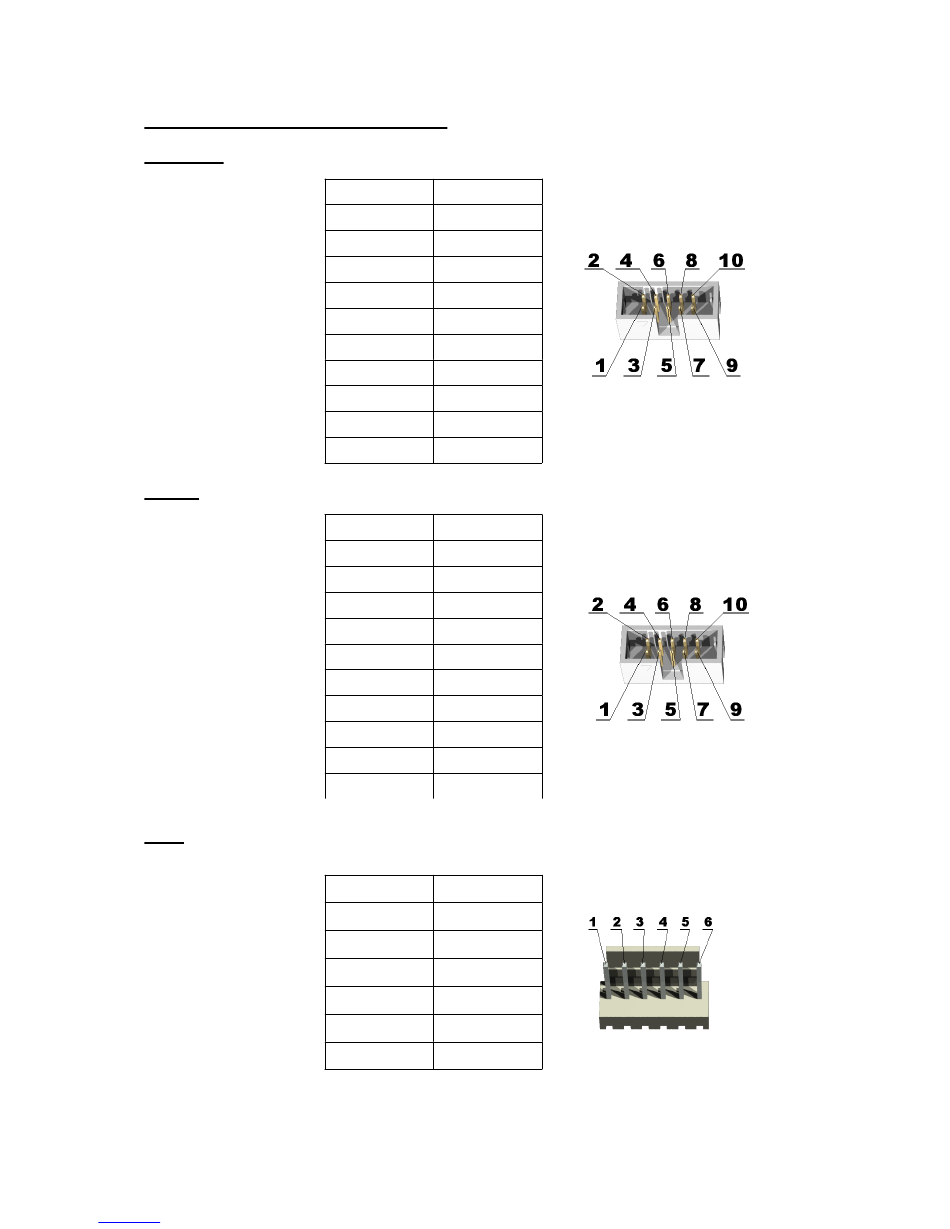

CONNECTOR DESCRIPTIONS
AVRISP
JTAG
EXT
Downloaded from Elcodis.com electronic components distributor
Pin # Signal Name
1 MOSI
2 3.3V
3 NC
4 GND
5 RST
6 GND
7 SCK
8 GND
9 MISO
10 GND
Pin # Signal Name
1 TCK
2 GND
3 TDO
4 3.3V
5 TMS
6 RST
7 3.3V
8 NC
9 TDI
10 GND
Pin # Signal Name
1 PD7
2 PD6
3 PD5
4 PD4
5 3.3V
6 GND
