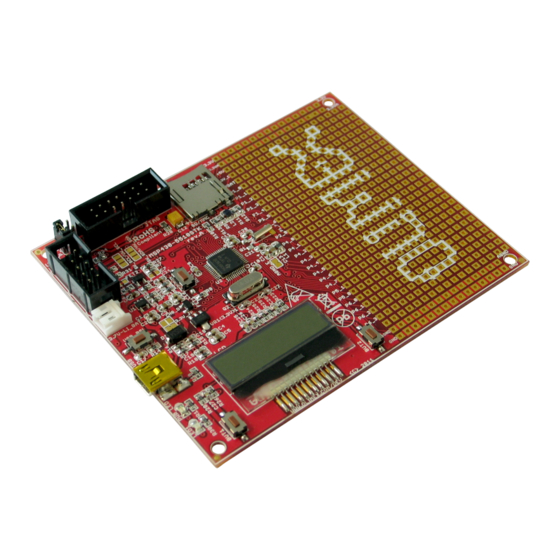

MSP430-5510STK development board
USER'S MANUAL
Revision D, September 2013
Designed by OLIMEX Ltd, 2011
All boards produced by Olimex LTD are ROHS compliant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSP430-5510STK and is the answer not in the manual?

Questions and answers

Summary of Contents for OLIMEX MSP430-5510STK

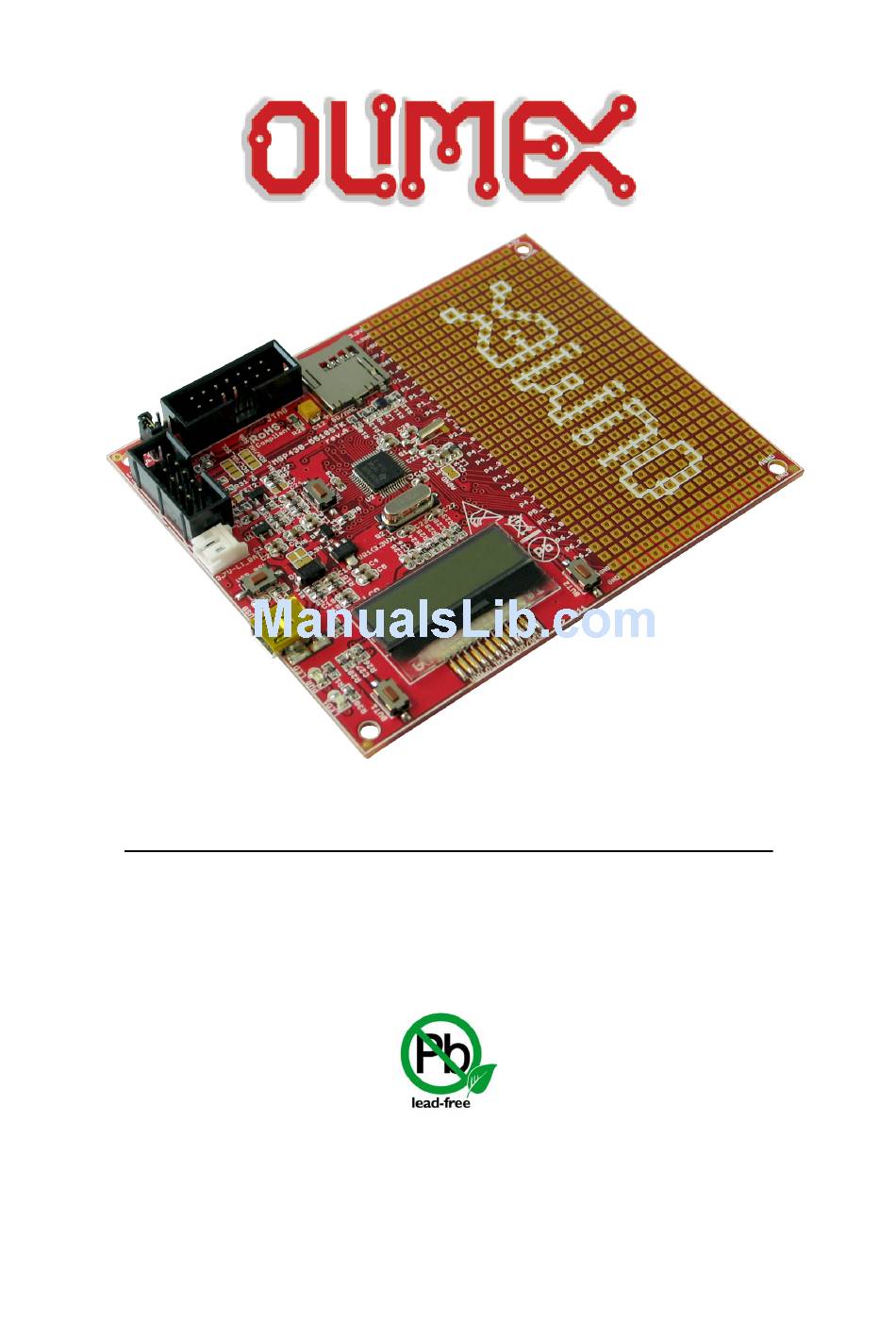

  • Page 1 MSP430-5510STK development board USER’S MANUAL Revision D, September 2013 Designed by OLIMEX Ltd, 2011 All boards produced by Olimex LTD are ROHS compliant...
  • Page 2 This document is intended only to assist the reader in the use of the product. OLIMEX Ltd. shall not be liable for any loss or damage arising from the use of any information in this document or any error or omission in such information or any incorrect use of the product.
  • Page 3: Table Of Contents

    OLIMEX© 2013 MSP430-5510STK user's manual Table of Contents CHAPTER 1: OVERVIEW..................5 1. Introduction to the chapter.......................5 Features.............................5 Organization..........................5 CHAPTER 2: SETTING UP THE MSP430-5510STK BOARD......7 2. Introduction to the chapter.......................7 2.1 Electrostatic warning.......................7 Requirements...........................7 2.3 Powering the board........................7 2.4 Prebuilt software........................8...
  • Page 4 OLIMEX© 2013 MSP430-5510STK user's manual 8.1 Eagle schematic........................19 8.2 Physical dimensions.......................21 CHAPTER 9: REVISION HISTORY..............22 9. Introduction to the chapter.....................22 9.1 Document revision.........................22 9.2 Web page of your device......................23 9.3 Product support........................24 Page 4 of 24...
  • Page 5: Chapter 1: Overview

    Thank you for choosing the MSP430-5510STK development board from Olimex! This document provides a User’s Guide for the Olimex MSP430-5510STK development board. As an overview, this chapter gives the scope of this document and lists the board’s features. The document’s organization is then detailed.
  • Page 6 OLIMEX© 2013 MSP430-5510STK user's manual – Chapter 6 covers the connector pinout, peripherals and jumper description – Chapter 7 shows the processor diagram and memory map – Chapter 8 provides the schematics – Chapter 9 contains the revision history Page 6 of 24...
  • Page 7: Chapter 2: Setting Up The Msp430-5510Stk Board

    2.1 Electrostatic warning MSP430-5510STK is shipped in a protective anti-static package. The board must not be exposed to high electrostatic potentials. A grounding strap or similar protective device should be worn when handling the board. Avoid touching the component pins or any other metallic element.
  • Page 8: Prebuilt Software

    2.4 Prebuilt software On powering the board via the USB the PWR LED should turn on. The LED1 should blink green and the LCD should show the message: “OLIMEX”. 2.5 Bootloader mode To enter bootloader mode press USB_BSL button and then plug the board. You will also need the correct bootloader software which is available at Texas Instruments web site in the USB Developer Package.
  • Page 9: Chapter 3: Msp430-5510Stk Board Description

    3. Introduction to the chapter Here you get acquainted with the main parts of the board. Note the names used on the board differ from the names used to describe them. For the actual names check the MSP430-5510STK board itself.
  • Page 10: Chapter 4: The Msp430F5510 Microcontroller

    CHAPTER 4: THE MSP430F5510 MICROCONTROLLER 4. Introduction to the chapter In this chapter is located the information about the heart of MSP430-5510STK – its microcontroller. The information is a modified version of the datasheet provided by its manufacturers. 4.1 The microcontroller Main processors features: Low Supply-Voltage Range, 1.8 V to 3.6 V...
  • Page 11: Chapter 5 Control Circuity

    5. Introduction to the chapter Here you can find information about reset circuit, power circuit and quartz crystal locations. 5.1 Reset MSP430-5510STK reset circuit includes R7 (33 KΩ), R8(330 Ω), MSP430F5510 pin 48 (RST/NMI/SBWTTDIO) and a RESET button. 5.2 Clocks Real time clock (RTC) Q1 is connected to pins 8 and 9 of the processor.
  • Page 12: Chapter 6: Hardware

    OLIMEX© 2013 MSP430-5510STK user's manual CHAPTER 6: HARDWARE 6. Introduction to the chapter In this chapter are presented the connectors that can be found on the board all together with their pinout. Proto area is shown. Jumpers functions are described. Notes and info on specific peripherals are presented.
  • Page 13: Uext

    OLIMEX© 2013 MSP430-5510STK user's manual 6.3 UEXT MSP430-5510STK board has UEXT connector and can interface Olimex's UEXT modules. For more information on UEXT please visit: https://www.olimex.com/Products/Modules/UEXT/ Pin # Signal name +3.3V SOMI SIMO Page 13 of 24...
  • Page 14: Pads On The Proto Area

    OLIMEX© 2013 MSP430-5510STK user's manual 6.4 Pads on the proto area For your convenience the pads are named individually near each of them. Please take extra care about the numbering but consider that there might be offset. Pad name Signal 3.3V...
  • Page 15: Usb Mini Connector

    OLIMEX© 2013 MSP430-5510STK user's manual AGND Analog GND row of pads GND row of pads 6.5 USB mini connector Pin # Signal name Not connected 6.6 SD/MMC slot Pin # Signal name DAT2 DAT3/CS CMD/DI CLK/SCLK DAT0/DO DAT1 6.7 Jumper description P_OUT/P_IN This jumper controls power on pins 2 and 4 of the JTAG connector.
  • Page 16: Lcd Display

    OLIMEX© 2013 MSP430-5510STK user's manual 3.3V_JP If open open stops processor and proto area pads powering. Default state is closed. SW_SCL/HW_SCL; SW_SDA/HW_SDA These two jumpers control whether the SCL and SDA signals to be implemented on software or hardware level. When in position SW_SCL/SW_SDA software implementation.
  • Page 17: Additional Hardware Components

    OLIMEX© 2013 MSP430-5510STK user's manual 6.9 Additional hardware components The components below are mounted on MSP430-5510STK but are not discussed above. They are listed here for completeness: 2 buttons + RST button LED + power-on LED Page 17 of 24...
  • Page 18: Chapter 7: Memory And Block Diagram

    OLIMEX© 2013 MSP430-5510STK user's manual CHAPTER 7: MEMORY AND BLOCK DIAGRAM 7. Introduction to the chapter Below is located the block diagram of the processor and on the next page you can find a memory map for this family of processors. It is strongly recommended to refer to the original datasheet released by Texas Instruments for ones of higher quality.
  • Page 19: Chapter 8: Schematics

    8. Introduction to the chapter In this chapter are located the schematics describing logically and physically MSP430-5510STK. 8.1 Eagle schematic MSP430-5510STK schematic is visible for reference here. You can also find them on the web page for MSP430-5510STK at our site: https://www.olimex.com/Products/MSP430/Starter/MSP430- 5510STK/.
  • Page 20 OLIMEX© 2012 MSP430-5510STK user's manual RESET CIRCUIT POWER_SUPPLY 3.3V 3.3V_E 3.3V 0R(NA) 3.3V_E 3.3V CHG_D FET2 IRLML6402 #RST VR1(3.3V)1 open MCP17 00T -33 02E/MB 100k 1N5819/s4 STNB_E Battery Charger 330R FET1 VOUT 1uF/10V IRLM L6 402 NA(1nF/50V) RESET M CP 738 12T -42 0I/OT VBAT T 1107A-6_3.8_2.5...
  • Page 21: Physical Dimensions

    OLIMEX© 2013 MSP430-5510STK user's manual 8.2 Physical dimensions Note that all dimensions are in inches. Page 21 of 24...
  • Page 22: Chapter 9: Revision History

    Fixed external links Fixed errors about the powering options 7, 8, 13 Added info about the bootloader Fixed error about battery connector powering Updated the list of available Olimex debuggers 7, 8, 23,24 Few document style changes Updated “warranty and returns” page...
  • Page 23: Web Page Of Your Device

    MSP430-5510STK user's manual 9.2 Web page of your device The web page you can visit for more info on your device is https://www.olimex.com/Products/MSP430/Starter/MSP430-5510STK/. There you can find more info and some examples. ORDER CODES: MSP430-5510STK - completely assembled and tested MSP430-JTAG-TINY-V2 - mini emulator/programmer USB<->JTAG 14p with powering...
  • Page 24: Product Support

    All goods are checked before they are sent out. In the unlikely event that goods are faulty, they must be returned, to OLIMEX at the address listed on your order invoice. OLIMEX will not accept goods that have clearly been used more than the amount needed to evaluate their functionality.
