Dakota Digital LED Tail Lights LAT-NR330 Installation Instructions

Led tail lights for 1940-53 chevrolet pickup

Download this manual

MAN#650210

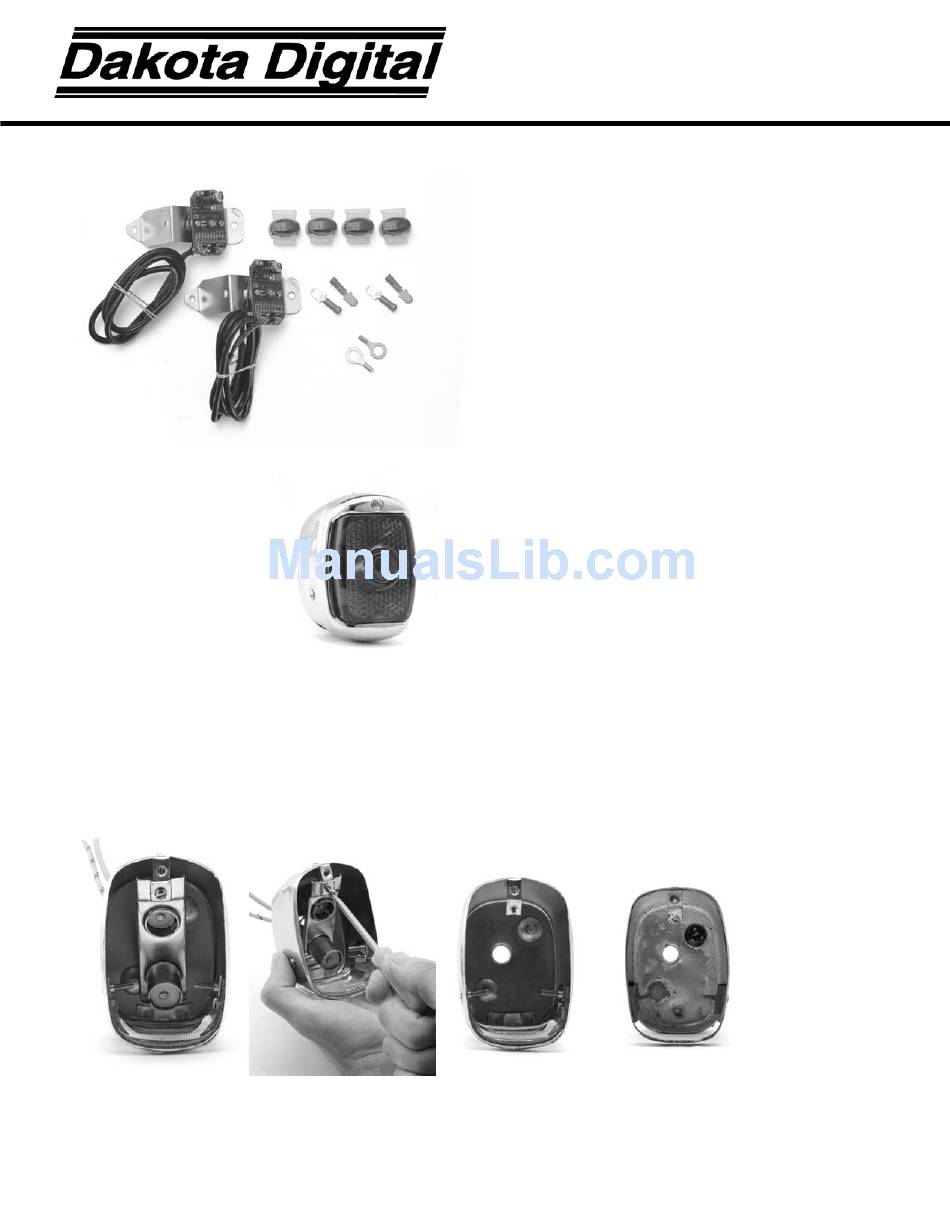

Kit includes:

Installation:

1. Remove the screw that holds the lens on and remove from the housing.

2. Remove the light bulb(s) from the socket(s).

3. Disconnect the tail light wires from the vehicle. (If there is no place to disconnect the wires, the

wires will need to be cut and will be spliced to the LED assembly later.)

4. Remove and save the screws that hold the bulb socket bracket in the housing and remove the

bracket from the housing. (Note on some reproduction housings there is only one screw

holding the bracket in place.) Pull the wires from the socket out of the hole in the back of the

tail light housing.

5. Now is a good time to clean the lenses and tail light housings. If the lenses are in poor

condition a replacement set is recommended.

40-53 Chevrolet Pickup

INSTALLATION INSTRUCTIONS

LAT-NR330

LED Tail Lights for 1940-53 Chevrolet Pickup

Page 1 MAN#650210 Kit includes: Installation: 40-53 Chevrolet Pickup 1. Remove the screw that holds the lens on and remove from the housing. 2. Remove the light bulb(s) from the socket(s). 3. Disconnect the tail light wires from the vehicle. (If there is no place to disconnect the wires, the wires will need to be cut and will be spliced to the LED assembly later.) 4.
Page 2 6. Work the cable from the LED assembly through the hole in the back of the tail light housing from inside the housing. 7. Place the LED assembly into the tail light housing. For original housings, a countersunk screw, nut and washer is provided for the bottom hole. The screw should go into the housing from the back and the washer and nut should hold the bracket against the back of the housing.
Page 3: Service And Repair
This Warranty is in lieu of all other expressed warranties or liabilities. Any implied warranties, including any implied warranty of merchantability, shall be limited to the duration of this written warranty. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
