Your safety and the safety of others is very important.
In order to help you make informed decisions about safety, we have provided
installation instructions and other information.
These instructions alert you to potential injury hazards.
Please do a job safety analysis before each task to identify potential hazards for your
situation and remove/protect against them.
You must use your own good judgment.
Read and understand all safety precautions and instructions before installing this
product.
THIS PRODUCT IS FOR OFFROAD USE ONLY. ALL LIABILITY FOR
INSTALLATION AND USE RESTS WITH THE OWNER.
CARELESS INSTALLATION AND OPERATION CAN RESULT IN SERIOUS INJURY
Failure to observe these instructions could lead to severe injury or death.
Always remove jewelry and wear eye protection.
Always use extreme caution when jacking up a vehicle for work. Set emergency brake
and use tire blocks. Locate and use the vehicle manufacturers designated lifting points.
Use jack stands.
Always use appropriate and adequate care in lifting components into place.
Always insure components will remain secure during installation and operation.
Always wear safety glasses when installing this kit. A drilling operation will cause
flying metal chips. Flying chips can cause serious eye injury.
Always use extreme caution when drilling on a vehicle. Thoroughly inspect the area to
be drilled (on both sides of material) prior to drilling, and relocate any objects that may
be damaged.
Always use extreme caution when cutting and trimming during fitting.
Always tighten all nuts and bolts securely per installation instructions.
Always route electrical cables carefully. Avoid moving parts, components that become
hot and rough or sharp edges.
Always insulate and protect all exposed wiring and electrical terminals.
Always perform regular inspections and maintenance on mounts and related hardware.
Copyright 2008 Fab Fours, Inc.
Product Number: K3250, K3251, K3252, R3250, R3251, R3252
SAFETY
OR EQUIPMENT DAMAGE.
Injury hazard
Page 1 of 12
Installation Instructions

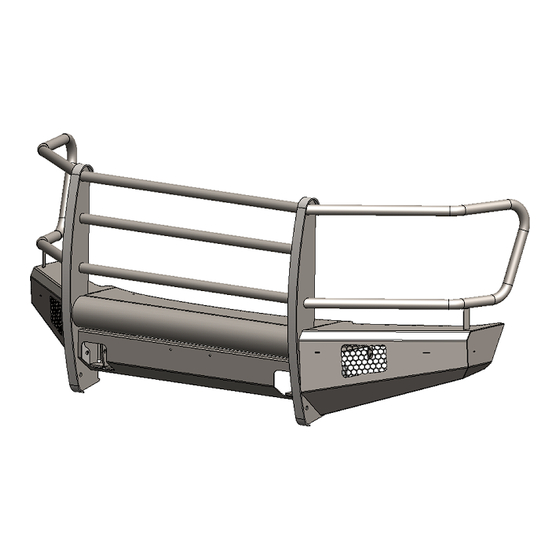

BS/BSE Front Bumper
Application: 2015 Ford F150
K/R326X_REV_A
Advertisement
Table of Contents
Related Manuals for Fab Fours Black Steel K3250
Summary of Contents for Fab Fours Black Steel K3250
- Page 1 Always insulate and protect all exposed wiring and electrical terminals. Always perform regular inspections and maintenance on mounts and related hardware. Page 1 of 12 K/R326X_REV_A Copyright 2008 Fab Fours, Inc.
- Page 2 Your front bumper is designed in 3-D from digitized data, CNC laser cut, fabricated, and powder coated… all in the U.S.A. Enjoy the fit and finish of a quality 2015+ Ford F150 Front Bumper from Fab Fours! Page 2 of 12 K/R326X_REV_A Copyright 2008 Fab Fours, Inc.
-
Page 3: Parts List
NOTE: SAVE ALL OEM PARTS UNTIL INSTALLATION IS COMPLETE! A. Using a flathead screwdriver, carefully remove center plastic piece, indicated by oval in the center of the OE bumper. Figure 1a Page 3 of 12 K/R326X_REV_A Copyright 2008 Fab Fours, Inc. - Page 4 (ref. fig. 2c). If front OEM bumper contains sonar (ref. fig. 2b), remove four bolts with 11 mm. If your bumper includes a sonar device, remove it now using a 12 point, 4mm socket. Unplug the device. Figure 2a Figure 2b Page 4 of 12 K/R326X_REV_A Copyright 2008 Fab Fours, Inc.
- Page 5 D. Pull rubber covers off the tow hooks. Use a 15 mm socket to remove the two bolts per side holding the tow hook in place. Figure 3 E. Slide out both nut strips from the frame channel when done. Page 5 of 12 K/R326X_REV_A Copyright 2008 Fab Fours, Inc.
- Page 6 Figure 4 (Louver w/ shroud cut away at base) Page 6 of 12 K/R326X_REV_A Copyright 2008 Fab Fours, Inc.
- Page 7 H. Remove fog lights from OEM bumper, unscrew with Phillips head screwdriver, refer to circle below, and pop sides out with flathead screwdriver to remove from fog light housing refer to squares below. Figure 6 Page 7 of 12 K/R326X_REV_A Copyright 2008 Fab Fours, Inc.
-
Page 8: Pre-Installation
C. Screw indicated by the yellow square will adjust fog light up and down to help center. (Ref. Figure 7). Figure 7 Optional: If installing winch and roller fairlead into bumper, do it at this time. Follow the winch manufacturer’s instructions for installation. Page 8 of 12 K/R326X_REV_A Copyright 2008 Fab Fours, Inc. -
Page 9: Front Bumper Installation
Due to limited space between bracket and frame, it is recommended that bolts are inserted through slots toward truck (ref. fig. 9). Page 9 of 12 K/R326X_REV_A Copyright 2008 Fab Fours, Inc. - Page 10 E. Starting with the top bolts fully tighten all fasteners between bumper and brackets F. Install the lower guard and tow hooks. Two bolts on each side for each item are required (Ref. 10a-b). Page 10 of 12 K/R326X_REV_A Copyright 2008 Fab Fours, Inc.
- Page 11 G. The fog light may be connected at this time. To do so, connect OEM Harness back to OEM fog lights and secure excess wiring to bumper. H. Enjoy your new Fab Fours front replacement bumper! Page 11 of 12 K/R326X_REV_A Copyright 2008 Fab Fours, Inc.
-
Page 12: Contact Information
After washing of the vehicle make sure to fully dry all surfaces Contact Information: Fab Fours Inc. Phone (866)-385-1905 1312 Camp Creek Rd (866)-574-1424 Lancaster, SC 29720 Email Support@fabfours.com More than expected… Better than expected. Page 12 of 12 K/R326X_REV_A Copyright 2008 Fab Fours, Inc.
