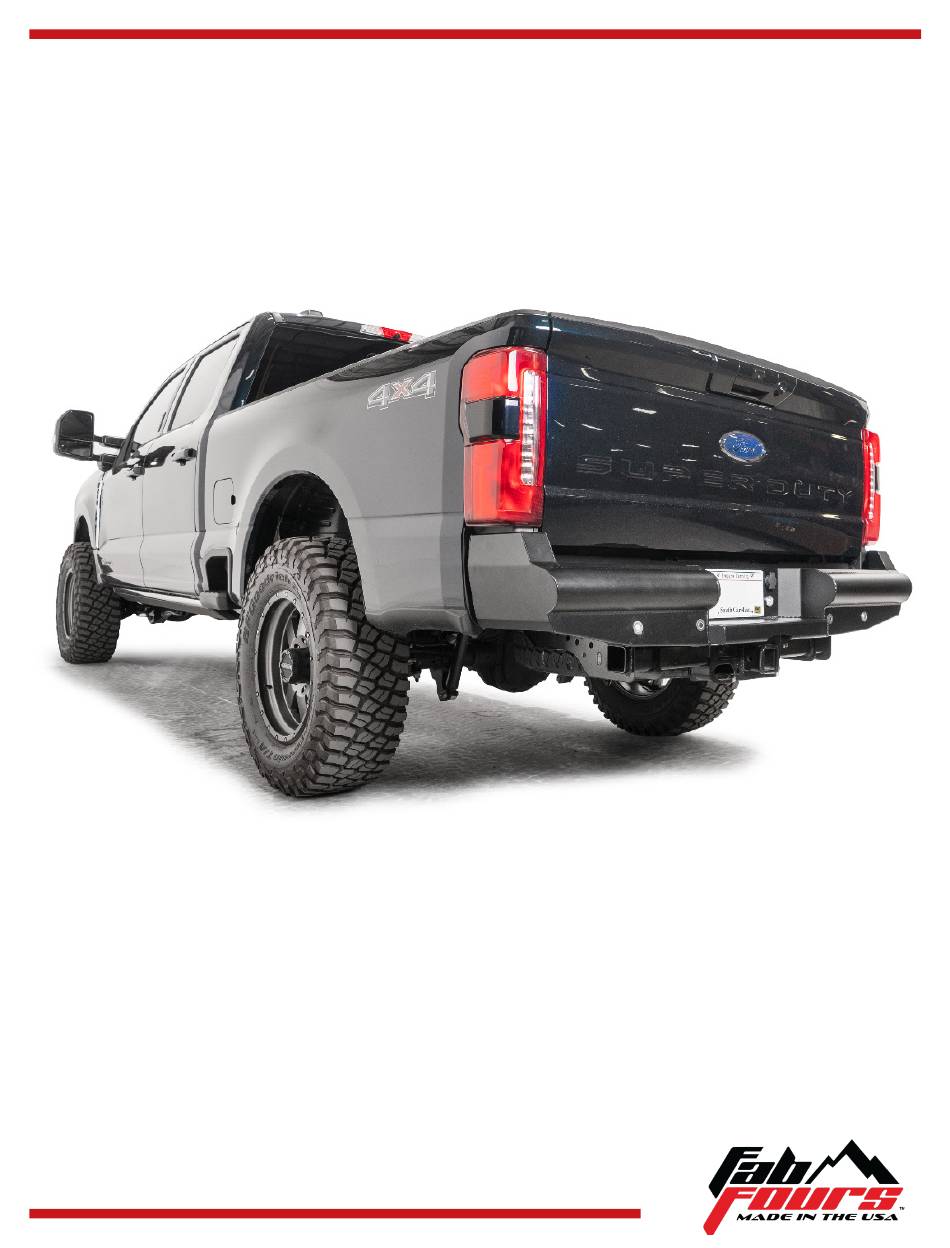

- Page 1 Installation manual BLACK STEEL & BLACK STEEL ELITE REAR BUMPER Product numberS: T5950 & U5950 Application: 2023 FORD SUPER DUTY...
- Page 2 Use own good judgment and take your time. WARNINGS • Failure to observe the following warnings • Fab Fours, Inc. only approves installing this and instructions provided in this manual product according to these written instructions could lead to severe injury and/or death.
-
Page 3: Safety / Disclaimer
SAFETY / DISCLAIMER TABLE OF CONTENTS A MESSAGE FROM THE OWNER GETTING STARTED PROVIDED MATERIAL INSTALLATION CONTACT... - Page 4 A message from the owner Fab Fours’ was born out of a passion for customizing vehicles and a love of the outdoors. Our engineering team uses the latest 3D design software to turn new product ideas into reality. In our factory, designs come to life with the combination of cutting edge technology for metal cutting and forming and an American workforce that puts its’...
-
Page 5: Getting Started
Getting started Before you begin the installation process of your new Fab Fours product, we suggest laying out all materials and parts on a pad or protective surface. Failure to fully account for all components before beginning installation may leave vehicle... -
Page 6: Tools Required
TOOLS REQUIRED • 21MM SOCKET WRENCH • 13MM SOCKET WRENCH • STRAIGHT SCREWDRIVER • PICK 23072 (T5950) – REAR BUMPER assistance We recommend two people perform the installation as items are heavy and may need to be held in place while installing. - Page 7 Hardware kit | 50076-HW IDENTIFICATION Component NUMBER Description 50076-HW 1/4" LICENSE PLATE NUT NYLON 50076-HW #8-32 3/4", STAINLESS CAP SCREW 50076-HW #8-32 NYLOCK, HEX NUT 50076-HW #8 FLAT WASHER ZINC 50076-HW 1 3/8"- GROMMET 50076-HW PLASTIC PLUG...
-
Page 8: Installation
INSTALLATION Locate trailer plug and main wire harness plug behind rear bumper and disconnect. (Figure 1) Figure 1 Using 13mm socket wrench, remove two (2) bolts located on either side of receiver hitch tube. (Figure 2) Figure 2... - Page 9 Using 21mm socket, unbolt OEM bolts from bumper (two per side) and remove bumper from truck. (Figure 3) Remove OEM bolt strip from OEM bumper by removing metal retainer washers. These will be used to mount new bumper (23072). NOTE: If truck is NOT equipped with parking sensors, skip to step 9. Remove wire harness from OEM bumper.
- Page 10 If installing a T5951 Black Steel, install rear backup lights into bumper by seating rubber light grommet into light cutouts then inserting LED backup lights into grommets until fully seated. Wire Lights as desired. (Figure 4) Figure 4 Use pick tool to remove silver clips from trailer plug. Insert plug into bumper. While holding in place, insert clips into plug and use straight screwdriver to bend clips until they are fully seated into plug (Figure 5&6) Figure 5 Figure 6...
- Page 11 Transfer spare tire lock from OEM bumper to new bumper. Install the provided tag light into the 1 ¼” hole in the center section. Ensure light is facing towards where license plate will go. Next use provided terminals to splice into both wires on factory tag light harness. (Figure 7) Figure 7 Plug in tag light (installed in step 10) to blue splices.
-
Page 12: Installation Complete
With assistance, line up bumper on truck and insert bolts into OEM bumper mounts. Thread on OEM nuts (Figure 8). Figure 8 Align bumper with truck and tighten nuts. INSTALLATION COMPLETE... -
Page 13: Contact Information
Contact information Fab Fours Inc. 2213 Industrial Park Road Lancaster, SC 29720 Phone: (866) 385-1905 Fax: 970-385-1914 Email: support@fabfours.com fabfours.com... - Page 14 “If you’re looking for more of the same, Then you’ve come to the wrong place.” - Greg Higgs...
