- Page 1 Installation manual Tilting Winch Mount Full Guard Front Product number: KC20-N3750 Application: 2020 Chevrolet Kodiak 4500-6500...
- Page 2 Use own good judgment and take your time. WARNINGS • Failure to observe the following warnings • Fab Fours, Inc. only approves installing this and instructions provided in this manual product according to these written instructions could lead to severe injury and/or death.
-
Page 3: Safety / Disclaimer
SAFETY / DISCLAIMER TABLE OF CONTENTS A MESSAGE FROM THE OWNER GETTING STARTED PROVIDED MATERIAL INSTALLATION CONTACT... - Page 4 A message from the owner Fab Fours’ was born out of a passion for customizing vehicles and a love of the outdoors. Our engineering team uses the latest 3D design software to turn new product ideas into reality. In our factory, designs come to life with the combination of cutting edge technology for metal cutting and forming and an American workforce that puts its’...
-
Page 5: Getting Started
Getting started Before you begin the installation process of your new Fab Fours product, we suggest laying out all materials and parts on a pad or protective surface. Failure to fully account for all components before beginning installation may leave vehicle... -
Page 6: Tools Required

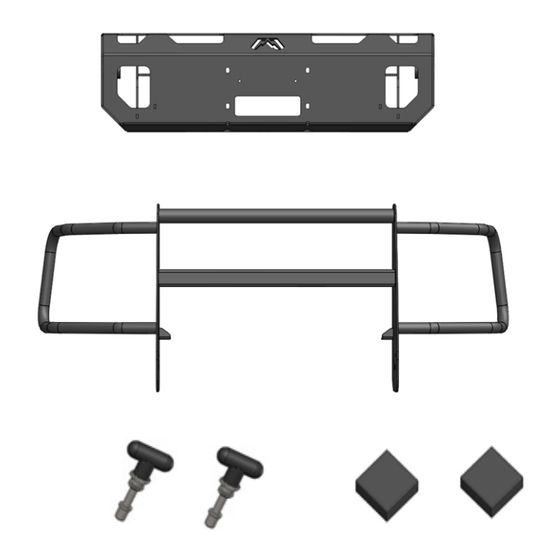

61782 x2 Assistance We recommend two people perform the installation as items Hardware kit | 50260 are heavy and may need to be held in place while installing. Fab Fours Component Identification Description 50260-HW 1/2” THRUST BEARING WASHER 50260-HW 1” SHORT NYLON SLEEVE BEARING... -
Page 7: Installation
INstallation NOTE: Save all OEM parts until installation is complete! NOTE: Figure 1 shows an exploded view of the assembled winch tray with all its components. Follow the provided steps below to complete the assembly process. (Figure 1) Figure 1 1. - Page 8 2. Press the long nylon sleeve bearing into the pivot cup from the outside of the bumper. Press the short nylon sleeve bearing in the same way from the inside of the bumper. (Figure 3) Figure 3 3. If truck is equipped with tow hooks: Removed the tow hooks from the truck using an 18mm socket.
- Page 9 4. Use a 24mm socket wrench to remove the three (3) bolts holding the OEM bumper to the frame. NOTE: the bumper will be loose at this point but should be stay on the frame. (Figure 5) Figure 5 5. With assistance, hold the winch tray up to the truck and use the OEM bolts removed during step 5 to install the winch tray to the frame.
- Page 10 7. With assistance, place the tube assembly on the winch tray and by lining up the pivot cup to the outer hole and installing the 1” yellow zinc bolt with washers and lock nut to fasten it in place. Use a 1 ½” wrench and socket to tighten the 1”...
- Page 11 9. Install the provided rubber bump stops underneath the tube assembly stopped plate by removing the adhesive backing and placing it on the winch tray. (Figure 9) Figure 9 10. Fully tighten the winch tray mounting hardware. 11. Test the pivoting action of the tube assembly.
-
Page 12: Contact Information
Contact information Fab Fours Inc. 2213 Industrial Park Road Lancaster, SC 29720 Phone: (866) 385-1905 Fax: 866-574-1423 Email: support@fabfours.com www.fabfours.com... - Page 13 “If you’re looking for more of the same, Then you’ve come to the wrong place.” - Greg Higgs...
