Related Manuals for Fab Fours FS17-RT4150
Summary of Contents for Fab Fours FS17-RT4150

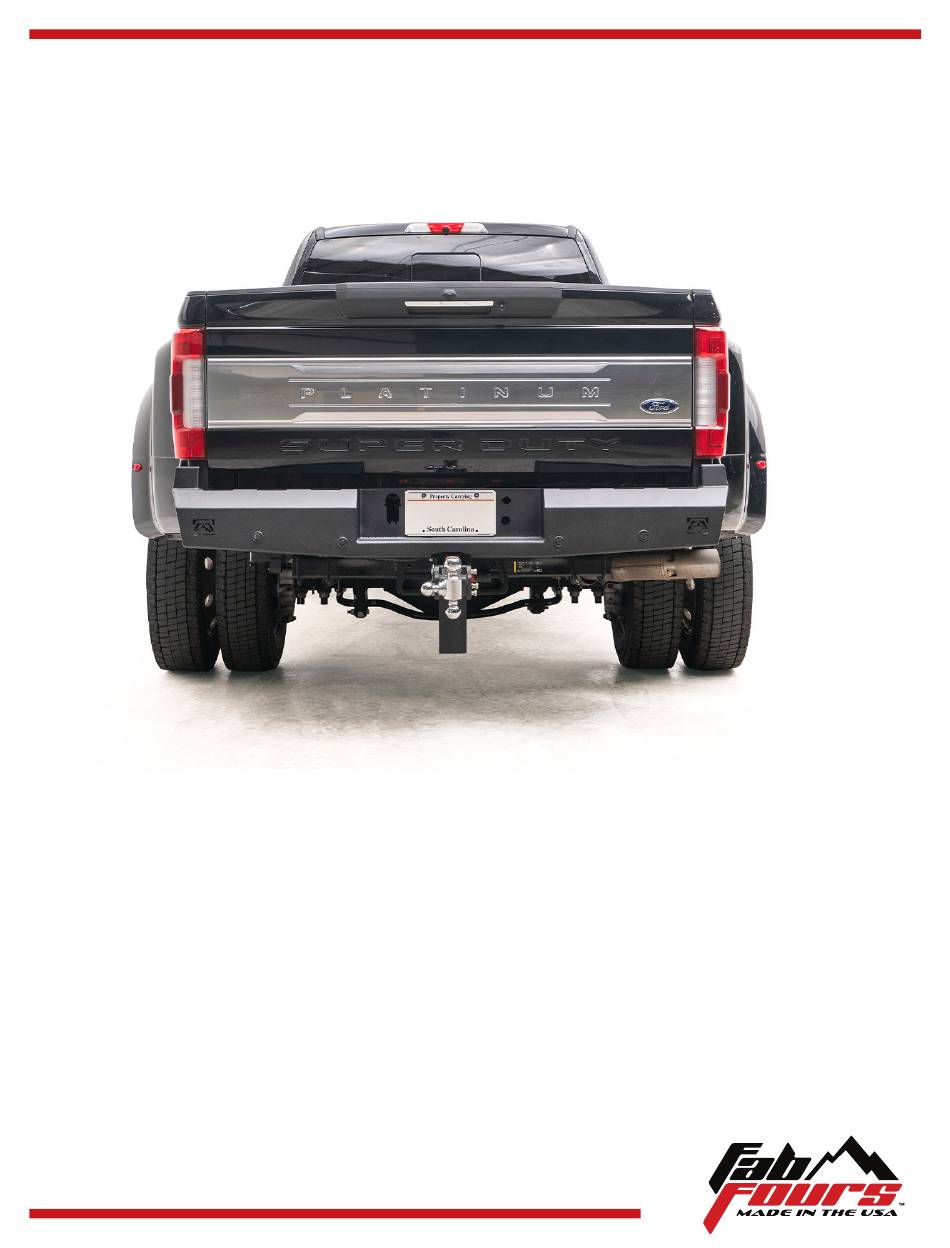

- Page 1 Installation manual Red Steel Rear Bumper Product number: FS17-RT4150 Application: 2017-19 Ford SD...
- Page 2 Use own good judgment and take your time. WARNINGS • Failure to observe the following warnings • Fab Fours, Inc. only approves installing this and instructions provided in this manual product according to these written instructions could lead to severe injury and/or death.
-
Page 3: Table Of Contents
SAFETY / DISCLAIMER TABLE OF CONTENTS A MESSAGE FROM THE OWNER GETTING STARTED PROVIDED MATERIAL DISASSEMBLY INSTALLATION CONTACT... -
Page 4: A Message From The Owner
A message from the owner Fab Fours’ was born out of a passion for customizing vehicles and a love of the outdoors. Our engineering team uses the latest 3D design software to turn new product ideas into reality. In our factory, designs come to life with the combination of cutting edge technology for metal cutting and forming and an American workforce that puts its’... -
Page 5: Getting Started
Getting started Before you begin the installation process of your new Fab Fours product, we suggest laying out all materials and parts on a pad or protective surface. Failure to fully account for all components before beginning installation may leave vehicle... -
Page 6: Provided Material
61675 50076-HW • Flat head screwdriver 22153 61672 Assistance Hardware kit | 50076 We recommend two people Fab Fours Component perform the installation as items are heavy and may need to be held Identification Description in place while installing. 50076-HW ½”... -
Page 7: Disassembly
Disassembly NOTE: Save all OEM parts until installation is complete! 1. Start by locating the trailer plug and tag light plug shown below. Unplug both of these. (Figure 1) 2. Next using a 13/16” deep socket, remove Figure 1 the four nuts holding the factory rear bumper brackets to the frame on each side of vehicle. -
Page 8: Installation
Do not connect the wiring harness from the bumper to the vehicle until the bumper is fully installed. 12. With assistance, lift your new Fab Fours bumper into place and line up the mounting bracket with OEM mounting location on the outside of the frame. - Page 9 13. Next loosely install factory hardware back into bumper mount. 14. Finally position bumper into desired location and tighten all the OEM hardware. 15. Reinstall license plate with provided plastic inserts. (Figure 7) 16. Reconnect the bumper wiring harness to the vehicle harness connector.
-
Page 10: Contact Information
Contact information Fab Fours Inc. 2213 Industrial Park Road Lancaster, SC 29720 Phone: (866) 385-1905 Fax: 866-574-1423 Email: support@fabfours.com www.fabfours.com... - Page 11 “If you’re looking for more of the same, Then you’ve come to the wrong place.” - Greg Higgs...
