BARRON EXITRONIX S900U Series Instruction Manual

Emergency lighting

Advertisement

Quick Links

S900U Series

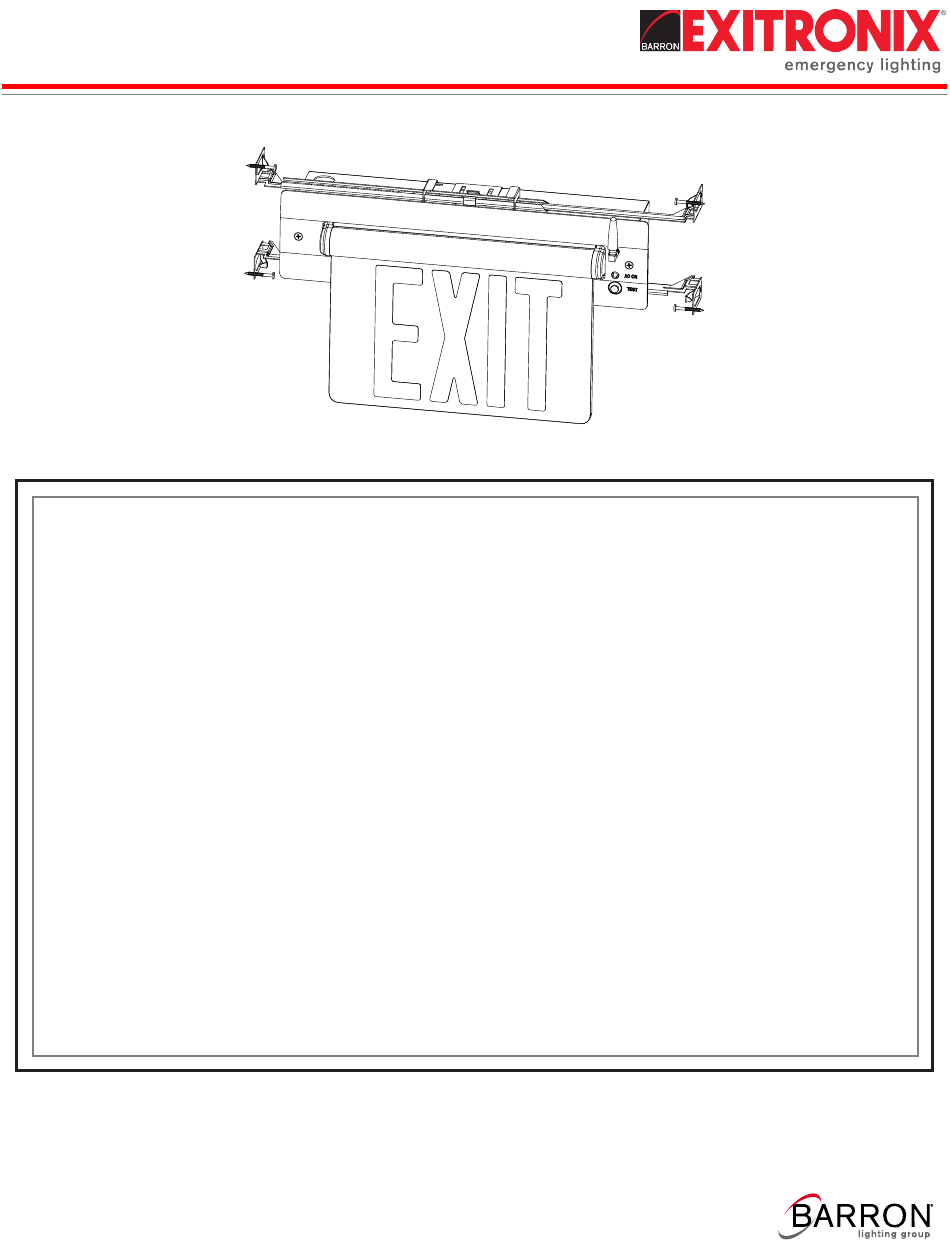

Installation Instructions
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
When using electrical equipment, basic safety precautions should always be followed including the following:
• DISCONNECT AC POWER SUPPLY BEFORE SERVICING.
• Installation and servicing of this equipment should be performed by qualified service personnel only.
• Ensure that the electrical wiring conforms to the National Electrical Code NEC® and local regulations
if applicable.
• Do not mount near gas or electrical heaters.
• Do not use outdoors.
• Equipment should be mounted in locations and at heights where it will not be readily subjected to tampering
by unauthorized personnel.
• The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
• Any modification or use of non-original components will void the warranty and product liability.
• Do not use this equipment for other than intended use.
• Allow battery to charge for 24 hours before first use.
• For use with metal enclosed wiring systems.
10070322 REV1 - 08/24
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS!
Technical Support
■ (623) 580-8943 ■ technicalsupport@barronltg.com
1
800-533-3948 www.barronltg.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the EXITRONIX S900U Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BARRON EXITRONIX S900U Series

  • Page 1 S900U Series Installation Instructions IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS. When using electrical equipment, basic safety precautions should always be followed including the following: • DISCONNECT AC POWER SUPPLY BEFORE SERVICING. • Installation and servicing of this equipment should be performed by qualified service personnel only. •...
  • Page 2: Installation Instructions

    S900U Series Installation Instructions Surface Ceiling and Wall Installation Fig. 1 1. Use a flat blade screwdriver to open front cover and Front cover connect battery connector. Feed the AC wires out of the housing. (Fig. 1) 2. Assemble canopy onto main body assembly by feeding AC wires through the canopy center hole and crossbar Mounting end cap center hole and attaching with (2) PM4*40 screws...
  • Page 3 S900U Series Installation Instructions Recessed Ceiling Installation Fig. 7 1. Use a flat blade screwdriver to open front cover and Front cover connect battery connector. Feed the AC wires out of the housing. (Fig. 7) 2. Remove junction box cover and mount junction box case on enclosure, use (2) TM4*8 screws (Fig.
  • Page 4: Operation

    S900U Series Installation Instructions Recessed Wall Installation Fig. 15 1. Reference steps 1-11 in recessed ceiling installation for recessed wall mounting. 2. Acrylic panel can rotate 90° to become a recessed wall installation. (Fig. 15) Chevron Placement (Fig. 16) Fig. 16 •...
  • Page 5 S900U Series Installation Instructions 2. Dual color LED lamp indicator shows the following status: • Green color: On / Ready blinking: Testing • Red color: (Service Alert) • Service Alert LED Code (Red color LED lamp indicator) One blink, 4 second pause Battery is not connected ●...
