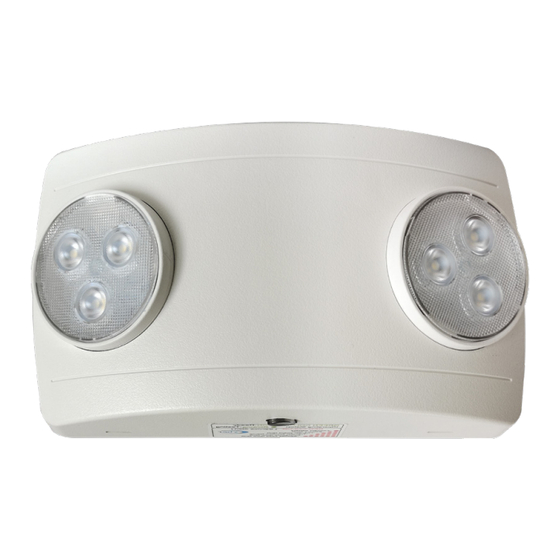

BARRON Exitronix LED-51 Series Manual

The Exitronix Tempo Pro family of LED emergency exit luminaires provide
a more complete, compact and powerful light offering with a higher
performance than most currently on the market.
FEATURES & BENEFITS
• Injection-molded UL 94 V-0 flame rated thermoplastic housing
• Wall or ceiling back mount
• Remote option provides 2W of remote capability (LED-52 only), compatible
with JLED, RL1-WP and RL52
• cULus Listed
• Suitable for Damp Locations
SPECIFICATIONS
Illumination: LED-51 standard with 1W LED lamp heads (2W total)
LED-52 standard with 1.5W high-performance LED
lamp heads (3W total)
Housing: UL 94 V-0 flame-retardant, corrosion-resistant
thermoplastic
Input: 120/277VAC input, 60Hz
Battery: Maintenance-free NiCad (LED-51/52) or
NiMH (LED-52-R2)
Operating Temp: 10°C to 40°C (50°F to 104°F)
Run Time: cULus Listed 90 minute emergency run time,
24 hour recharge time
Mounting: Universal knockout pattern on backplate for ceiling
or wall back mount, optional I-beam mounting bracket
is available
Finishes: Black or White
Options: G2 - Self-test/Self-diagnostics (LED-52 only)
R2 - Remote Capable (2W - LED-52 only), compatible
with JLED,
Certfications: cULus 924 Listed, meets or exceeds NEC
requirements and NFPA 101
Warranty: Any component that fails due to a manufacturing
defect is guaranteed for five years, with a three year
prorated warranty on the battery. The warranty does
not cover physical damage, abuse or instances of
uncontrollable natural forces. See the full Exitronix
warranty document for detailed information.
(Terms and conditions apply)
ON-CENTER SPACING (Multiple units mounted at a typical 7.5 foot height)
# of
Model
LED Lamps
LED-51 2
LED-52 2
Barron assumes no responsibility for local requirements or specific project variables.
This is a guideline to be used as a design aid, not as a guarantee of any code compliance.
Specifications are subject to change without notice.
Installation must be performed in accordance with
Barron Lighting Group installation instructions.
10800271 Rev 23
remote lamps
RL1-WP and RL52 remote lamps
3' Path,
6' Corridor 6' Corridor
34'
41'
Tempo Pro Ultracompact LED Emergency Lighting Unit
6' Path,
28'
35'
Page 1 of 3
LED-51/52 Series
2.19"
7.31"
41'
1 fc Average 1 fc Average
800.533.3948 • barronltg.com
4.25"
7.5'
3'
