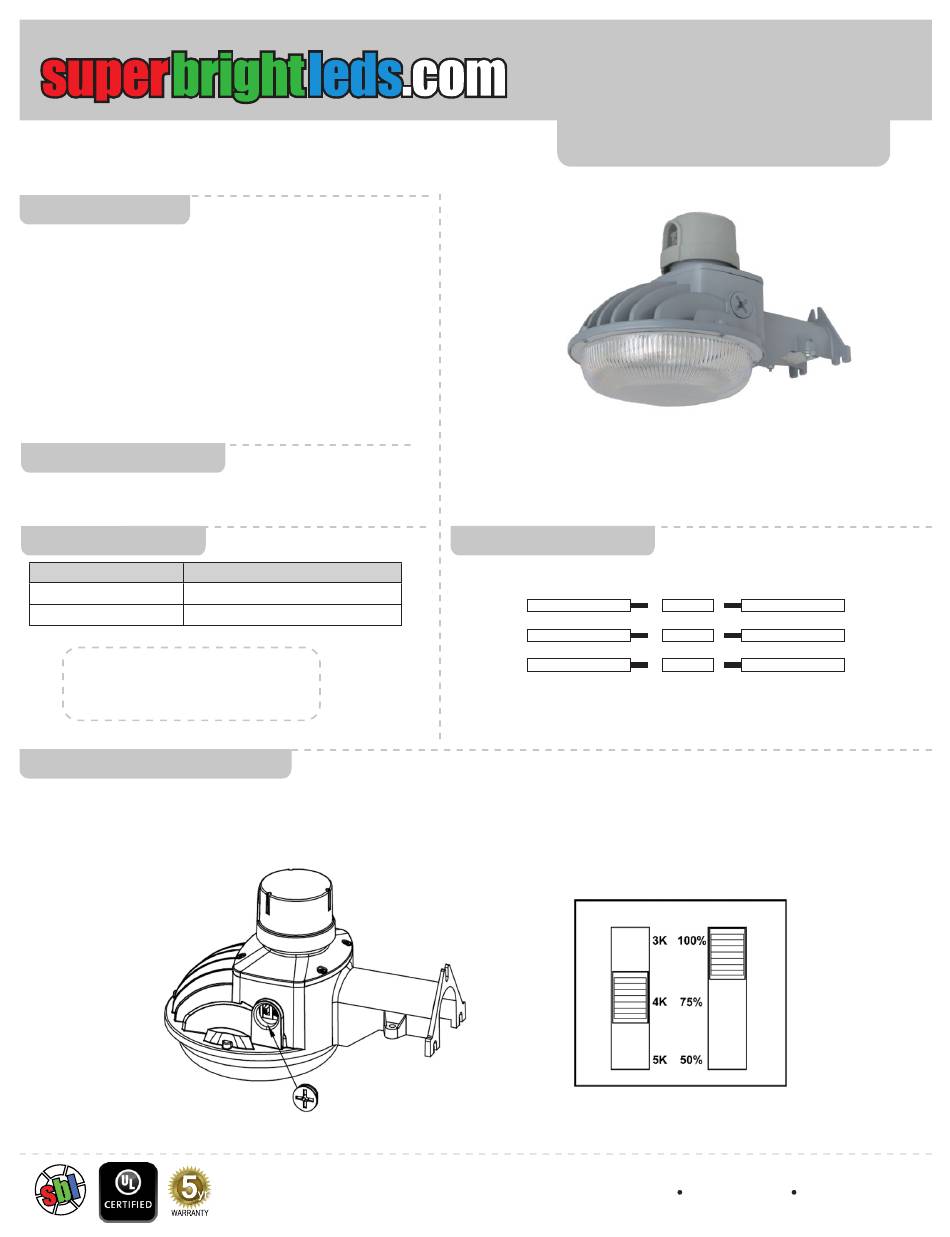

superbrightleds DDAL-SW3B35 User Manual

Important: Read all instructions prior to installation.
Selectable Wattage and CCT Dusk-to-Dawn Area Light
Safety and Notes
• Product should be installed by a certified electrician in
accordance with applicable national, state, and local
building and electrical codes.
• To reduce the risk of electric shock, ensure that the main
power source and circuit breakers are switched off before
performing any installation or wiring procedures.
• Avoid looking directly into the lamp when illuminated.
• Ensure all mounts are securely attached and will support
the weight of the fixture. Failure to properly support
the fixture may result in damage or injury, for which the
manufacturer does not assume responsibility.
Photocell Bypass
Included photocell can be bypassed by replacing it with
a compatible shorting cap.
Specifications
Model
Environmental Rating
Operating Temperature
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.
CCT and Wattage Selection
CCT and wattage are selected using the
switch inside the housing. Unscrew conduit
plug to access switch.
DDAL-SW3Bx
IP65
-40°–104° F (-40°–40° C)
Wiring Diagram
Line
Neutral
Ground
Dim (+)
Dim (-)
Rev Date: V1 06/12/2023
