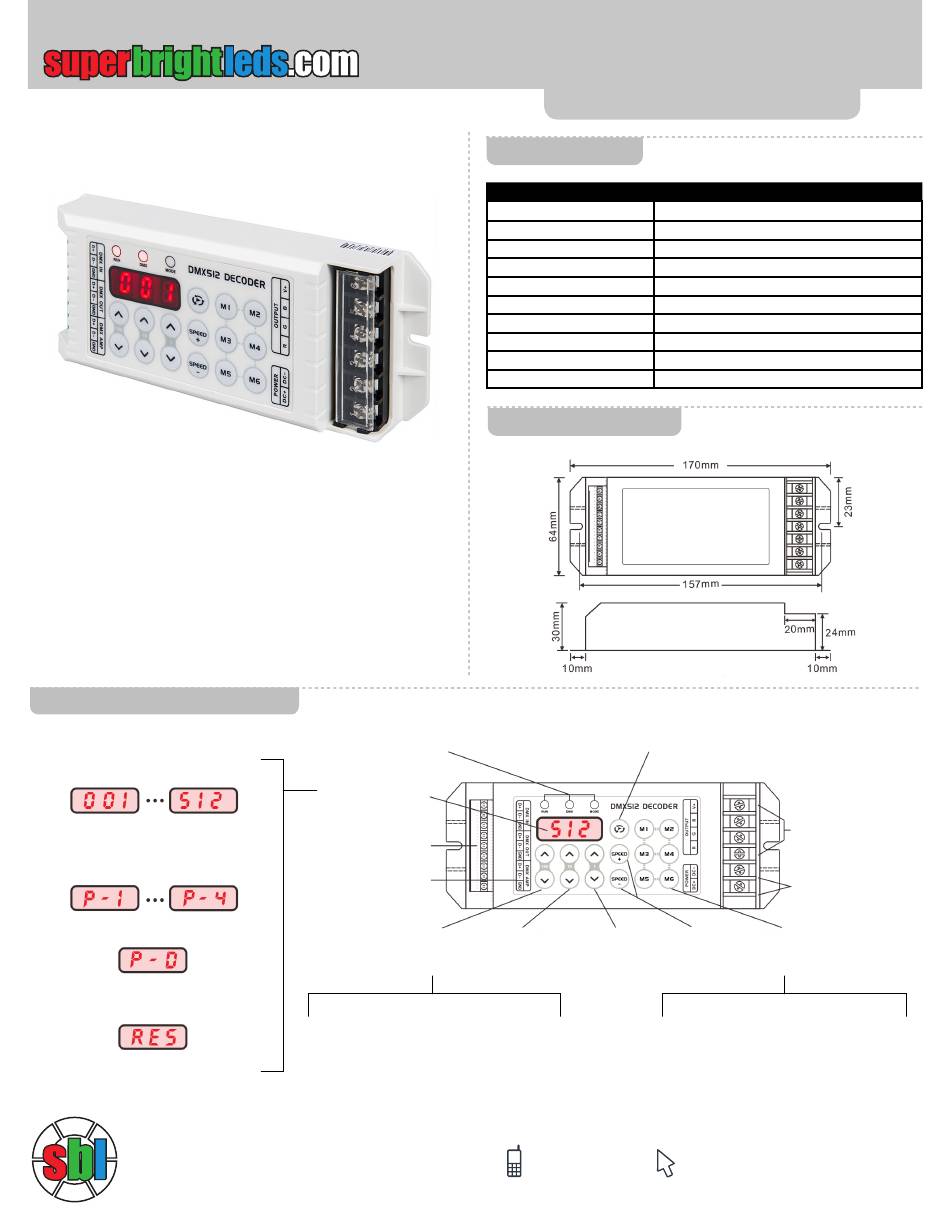

superbrightleds DMX-3CH-8A Instructional Sheet

Important: Read all instructions prior to installation.

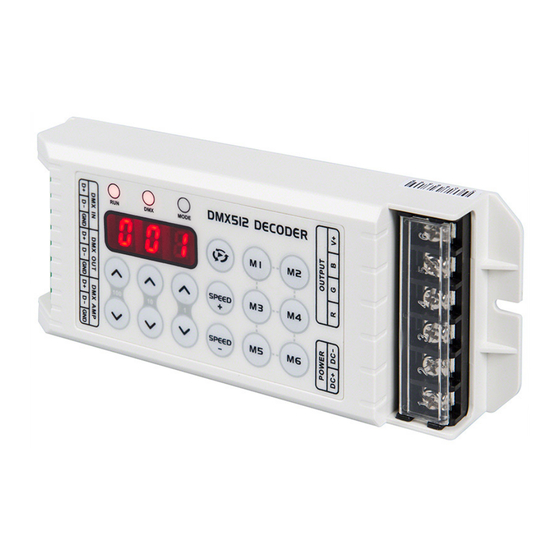

DMX Decoder for LED DMX Controllers
with Address Digital Display - 3 Channel, 8A
3 Channel DMX Controller/Decoder controls up to 3 different 12VDC LED
products or any one RGB LED Light Bar or Strip. Controller runs in stand
alone mode using mode, loop, and speed buttons. DMX address is easily
set using touch pads under display. Receives DMX-512 digital control
signals via 3 wire terminal strip connection. DMX decoding driver converts
universal DMX512/1990 digital signal to PWM signal, which can be
controlled by DMX512 console with 16-bit gray scale output per channel.
Maximum load 8 Amps per channel - 24 Amps total.

Operation Interface Instruction

Detailed Key Functions

DMX address
1-4 Dynamic self-test mode:
RGB jumping / 7 color jumping /
RGB fading / 7 color fading
Play DIY Dynamic mode
Recovery parameter:
Press "100+"key and "100-" key at same time
4400 Earth City Expy, St. Louis MO 63045
DMX signal/DMX mode/
Testing mode indicaror light
Digital LED display
DMX signal port
Inside DMX signal
amplifier
Address values
hundreds of
digits+/-
Setting the hundreds for DMX address(0-5)
Setting 4 kinds of self-testing dynamic modes
when continue to add/subtract (6-9, display P1-P4)
*
Under DMX Decoder Mode,the DMX indicator light is on,the running lights flash quickly if there is input DMX signal.
Under Self-testing Mode or Editting Dynamic Effect Mode,the MODE indicator light is on.
Instructional Sheet
Part Number:
DMX-3CH-8A

Technical Specs

DMX-3CH-8A
Input signal DMX512
Input voltage DC5V~DC24V
Max current load 8A x3CH Max 24A
Max power load 120W/288W/576W(5V/12V/24V)
Gray scale level 256 levels/CH
Dimming range 0~100%
Working temperature -30˚C~55˚C
Dimension L170×W64×H30mm
Package Size L172×W66×H34mm
Weight (G.W) 210

Product dimension

Mode changing button displays the memory
color of M1-M6: JUMP/SMOOTH/FLASH/GRADUAL
(Other function: long press to turn on/off buzzer)
Address values Address values
ten's place+/- unit's place+/-
866-590-3533
LED output
Power input
Speed+/- DMX console
color save
button
(Short press to return to saved color. Long
press to remember the current RGB data of
DMX Console)
