Thor Broadcast H-SOARTAN-4 Quick Setup Manual

Advertisement

Quick Links

H-SPARTAN-4

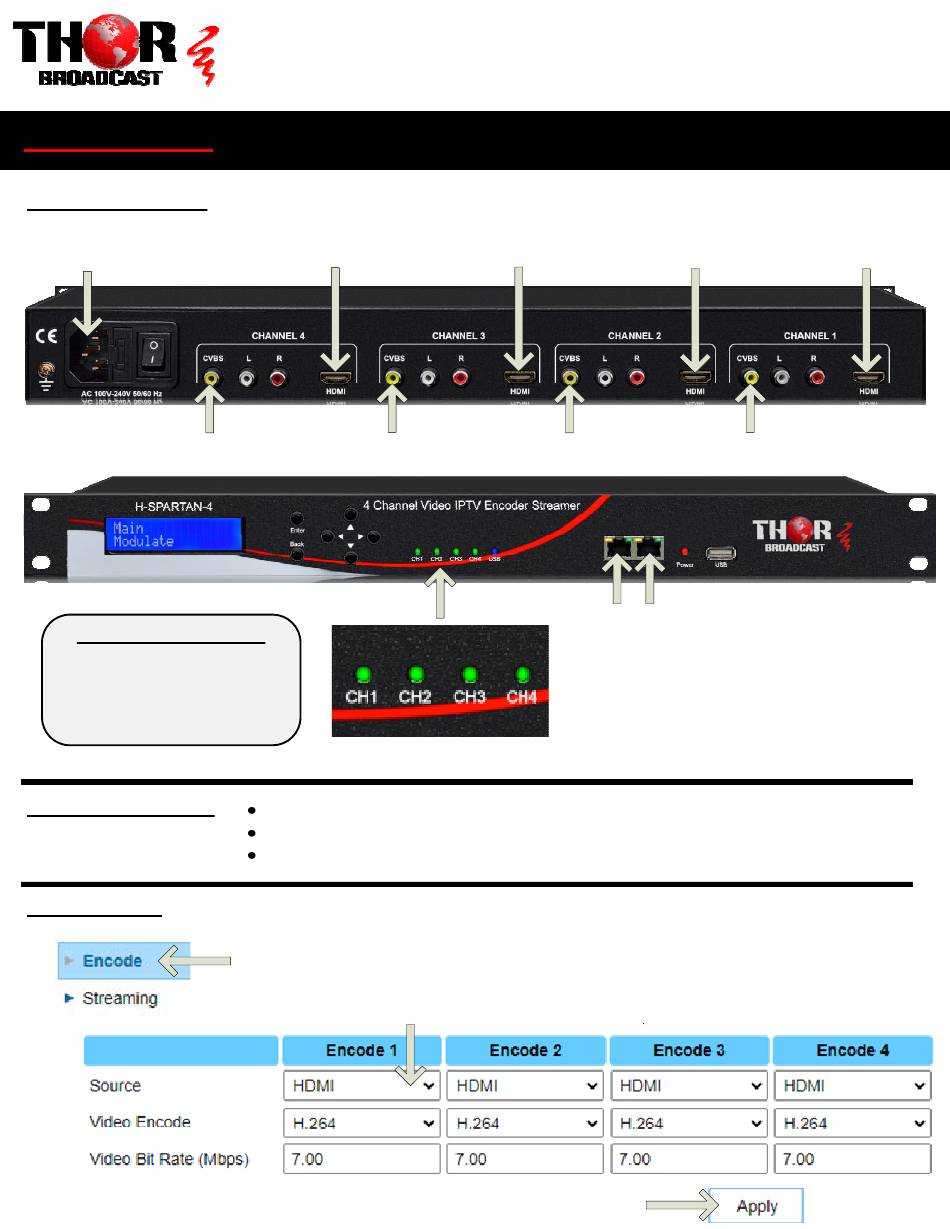

Step 1: Connections
Connect power supply
CVBS4
LED Input Indicators:
Solid = Connected
Blinking = Disconnected
Green = CVBS
Blue = HDMI
Step 2: Login to NMS
Step 3: Encode
https://thorbroadcast.com
HDMI4
CVBS3
Connect the NMS port to your PC using an ethernet cable
Open web browser and go to http://192.168.0.188
Login/Password: admin/0000
Select "Encode" from the main menu
Choose Source HDMI or CVBS for Encode 1-4
Click "Apply" to save changes
800-521-8467
HDMI3
HDMI2
CVBS2
DATA NMS
sales@thorfiber.com
Quick Setup Guide
HDMI1
CVBS1
