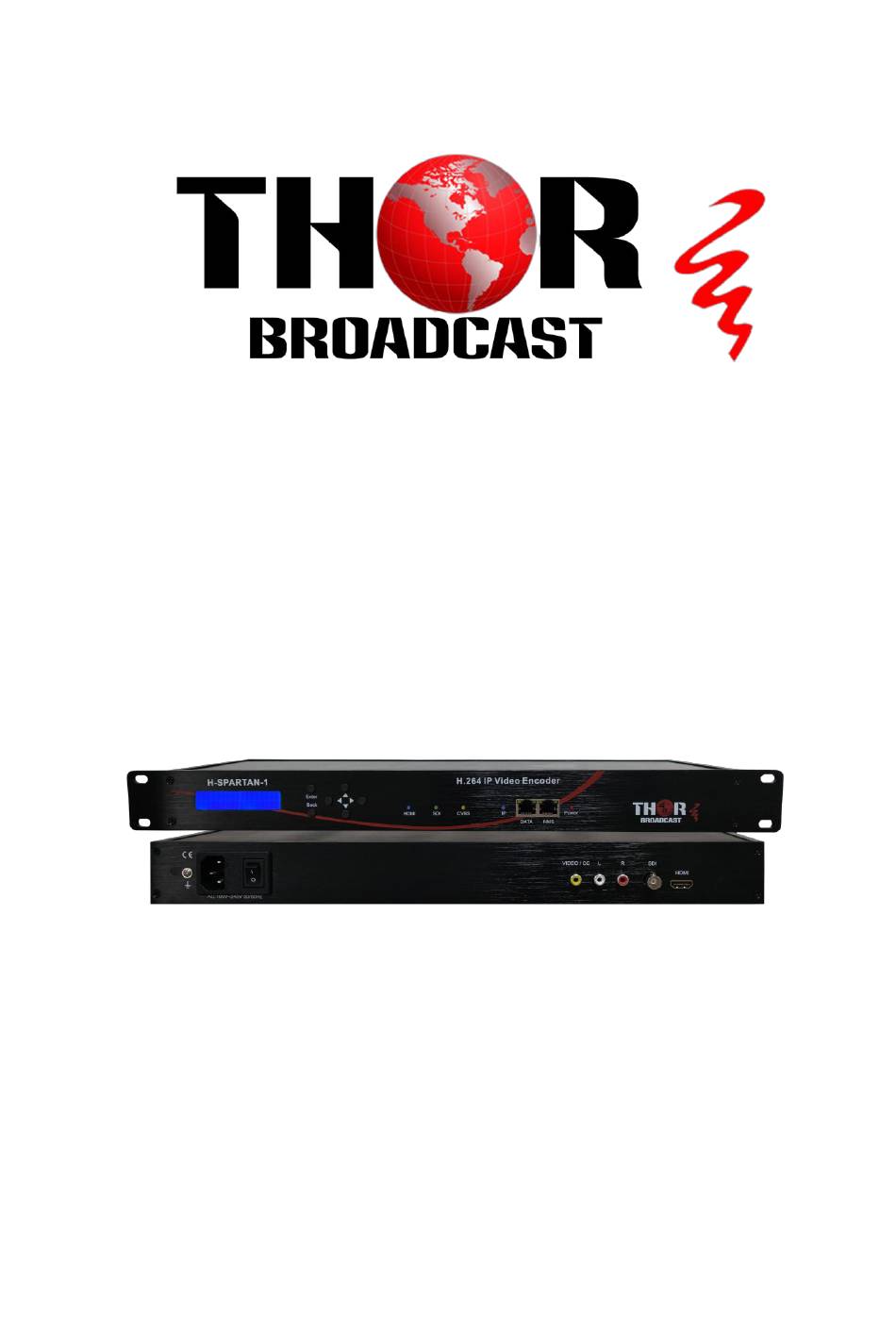

  • Page 1 H.264 (HDMI/ SDI/ CVBS) IP Video Encoder H-SPARTAN-1...

  • Page 2: Technical Specifications

    TECHNICAL SPECIFICATIONS Interfaces Input 1×HDMI, 1×SDI, 1×CVBS Output UDP/RTP(Unicast/Multicast), HLS, HTTP, RTMP, RTMP Live (Youtube Live stream) LCD with 6 keys & 1 x RJ45 (Web NMS) Control Network Interface Management 1x1000Base-T Ethernet(RJ 45) Data 1x1000Base-T Ethernet(RJ 45) Protocol IEEE 802.3 Ethernet Video Encoding Format HD: H.264 AVC/HP@L4.0...
  • Page 3 Application Example - Point to Point www.thorbroadcast.com sales@thorfiber.com 800-521-8467...
  • Page 4 LED Indicators functionality table HDMI: Blue SDI: Green CVBS: Yellow IP: Blue HDMI LED: SDI LED: CVBS LED: IP Output LED: Blue Blue Green Yellow Blue light Plug in and Blue light blinks Encoder TS Input Blue light (The settings of DATA IP HDMI and LAN are different)* source...

  • Page 5: Nms Connection

    WEB NMS ( default IP 192.168.0.188 / admin/0000) The device is configured using NMS. Access to the NMS is via the network connection Set the Static Computer IP address We must choose the static IP address according to the default gateway address. The first three numbers must be the same (192.168.0.x in the example).

  • Page 6: Encoder Setup

    Model Name, Serial Number, Firmware version, Boot Version, Encoder Version, Data MAC Address, NMS MAC Address. 4. Encoder Setup Use the Setting Setup Page to set the Encoder setup. You can change the program name, or choose the signal source is HDMI or CVBS or SDI. You can also change the Viedo Encoder (HDMI / SDI Only H.264/ CVBS can chose H.264/mpeg)You can also change the Source, Video Encoder,Video Bitrate,Rate Mode, Audio Encoder, Audio Bitrate, CC Enable, H.264 Profile, H.264 Level, GOP Structure, PMT PID, Video PID, Audio PID, Service provider service...
  • Page 7 www.thorbroadcast.com sales@thorfiber.com 800-521-8467...

  • Page 8: Streaming Setup

    5. Streaming Setup Use the Streaming Setup Page to setup your required streaming method. You can choose UDP/RTP (unicast and multicast), HLS, HTTP, RTMP, RTMP Live.When choosing HLS/HTTP/RTMP/RTMP Live, the Video Bitrate is recommended to be below 4Mbps live stream on YouTube or Facebook Step1.

  • Page 9: Network Setup

    6. Network Setup The Web Management default setting 192.168.0.188. 7. Password You can modify the user name and password. In the New password field, enter the new password you want to change, also the same password as the new password to confirm. www.thorbroadcast.com sales@thorfiber.com 800-521-8467...

  • Page 10: Update Page

    Update Page 9. Configuration Use the “Factory Reset” to reset configuration to factory default. Use the “Download Config” to saved device setting configuration setting to PC. Use the “Upload Config” to upload the file with pre-saved configuration settings to device. www.thorbroadcast.com sales@thorfiber.com 800-521-8467...
