Thor Broadcast H-IRD-V3-QAM Quick Setup Manual

Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
H-IRD-V3-QAM
This guide also applies to model: H-IRD-V3-QAM2
Step 1: Connect Power
RF IN
DATA
NMS
Step 2: Login to NMS
Step 3: Configure Tuners
https://thorbroadcast.com
Connect the NMS port to your PC using an ethernet cable
Open web browser and go to http://192.168.0.136
Login/Password: admin/admin
1). Select "Tuner" from the main menu
800-521-8467
Connect Included Power Supply
HDMI OUT
3). Select Modulation Standard
4). Select Frequency (See Chart)
5). Click "Apply"
Repeat these steps as needed
for units with additional tuners
sales@thorfiber.com
Quick Setup Guide
2). Click "Edit" button

Advertisement

loading
Need help?

Need help?

Do you have a question about the H-IRD-V3-QAM and is the answer not in the manual?

Questions and answers

Related Manuals for Thor Broadcast H-IRD-V3-QAM

Summary of Contents for Thor Broadcast H-IRD-V3-QAM

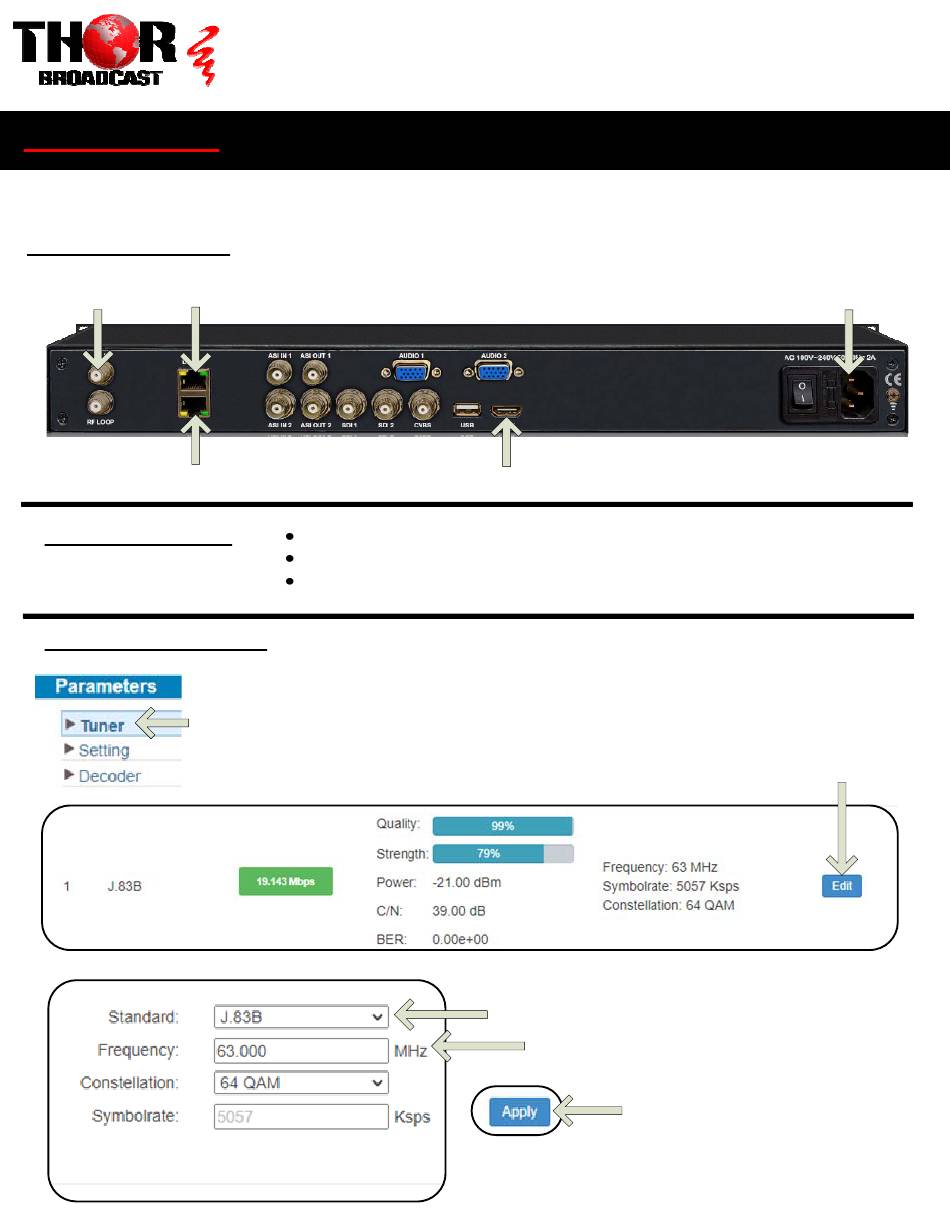

  • Page 1 800-521-8467 sales@thorfiber.com H-IRD-V3-QAM Quick Setup Guide This guide also applies to model: H-IRD-V3-QAM2 Step 1: Connect Power Connect Included Power Supply RF IN DATA HDMI OUT Connect the NMS port to your PC using an ethernet cable Step 2: Login to NMS Open web browser and go to http://192.168.0.136...
  • Page 2 Step 4: Setting Select “Setting” from the main menu 1). Click “Parse Program” 2). Check the box for the discovered program 3). Click “ ” button to move selected program to output 4). Click Program name for more program information Set desired Major/Minor Channel Numbers (Note: VCT must be...
  • Page 3 Step 5: Decoder Select “Decoder” from the main menu Select desired program Status light must be GREEN Click “Apply”...

  • Page 4: For Example

    Step 6: Output Select “Output” from the main menu Check box to enable VCT Insert Click “Apply” Check boxes to enable SPTS outputs Select desired program Status light must be GREEN Click “Apply” IMPORTANT: Streams must be accessed through the DATA port ACCESS THE STREAM USING THE APPROPRIATE IP ADDRESS &...
  • Page 5 Step 7: Save Configuration 1. Click “Configuration” 2. Click the “Save” tab 3. Press “Save config” button Scan for more Info: 4). Confirmation message will appear briefly until saving is complete. H-IRD-V3-QAM Quick Setup Guide https://thorbroadcast.com 800-521-8467 sales@thorfiber.com...
