Summary of Contents for Thor Broadcast H-MPEG2-H264-E2
Page 1

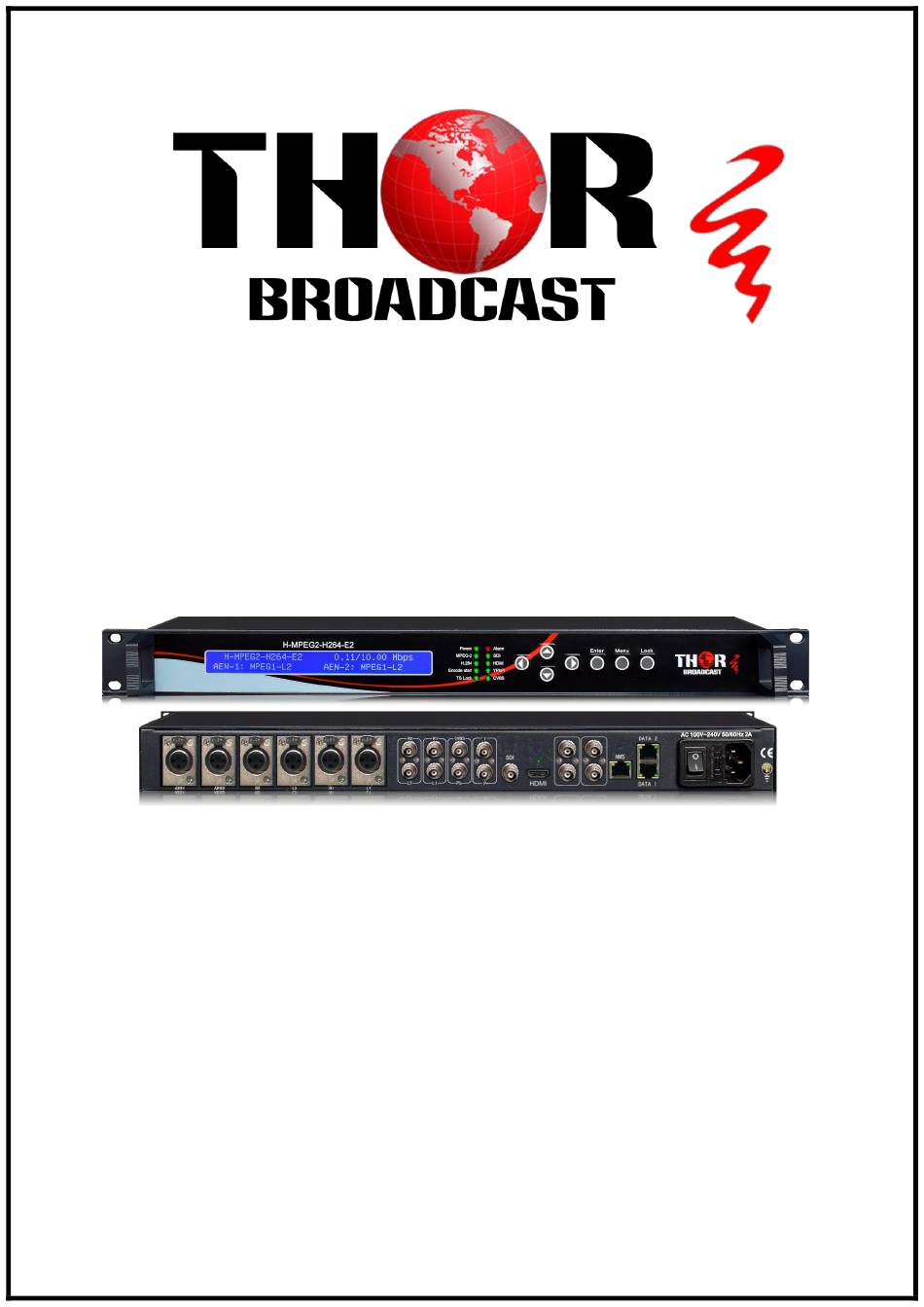

User Manual All Inputs IPTV Streaming and ASI HD Encoder 608/708 Captioning MPEG2/4 4:2:2 H-MPEG2-H264-E2...
Page 2
H-MPEG2-H264-E2 About This Manual Intended Audience This user manual has been written to help people who have to use, to integrate and to install the product. Some chapters require some prerequisite knowledge in electronics and especially in broadcast technologies and standards.

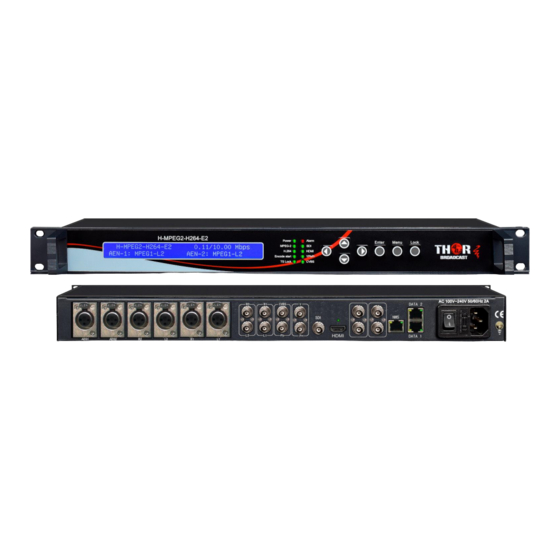

Chapter 1 Introduction 1.1 Product Overview H-MPEG2-H264-E2 Mpeg-2/ H.264 HD Encoder is the new broadcasting audio & video encoding device with powerful functionality. It is equipped with multiple video input interfaces (HDMI, SDI, YPbPr and CVBS) and audio input interfaces (AES, BNC and XLR) to make it possible to compatible with different signal sources.
Page 5
H-MPEG2-H264-E2 Inner Principle Chart Connecting Grouding Connecting Acquisition Installing Setting Running Wire and Signal Check Device Parameter Device Power cable Cord Tech Specifications 1×HDMI, 1×HD-SDI, 1×YPbPr and 1×CVBS(only for CC) Interface Input Output Interface Applicable Resolution 1920×1080p@60/59.94 1920×1080p@60, SDI, HDMI 1920×1080p@50...
H-MPEG2-H264-E2 Ethernet software upgrade 482mm×405mm×44.5mm (W × D × H) General Dimensions 0~45℃(Operation), -20~80℃(Storage) Temperature AC110V±10%, 50/60Hz; AC 220V±10%,50/60Hz Power Consumption 1.2 Appearance and Description Front Panel Illustration 4 5 6 ① LCD window ② Indicators ③ Up and down, left and right navigation buttons ④...
H-MPEG2-H264-E2 Chapter 2 Installation Guide This section is to explain the cautions the users must know in some case that possible injure may bring to users when it’s used or installed. For this reason, please read all details here and make in mind before installing or using the product.
H-MPEG2-H264-E2 1.2~1.5m and the distance against wall should be no less than 0.8m. Electric Isolation, Dust Free Volume resistivity ground anti-static material: ,Grounding current limiting resistance: 1M Machine Hall Floor 1X10 ~1X10 (Floor bearing should be greater than 450Kg/㎡) 5~40℃(sustainable ),0~45℃(short time),...
H-MPEG2-H264-E2 Chapter 3 Front Panel Operation H-MPEG2-H264-E2 front panel is user operation interface where users configure the device manually. The LCD is a 2-line * 40-character back-lit dot-matrix user interface with pushbuttons for UP, DOWN, LEFT, RIGHT, ENTER, MENU, and LOCK for front panel control.
Page 10
H-MPEG2-H264-E2 2 Encoder 2.1 Video 2.1.1 Interface *HDMI SDI Ypbpr *Mpeg2/H.264 2.1.2 Format 2.1.3 Aspect Ratio Auto 2.1.4 Field/Picture Enc *Auto Picture Field 2.1.5 Cache *On Off 2.1.6 CC Switch *On Off 2.1.7 Bitrate 14.0 (1-19.5Mbps) 2.1.8 Low Delay *Normal Manual Mode 1 Mode 2 2.1.9 DTS Delay...
Page 11
H-MPEG2-H264-E2 3.1.1 Date Enable *On Off 3.1.2 Null PKT Filter *On Off 3.1.3 Output IP 224.2.2.2 3 IP Stream DATA1 3.1.4 Output Port 2000 *UDP RTP/RTSP 3.1.5 Protocol 3.1.6 Packet Length 3.1.1 Date Enable *On Off DATA1 3.1.2 Null PKT Filter *On Off 3.1.3 Output IP...
User can not only use front panel to set configuration, but also control and set the configuration with a PC (Personal Computer) by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from the H-MPEG2-H264-E2’s IP address; otherwise, it would cause IP conflict.
Page 13
H-MPEG2-H264-E2 Figure-2 Parameter -> Encoder Click “Encoder” on the top column and it displays interface as Figure-3. User can set the Encoder parameters. Figure-3 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
Page 14
H-MPEG2-H264-E2 Figure-3 Parameter -> Encoder-> Video Setting Video input interface:HDMI,SDI, CVBS,YPbPr optional. Figure-3 Video Format Mpeg-2/H.264. Bitrate range: 2.5-19Mbps Figure-3 Aspect Ratio: SD Video input can choose Aspect Ratio from 4:3 and 16:9. HD Video input only can choose 16:9.
Page 15
64Kbps-320Kbp Figure-3 Closed Caption (CC): Note: H-MPEG2-H264-E2 supports CC from CVBS and SDI input. None: not to insert the CC into the output stream All: The device will automatically identify the Closed Caption Standard among 608B 608FLD1 608FLD2 and 708B.
Page 16
H-MPEG2-H264-E2 H-MPEG2-H264-E2 support video buffer which makes it free to switch video sources. If enable video buffer, the time of system latency will be raised about 100ms. Parameter -> TS config> Stream Select From the menu on left side of the webpage, clicking “TS Config”, it displays the interface where users can multiplex the programs from the encoder and ASI inputs.
Page 17
H-MPEG2-H264-E2 To select all the output programs To parse programs time limitation of parsing input programs Parameter -> TS config -> General From the TS Config menu on up side of the webpage, clicking “General”, it displays the interface where users can set Output Bitrate, Character Encoding and TDT/TOT/NIT tables.
Page 18
Figure-6 Parameter -> IP stream H-MPEG2-H264-E2 supports TS to output in IP format through the DATA1 (only one MPTS) or DATA2 port. The output programs information in MPTS. Clicking “IP Stream”, it displays the interface where to set IP out parameters (Figure-7).
Page 19
H-MPEG2-H264-E2 Figure-7 System -> Network Clicking “Network”, it displays the interface as Figure-8 where to set network parameters. Figure-8 System -> Account Clicking “Account”, it displays the interface as Figure-9 where to set use-name and password of the equipment.
Page 20
H-MPEG2-H264-E2 Figure-9 System -> Configuration Clicking “Configuration”, it displays the screen as Figure-10 where to save/ restore/factory setting/ backup/ load your configurations. Figure-10 System -> Firmware Clicking “Firmware”, it displays the screen as Figure-11 where to update firmware for the encoder.
Page 21
H-MPEG2-H264-E2 Figure-11 System -> Date/Time Clicking “Date/Time”, it displays the screen as Figure-12 where to set date and time for the device. Figure-12 System -> Log Clicking “Log”, it displays the log interface as Figure-13 where to check or export the Kernel/System log.
H-MPEG2-H264-E2 Chapter 5 Troubleshooting THOR’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All THOR products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by THOR.
