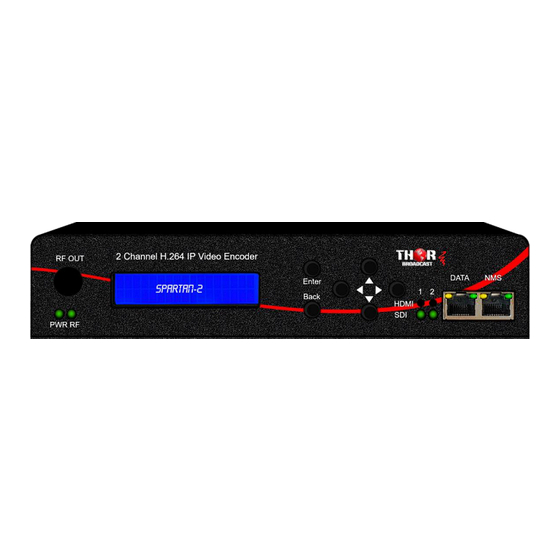

Thor Broadcast H-SPARTAN-2 User Manual

2 channels h.264 ip video encoder
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
User Manual
2 Channels H.264 IP Video Encoder
H-SPARTAN-2

Advertisement

loading
Need help?

Need help?

Do you have a question about the H-SPARTAN-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thor Broadcast H-SPARTAN-2

Summary of Contents for Thor Broadcast H-SPARTAN-2

  • Page 1 User Manual 2 Channels H.264 IP Video Encoder H-SPARTAN-2...

  • Page 2: Technical Specifications

    H-SPARTAN-2 TECHNICAL SPECIFICATIONS Interfaces Input 2x HDMI, 2 x 3G-SDI Output 1 x RJ45, 1Gbps IP Streaming, Protocols: UDP/RTP(Unicast/Multicast)/HLS,RTMP, HTTP LCD with 6 keys & 1 x RJ45 (Web NMS) Control Video Encoding Format H.264 AVC/HP@L4.0 Resolution Input: 1080 50/60p, 1080 50/60i, 720 50/60p, 480i, 576i...
  • Page 3 H-SPARTAN-2 Application Example - Point to Point WEB OPERATION INSTRUCTION The device is configured using NMS. Access to the NMS is via the network connection IP Address of Computer Setting We must choose the static IP address according to the default gateway address. The first three numbers must be the same (192.168.0.x in the example).
  • Page 4 H-SPARTAN-2 IP Address of Computer Setting 2.1 Each machine can have different username and password settings. 2.2 Please log in before operation. Default IP is 192.168.0.168; Password: 0000 3. NMS Home Page & Status Contents of the home page includes: Device Information/Encoder Setup/Streaming Setup/Network/ Password/Upgrade/Configuration.
  • Page 5 H-SPARTAN-2 4. Encoder Setup Use the Setting Setup Page to set the Encoder setup. You can change the program name, or choose the signal source is HDMI or SDI. You can also change the Video Bitrate,Rate Mode, Audio Encoder, Audio Bitrate, PMT PID, Video PID, Audio PID, PCR PID parameters.
  • Page 6 H-SPARTAN-2 5. Streaming Setup Use the Streaming Setup Page to setup your required streaming method. You can choose up to 2xSPTS or 1xMPTS. You can choose UDP/RTP (unicast and multicast), UDP/RTP is automatic analysis. Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
  • Page 7 H-SPARTAN-2 6. Network Setup The Web Management default setting 192.168.0.168. 7. Password You can modify the user name and password. In the New password field, enter the new password you want to change, also the same password as the new password to confirm.
  • Page 8 H-SPARTAN-2 8. Upgrade Use the Upgrade page to update system firmware. 9. Configuration Use the “Factory Reset” to reset configuration to factory default. Use the “Download Config” to saved device setting configuration setting to PC. Use the “Upload Config” to upload the file with pre‐saved configuration settings to device.
  • Page 9 H-SPARTAN-2 For Further Tech Support 1-800-521-Thor(8467) support@thorfiber.com Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
