Thor Broadcast H-XX-DVBS2X Manual

Satellite modulator & sdi encoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H-XX-DVBS2X
DVBS2X Satellite Modulator
& SDI Encoder
Revision 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-XX-DVBS2X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thor Broadcast H-XX-DVBS2X

Summary of Contents for Thor Broadcast H-XX-DVBS2X

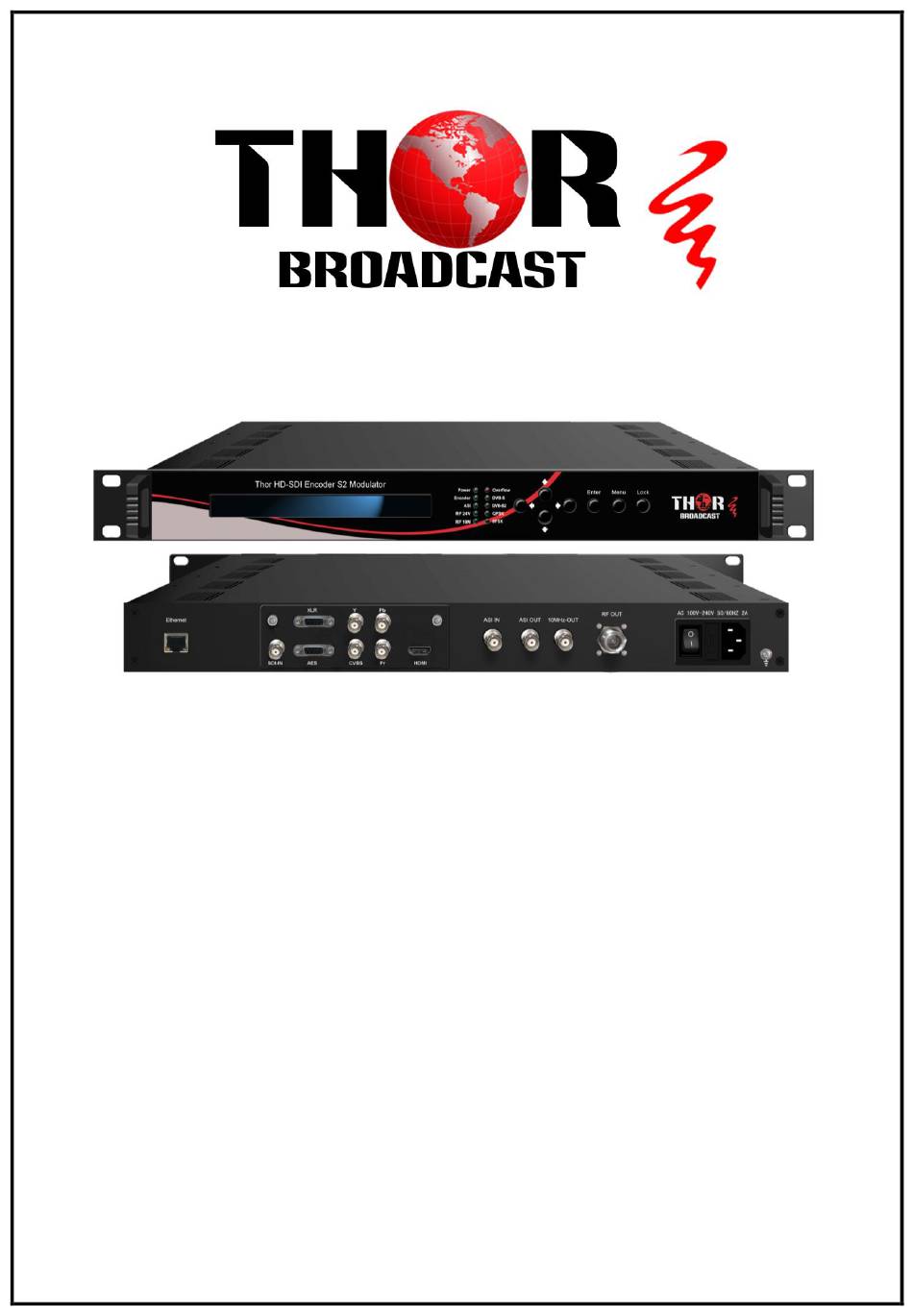

  • Page 1 H-XX-DVBS2X DVBS2X Satellite Modulator & SDI Encoder Revision 2019...

  • Page 2: Table Of Contents

    H-XX-DVBS2X Table of Contents CHAPTER 1 ..............................4 ............................. 4 1.1 O VERVIEW 1.2 F ............................. 4 EATURES 1.3 PRINCIPLE CHART ............................. 4 1.4 SPECIFICATIONS ............................5 1.5 APPEARANCE AND DESCRIPTION......................7 CHAPTER 2 INSTALLATION GUIDE ........................8 ’ ..........................8 2.1 W...
  • Page 3 This document includes some confidential information. Its usage is limited to the owners of the product that it is relevant to. It cannot be copied, modified, or translated in another language without prior written authorization from Thor Broadcast. Thor Fiber 2019 Tel: (800) 521-8467 Email: sales@thorfiber.comhttp://www.thorbroadcast.com...

  • Page 4: Chapter 1

    Chapter 1 1.1 Overview Thor Broadcast’s new HD-SDI Encoder and S2 modulator has been made to abide by DVB-S2X standards (EN302 307-2) which is a third generation broadband satellite telecommunication standard that integrates ASI and IP inputs and modulate them into a DVB-S/S2/S2X RF output.

  • Page 5: Specifications

    H-XX-DVBS2X 1.4 Specifications Encoding MPEG-2 HD/SD or MPEG-4 AVC/H.264 HD/SD Input HDMI/SDI//YPbPr/CVBS/ Input Output Interface Applicable 1920×1080i@60 1920×1080,1440×108, HDMI 1280×1080, 960×1080 1920×1080i@59.94 Resolution YPbPr 1920×1080i@50 1280×720p@60 1280×720, 960×720p, HDMI 640×720p 1280×720p@59.94 YPbPr 1280×720p@50 720×576i@50 720×576, 704×576, 640×576, SDI,CVBS HDMI 544×576, 528×576, 480×576, 352×576...
  • Page 6 H-XX-DVBS2X 1/2*CVBS /1*SDI /1*HDMI/1*(HDMI+YPbPr+CVBS 3-in-1) optional Input DVB-S/S2/S2XRF output; Interface ASI intput DVB-S/S2/S2XRF output ;950-2150MHz Output ASI outputsame as RF Standard DVB-S DVB-S2 DVB-S2X Outer coding RS Coding BCH Coding BCH Coding Inner coding Convolution LDPC Coding LDPC Coding Constellation...

  • Page 7: Appearance And Description

    H-XX-DVBS2X 1.5 Appearance and Description Front Panel Illustration 3 4 5 6 LCD Window Indicators Navigation Keys Enter：Confirmation Key Menu: Back-step Key Lock: Locking Key Rear Panel Illustration 2 3 4 Web NMS(Network Management System) interface SDI Encoding Module XLR input connectors (for two channels analog stereoinput) AES input connector (for only one channel digital stereo input) YPbPr&...

  • Page 8: Chapter 2 Installation Guide

    H-XX-DVBS2X Chapter 2 Installation Guide 2.1 What’s in the Box  Thor HD-SDI Encoder DVB-S2 Satellite Modulator  User’s Manual  ASI Cable  Power Cord If any item is missing or mismatching with the list above, please contact Thor 1-800-521-8467.

  • Page 9: Grounding Requirement

    H-XX-DVBS2X than 450Kg/㎡) 5~40℃(sustainable)，0~45℃(short time) Environment Temperature installing air-conditioning is recommended Relative Humidity 20%~80% sustainable 10%~90% short time Pressure 86~105KPa Installing rubber strip for sealing door-gaps and dual Door & Window level glasses for window Fire Protection Fire alarm system and extinguisher Device power, HVAC and lighting should be independent to each other.

  • Page 10: Power And Ground

    H-XX-DVBS2X  It is prohibited to use any other device as part of the grounding electric circuit.  The area of the conduction between the ground wire and device’s frame should be no less than 25 ㎡. 2.3 Power and Ground ...

  • Page 11: Chapter 3 Operation

    H-XX-DVBS2X Chapter 3 Operation The front panel of the Encoder Modulator has any easy to use interface where the equipment can also be conveniently operated and managed the LCD: Keyboard Function Description: MENU: Cancel current entered value, resume previous setting; Return to previous menu.

  • Page 12: Settings

    H-XX-DVBS2X 2.1.1 Audio Port 2.1.2 Sample Rate 2.1.3 Audio Pair 2.1 Audio Setting 2.1.4 Pair 1 2 Encode Setting 2.1.7 Pair 4 2.2.1 Video Port 2.2.2 Video BitRate 2.2.3 Encode Tpye 2.2 Video Setting 2.2.5 PID 2.2.26 Adj LineNuml 2.3 Start Encode 3.1 Frequency...

  • Page 13: Run Status

    H-XX-DVBS2X Press LOCK key, you can enter the main menu and the LCD will display: ► 1 Run Status 2 Encode Settings 3 Modulate Setting 4 Network Settings ► 5 System Settings 6 Version You could manage all these things according to the 6 options displayed on the LCD.

  • Page 14: Start Encode

    H-XX-DVBS2X  Video Setting By pressing UP/DOWN or LEFT/RIGHT to choose this item, ENTER and LEFT/RIGHT to set video parameters. The system displays following pages: ► 2.2.1 Video Port 2.2.2 Video BitRate 2.2.3 Encode Type 2.2.4ClosedCaption 2.2.5 PID 2.2.6 Stream ID 2.2.7ChroSampling...

  • Page 15: Modulate Setting

    H-XX-DVBS2X 3.3 Modulate Setting Select “3 Modulate Setting” in the main interface and user can set the parameters of modulation: 3.1 Frequency 3.2 Symbol Rate 3.3 Constellation 3.4FEC Rate 3.5 Modu Output 3.6 Output Level 3.7Src Select 3.8 Roll off 3.9Spec Invert...
  • Page 16 H-XX-DVBS2X QPSK/8PSK/8APSK/16APSK/32APSK:these options are the constellations under DVB-S2 and DVB-S2X.  FEC Rate (Forward Error Correction):User can select FEC among 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36 and 13/18 by pressing RIGHT/LEFT key. FEC Rate 2/3 3/4 9/10 DVB-S2 FEC (Forward Error Correction):User can select one...

  • Page 17: Network Settings

    H-XX-DVBS2X  Roll Off: Enter this menu to select roll-off factory shown as below by pressing right/left key and to confirm by pressing Lock key. Different factory has different effect on the max input bit rate. Roll OFF 0.35 0.25 0.20...

  • Page 18: System Settings

    H-XX-DVBS2X IP Address 192.168.000.136 Subnet Mask 255.255.255.000 Gateway 192.168.000.001 MAC Address 72:10:42:7A:00:23  NOTE: The MAC address is default according to the factory setting, and it is unique. 3.5 System Settings Choose to save the current configured parameters by pressing ENTER key. The system displays following page: 5.1 Save Config 5.2 Load Config...

  • Page 19: Version

    H-XX-DVBS2X 3.6 Version Check the device’s hardware version and software version at this submenu: Version SW xx HW xx Thor Fiber 2019 Tel: (800) 521-8467 Email: sales@thorfiber.comhttp://www.thorbroadcast.com...

  • Page 20: Chapter 4 Web-Based Nms Management

    H-XX-DVBS2X Chapter 4 Web-based NMS Management The Thor Broadcast Modulator supports front D-pad buttons with an LCD screen for control and management, but you can also control and set the configuration by connecting the IRD to a PC via the web NMS Port. Make sure that the computer’s IP address is different from the Encoder’s IP address otherwise it would cause an IP conflict and you will not be able to login.

  • Page 21: Operation

    H-XX-DVBS2X 4.2 Operation When we confirm the login, it will display the Summary interface as Figure-2 where users can have an overview of the device’s system information and working status. System, input and output information Can click any item here to enter...
  • Page 22 H-XX-DVBS2X Click and set parameters. This device can encode 4 audio pairs Audio editing area Figure 3 Click this button to apply the default setting of Encoder. Click this button to apply the modified parameters.  Video: Clicking “Video”, it will display the interface as Figure 4 where users can set video parameters.
  • Page 23 H-XX-DVBS2X  Dolby Meta: Clicking “Dolby Meta”, it will display the interface as Figure 5 where users choose the encode type as AC3-professional under audio setting (Figure 3), they can set these parameters. Dolby editing area Figure 5  SDI Channel: Clicking “SDI Channel”, it will display the interface as Figure 6 where users can set SDI input audio...
  • Page 24 H-XX-DVBS2X Parameters →Modulator User can click Modulator in the left column and enter into the Modulate interface. More details please refer to 3.3 in this manual. Figure 7 Parameters → CID Config: Clicking“CID Config”, it will display the interface as Figure 8 where users can set RF CID parameters.
  • Page 25 H-XX-DVBS2X Parameters → TS Mux: Clicking “TS Mux”, it displays the interface where users can select program(s) to multiplex out and modify program info. Output Area Input Area Operation Area Figure 9 Configure ‘Input Area’ and ‘Output Area’ with buttons in ‘Operation Area’. Instructions are as below: : To check input source /lock current TS or not, green means current input source is locked, red color means the current TS overflow, and users need to reduce programs.
  • Page 26 H-XX-DVBS2X Clicking the multiplexed programs and then click this button, it triggers a dialog box (Figure-11) where users can edit program information. Figure 11 Parameters → BISS Config: Clicking“BISS Config”, it will display the interface as Figure 12 where users can set BISS parameters.
  • Page 27 H-XX-DVBS2X Users can select Mode 1 in the drop-down menu, and then input the 12-digit SW Data (in hex). The downside device descrambler key equals SW Data on the BISS scrambler side.  Mode E Under Mode E, the BISS scrambler completes scrambling through ESW Data and Input ID (Input ID is operable when ‘Input’...
  • Page 28 H-XX-DVBS2X the device. By using ‘Restore Configuration’ users can restore the latest saving configuration to the device. By using ‘Factory Set,’ user can set the default factory setting. Figure 14 System→Backup/Load Clicking “Backup/Load” from the menu, it will display the screen as Figure 15.
  • Page 29 H-XX-DVBS2X System→Password: User can change the password in this interface as Figure 16 by puttingcurrentusername and password and then putting new username and password to change. After inputting the parameters, click‘Apply’ to save the configuration. Figure 16 System→Firmware Clicking “Firmware” from the menu and it will display the screen as Figure 17.
  • Page 30 H-XX-DVBS2X Figure 17 System→ Reboot Clicking “Reboot” from the menu the screen will display as . When users click ‘Reboot’ button, it Figure 18 will restart the device automatically. Figure 18 Thor Fiber 2019 Tel: (800) 521-8467 Email: sales@thorfiber.comhttp://www.thorbroadcast.com...

  • Page 31: Chapter 5 Troubleshooting

    H-XX-DVBS2X Chapter 5 Troubleshooting THOR’s ISO9001 quality assurance system has been approved by the CQC organization. We guarantee the products’ quality, reliability and stability. All THOR products haven passed all testing and manual inspections before they are shipped out. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by THOR.

  • Page 32: Warranty

    H-XX-DVBS2X Warranty H-XX-DVBS2X is covered by a THREE YEAR LIMITED WARRANTY, which starts from the initial date of your purchase. We provide the owner technical support for the life of the product. If the warranty is expired, repair service charges & parts(if required) can be applied. In...
