  • Page 1 User Manual H-1SDI-QAM-IPLL H-2SDI-QAM-IPLL 1/2 SDI to QAM Modulators and IPTV Streaming Encoders...

  • Page 2: Table Of Contents

    DIRECTORY Chapter 1 Product Introduction ......................1 1.5 Appearance and Illustration ......................3 Chapter 2 Installation Guide ........................4 2.1 Acquisition Check ..........................4 2.2 Installation Preparation ........................4 2.3 Wire’s Connection ..........................6 Chapter 3 Keyboard Operation ......................7 3.1 LCD Menu Tree ..........................

  • Page 3: Chapter 1 Product Introduction

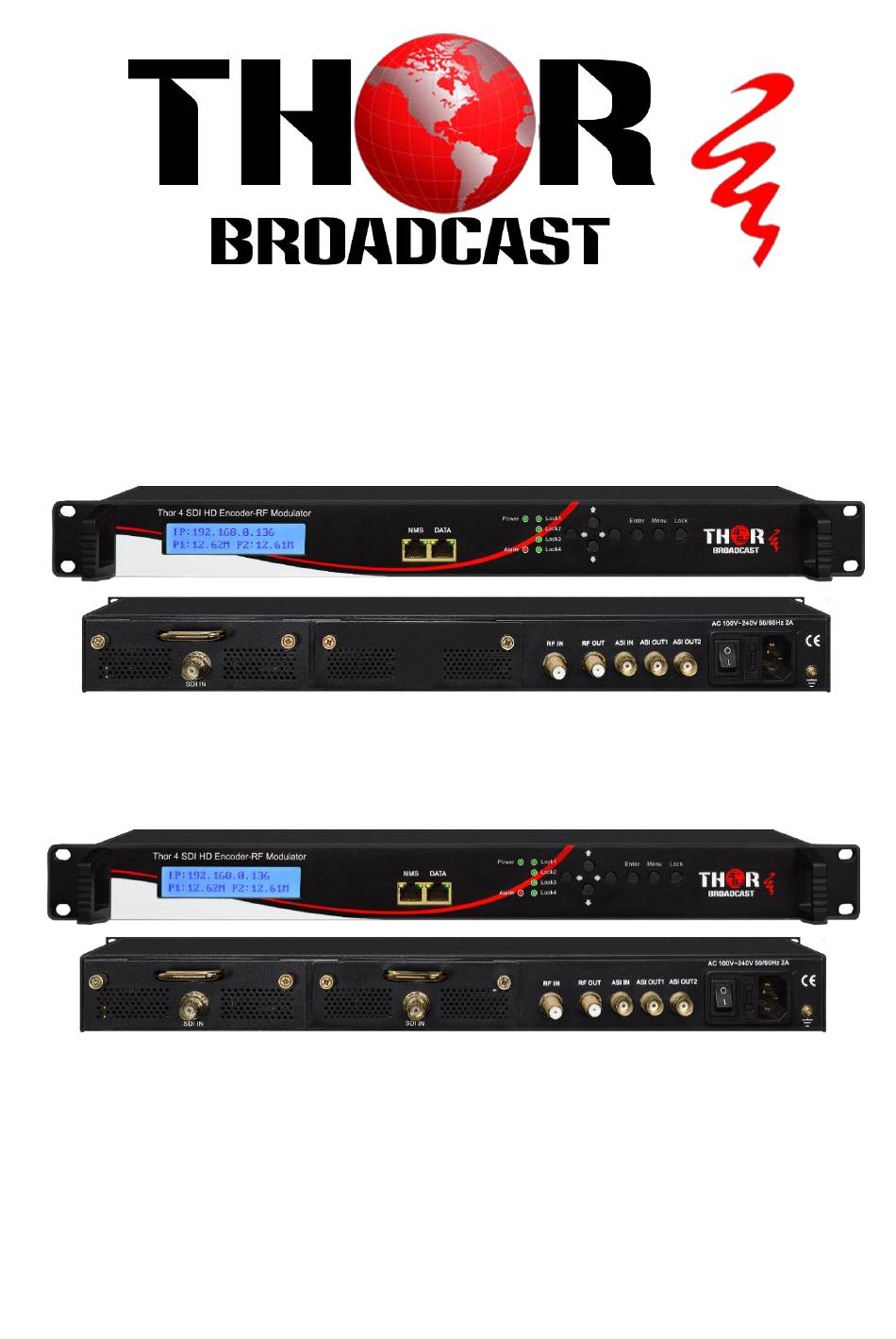

    H-2SDI-QAM-IPLL Chapter 1 Product Introduction 1.1 Outline H-1/2SDI-QAM-IPLL series products are THOR’s all-in-one devices which integrate encoding, multiplexing and modulation to convert V/A signals into digital RF output. It adopts inner drawer- type structural design which greatly facilitates the change of encoding modules (HDMI/CVBS/SDI/YPbPr/…) as needed.
  • Page 4 H-2SDI-QAM-IPLL 1.3 Technical Specifications HDMI*1(the other is backup) HDMI Encoding Input Input MPEG2; MPEG4 AVC/H.264 Encoding Bitrate 1-19.5Mbps Resolution 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) Video 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i Low Delay Normal, Mode 1, Mode 2 Chroma 4:2:0 Aspect Ratio 16:9,4:3...

  • Page 5: Appearance And Illustration

    H-2SDI-QAM-IPLL 1.4 Principle Chart ASI(optional)&IP Output VGA/HDMI/SDI/YPbPr/CVBS Source MPEG-2 HD/SD MPEG-4 HD/SD Encoding Modulating ASI In（optional） 1.5 Appearance and Illustration Front Panel Illustration: 7 8 9 1. LCD Screen 2. NMS Port 3. DATA Port 4. Power and Alarm Indicators 5.

  • Page 6: Chapter 2 Installation Guide

    H-2SDI-QAM-IPLL Chapter 2 Installation Guide 2.1 Acquisition Check When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items:  Encoder Modulator  Power Cord  Ground lead If any item is missing or mismatching with the list above, please contact local dealer.
  • Page 7 H-2SDI-QAM-IPLL Electric Isolation, Dust Free Volume resistivity ground anti-static material: Machine Hall Floor ，Grounding current limiting resistance: 1M 10 1X10 ~1X10 (Floor bearing should be greater than 450Kg/㎡) 5~40℃(sustainable )，0~45℃(short time)， Environment Temperature installing air-conditioning is recommended Relative Temperature 20%~80% sustainable 10%~90% short time Pressure 86~105KPa Installing rubber strip for sealing door-gaps and dual level glasses...

  • Page 8: Wire's Connection

    H-2SDI-QAM-IPLL wire and grounding strip should be no less than 25mm 2.2.5 Device Grounding Connecting the device’s grounding rod to frame’s grounding pole with copper wire. 2.3 Wire’s Connection The grounding wire conductive screw is located at the right end of rear panel, and the power switch, fuse, power supply socket is just beside ,whose order goes like this, power switch is on the left ,power supply socket is on the right and the fuse is just between them.

  • Page 9: Chapter 3 Keyboard Operation

    H-2SDI-QAM-IPLL Chapter 3 Keyboard Operation This Encoder Modulator’s front panel is user-operating interface. Before operating, users can decide whether directly use the default setting or customize the input and output parameters setting. The detailed operations go as follows: Keyboard Function Description: ENTER: Activating the parameters which need modifications, or confirming the change after modification.
  • Page 10 H-2SDI-QAM-IPLL Status Video Format Aspect Ratio Field/Picture Enc Video Cache Video CC Switch Video Bitrate Low Delay DTS Delay GOP B Frame GOP P Frame H.264 Profile H.264 Level Out Resolution 1. SDI HD Share PCR PID Input Settings 2. SDI HD PCR Interval Audio Format Dialog Normal...
  • Page 11 H-2SDI-QAM-IPLL Data enable MPTS 1 Null PKT Filter MPTS 2 Output IP MPTS 3 Output Port MPTS 4 Output Protocol IP Stream Output Settings Data enable Null PKT Filter SPTS 1 Output IP SPTS 2 Output Port Output Protocol Bitrate Subnet mask Gateway MAC Address...

  • Page 12: Chapter 4 Web Nms Operation

    H-2SDI-QAM-IPLL Chapter 4 WEB NMS operation Users can not only use front buttons for setting configuration, but also control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from this device IP address; otherwise, it would cause IP conflict. 4.1 login The default IP of this device is 192.168.0.136.
  • Page 13 H-2SDI-QAM-IPLL Figure-2 Encoder 1 From the menu on left side of the webpage, clicking “Encoder 1”, it displays the information of the programs from the 1 encoding board as Figure-3. General Settings for the input programs: Users can edit any item listed as needed.
  • Page 14 H-2SDI-QAM-IPLL Figure-4 There are 4 low delay options: 1. Normal: to disable the low delay function. 2. Mode 1: to activate the low delay function in the default Mode 1 configuration. 3. Mode 2: to activate the low delay function in the default Mode 2 configuration. 4.
  • Page 15 H-2SDI-QAM-IPLL Figure-5 TS Config Click “TS Config”, it will display the encoded program information as Figure-6. Users can parse and multiplex encoded programs in this interface. Figure-6 Output TS 1/2/3/4 represents the 4 carrier outputs and 4 MPTS out. Users can configure different program group for each carrier output as needed.
  • Page 16 H-2SDI-QAM-IPLL To refresh the output program information Select the wanted input program(s) firstly and click this button to transfer the selected program(s) to output. Cancel the multiplexed programs from the output area after your program selection. To select all the input programs To select all the output programs To parse programs time limitation of parsing input programs...
  • Page 17 H-2SDI-QAM-IPLL Set Web Insert for NIT Insert and Click “+” from this page, it will display the screen as Figure-9 where it requires to add NIT descriptor. Please follow your configuration in Modulator page to edit the NIT descriptor. Insert VCT in J.83B case. Figure-9 Modulator This unit is equipped with 4 DVB-C frequencies output.
  • Page 18 H-2SDI-QAM-IPLL the 4 MPTS output and 2 SPTS Output by clicking the Figure-11 Network When user clicks “Network”, it will display the page as Figure-12. It displays the network information of the device. Here users can change the device network configuration as needed. Figure-12 Password From the menu on left side of the webpage, clicking “Password”, it will display the screen as...
  • Page 19 H-2SDI-QAM-IPLL Figure-13 where to set the login account and password for the web NMS. Figure-13 Configuration From the menu on left side of the webpage, clicking “Configuration”, it will display the page as Figure-14 where to save, restore, make factory set, backup and load your configurations. Tel: (800) 521-8467 Email: sales@thorfiber.com...
  • Page 20 H-2SDI-QAM-IPLL Figure-14 Firmware From the menu on left side of the webpage, clicking “Firmware”, it will display the screen as Figure-15 where to update firmware for the device. Figure-15 Date | Time Users can set timezone and configure NTP server to update Date and Time in the device. Tel: (800) 521-8467 Email: sales@thorfiber.com...
  • Page 21 H-2SDI-QAM-IPLL Figure-16 Log: The Kernel and System log here are for the R&D debugging reference. Figure-17 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...

  • Page 22: Chapter 5 Troubleshooting

    H-2SDI-QAM-IPLL Chapter 5 Troubleshooting Our ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All of our products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by us.

  • Page 23: Chapter 6 Packing List

    H-2SDI-QAM-IPLL Chapter 6 Packing list  Encoder Modulator 1 pc  Power cord 1 pc  Ground Lead 1 pc Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
