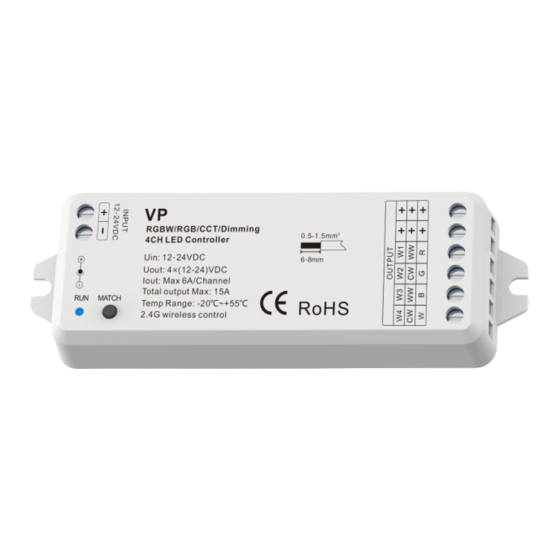

RGBW/RGB/CCT/Dimming 4 Channel LED RF Controller
Model No.: VP
4 Channels/DC power socket input/Step-less dimming/Wireless remote control/Auto-transmitting/Synchronize
Features
● DC power socket input and 4 channel constant voltage output.
● Match with Skydance's 2.4G single color, dual color and RGB/RGBW remote control.
● One RF controller accept up to 10 remote control.
●
When using with RGB/RGBW light
● Auto-transmitting function: Controller automaticly transmit signal to another controller with 30m control distance.
● Synchronize on multiple number of controllers.
Technical Parameters
Input and Output
Input voltage
Input current
Output voltage
Output current
Output power
Output type
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certification
User Manual Ver 1.0.2
, built in 10 dynamic mode, include jump or gradual change style.
12-24VDC
15.5A
4 x (12-24)VDC
4CH,4A/CH,Max 6A
4 x (48-96)W
Constant voltage
EN301 489,EN 62479
EN60950
EN300 328
CE,EMC,LVD,RED
www.iskydance.com
Dimming data
Input signal
Control distance
Dimming level
Dimming range
Dimming cur ve
PWM Frequency
Environment
Operation temperature
Case temperature
Max.
(
)
IP rating
Warranty and Protection
Warranty
Protection
LVD RED
RF 2.4GHz
30m
4096 levels
0 - 100%
Logarithmic
750Hz
O
O
Ta: -30
C ~ +55
C
O
T c: +85
C
IP20
5 years
Reverse Polarity
Page 1
Advertisement
Related Manuals for SKYDANCE VP
Summary of Contents for SKYDANCE VP
- Page 1 LVD RED Features ● DC power socket input and 4 channel constant voltage output. ● Match with Skydance’s 2.4G single color, dual color and RGB/RGBW remote control. ● One RF controller accept up to 10 remote control. ● When using with RGB/RGBW light , built in 10 dynamic mode, include jump or gradual change style.
- Page 2 ● VP for RGB/RGBW AC100-240V Power Supply 12-24VDC Constant Voltage RGBW LED strip RGB remote ● VP for dual color AC100-240V Power Supply 12-24VDC Dual color LED strip Constant Voltage Dual color LED strip CCT remote ● VP for single color...
- Page 3 RGBW/RGB/CCT/Dimming 4 Channel LED RF Controller Match Remote Control (two match ways) End user can choose the suitable match/delete ways. Two options are offered for selection: Use Power Restart Use the controller’s Match key Match: Match: Short press match key, immediately press on/off Switch off the power, then switch on power again, key (single zone remote) or zone key (multiple zone immediately short press on/off key (single zone remote)
- Page 4 RGBW/RGB/CCT/Dimming 4 Channel LED RF Controller RGB/RGBW dynamic mode list Name Name RGB fade in and out RGB jump Red fade in and out RGB smooth Green fade in and out 6 color jump Blue fade in and out 6 color smooth Yellow cyan purple smooth White fade in and out Dual color control...
