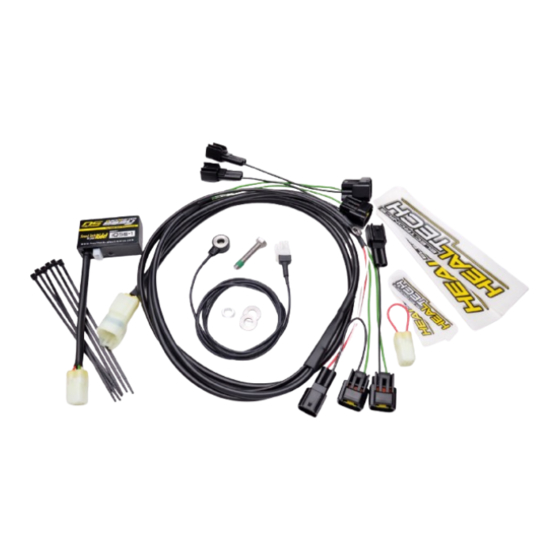

QuickShifter easy
Supplementary Manual
Yamaha XVS950C 2017-2020 (iQSE-1 + QSH-P2T)

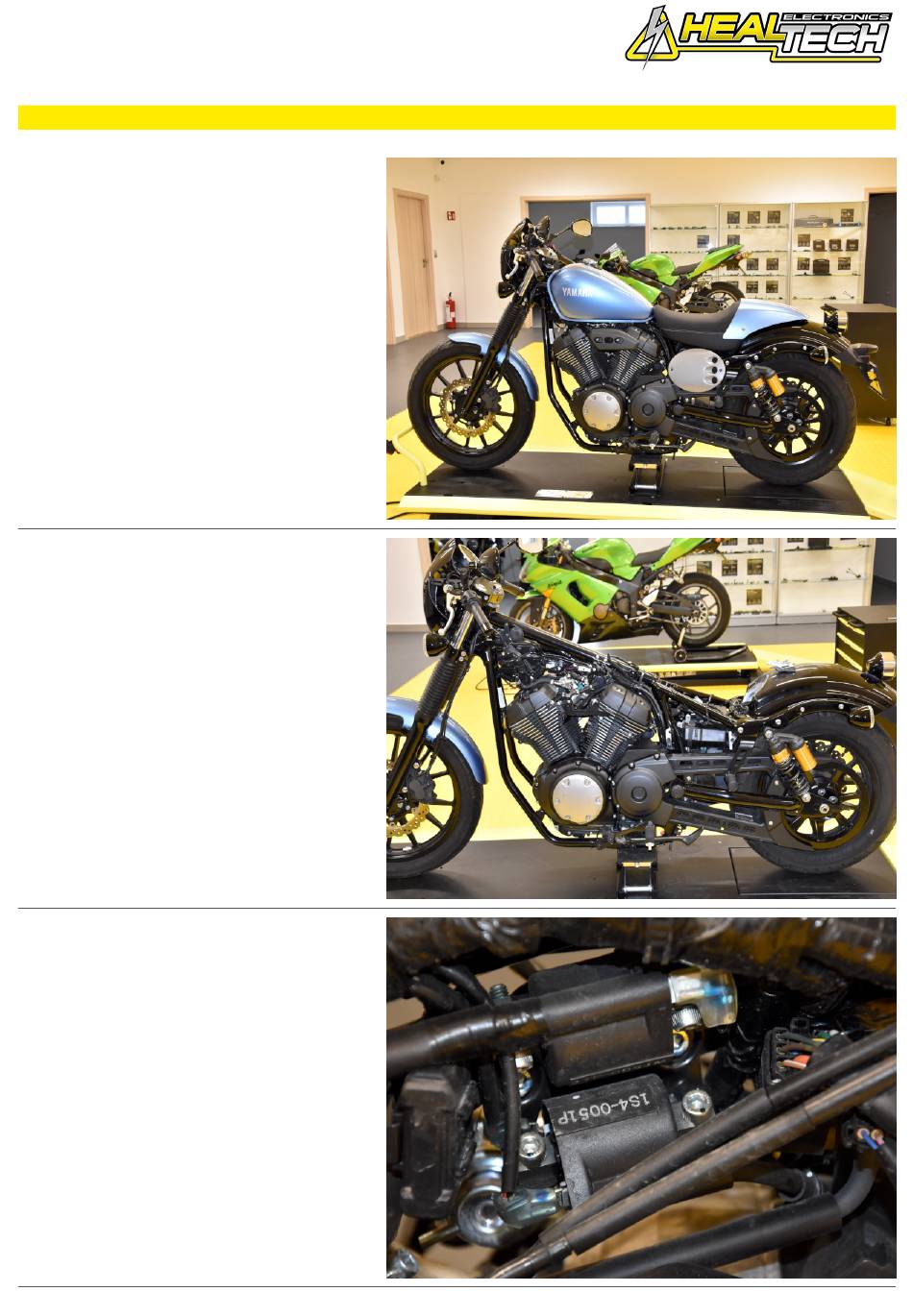

Secure the bike on a stand.
Remove the side covers and remove the
seat.
Remove the fuel tank.
Locate the ignition coil terminals under
the fuel tank.
w w w . h e a l t e c h - e l e c t r o n i c s . c o m
1/3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HealTech Electronics QuickShifter easy iQSE-1
Summary of Contents for HealTech Electronics QuickShifter easy iQSE-1
- Page 1 QuickShifter easy Supplementary Manual Yamaha XVS950C 2017-2020 (iQSE-1 + QSH-P2T) Secure the bike on a stand. Remove the side covers and remove the seat. Remove the fuel tank. Locate the ignition coil terminals under the fuel tank. w w w . h e a l t e c h - e l e c t r o n i c s . c o m...
- Page 2 QuickShifter easy Supplementary Manual Yamaha XVS950C 2017-2020 (iQSE-1 + QSH-P2T) Splice the QSH White wire to the Orange wire of the coil by using the supplied red wire tap connector. Take off the Red/Black terminal from the coil. Connect the Red/Black terminal to the QSH Red wire terminal.
- Page 3 QuickShifter easy Supplementary Manual Yamaha XVS950C 2017-2020 (iQSE-1 + QSH-P2T) Mount the QSE sensor. (Place the sensor in the rod as shown. Use the supplied washers at both sides of the sensor. Tighten the nut by hand fully and then by a 1/4 turn using a wrench but maximum to about 6 Nm.) Typical position for the QuickShifter easy.
