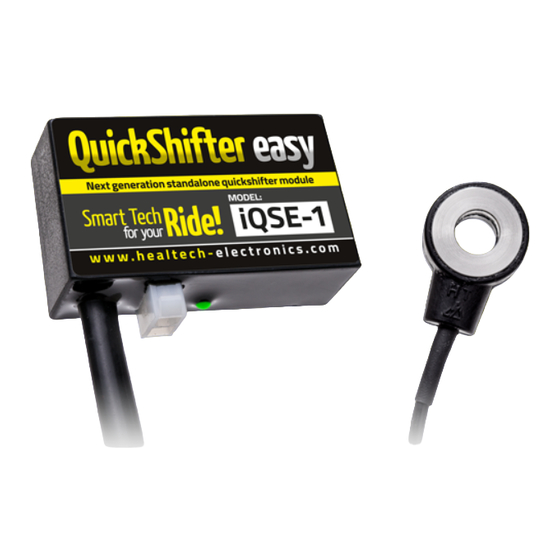

QuickShifter easy
Supplementary Manual
Yamaha FJR1300 ABS 2003-2012 (iQSE-W1 + QSH-P2T)

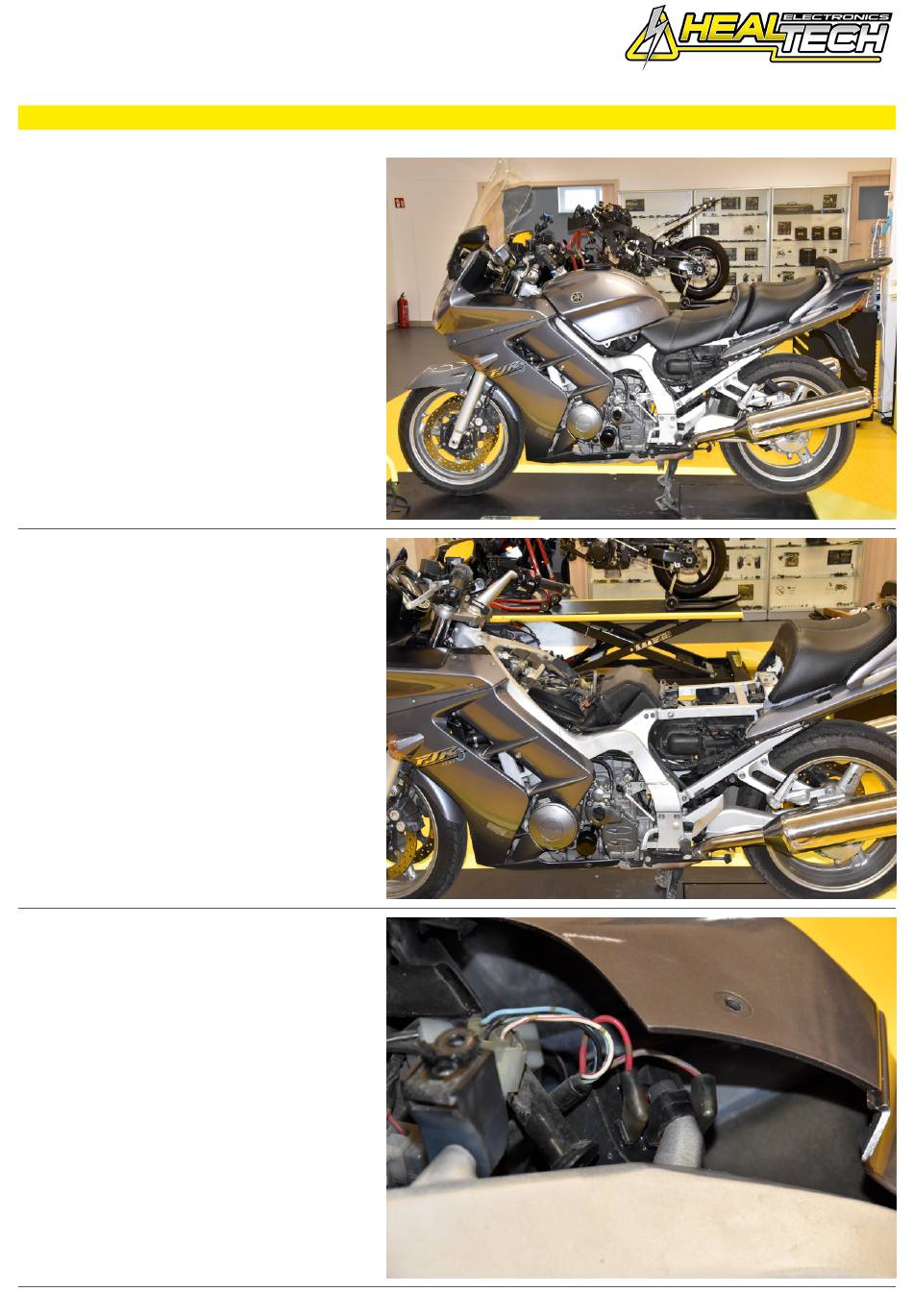

Secure the bike on a stand.
Remove the main seat.
Remove the fuel tank.
Locate the ignition coil connectors under
the side panel on the right side.
w w w . h e a l t e c h - e l e c t r o n i c s . c o m
1/3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HealTech Electronics QuickShifter easy
Summary of Contents for HealTech Electronics QuickShifter easy
- Page 1 QuickShifter easy Supplementary Manual Yamaha FJR1300 ABS 2003-2012 (iQSE-W1 + QSH-P2T) Secure the bike on a stand. Remove the main seat. Remove the fuel tank. Locate the ignition coil connectors under the side panel on the right side. w w w . h e a l t e c h - e l e c t r o n i c s . c o m...
- Page 2 QuickShifter easy Supplementary Manual Yamaha FJR1300 ABS 2003-2012 (iQSE-W1 + QSH-P2T) Take off the Red/Black terminal from the coil. Connect the Red/Black terminal to the QSH Red wire terminal. Connect the QSH Green terminal to this coil terminal. Splice the QSH White wire to the Grey/Red wire of the coil by using the supplied red wire tap connector.
- Page 3 1/4 turn using a wrench but maximum to about 6 Nm.) Typical position for the QuickShifter easy. Secure the unit properly. w w w . h e a l t e c h - e l e c t r o n i c s . c o m...
