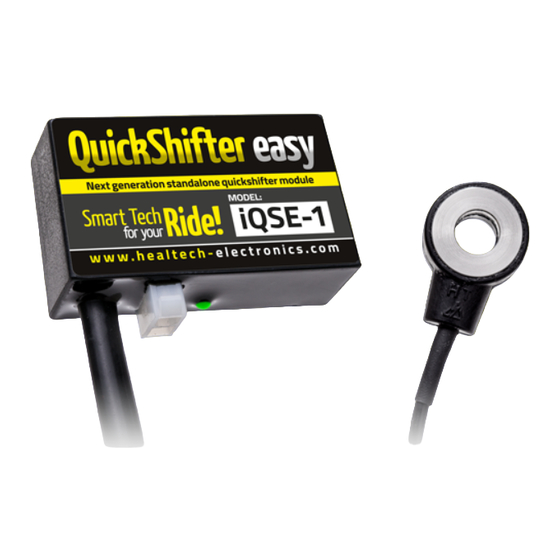

QuickShifter easy

Supplementary Manual

Honda CB500F 2013- (iQSE-1 + QSH-P2T)

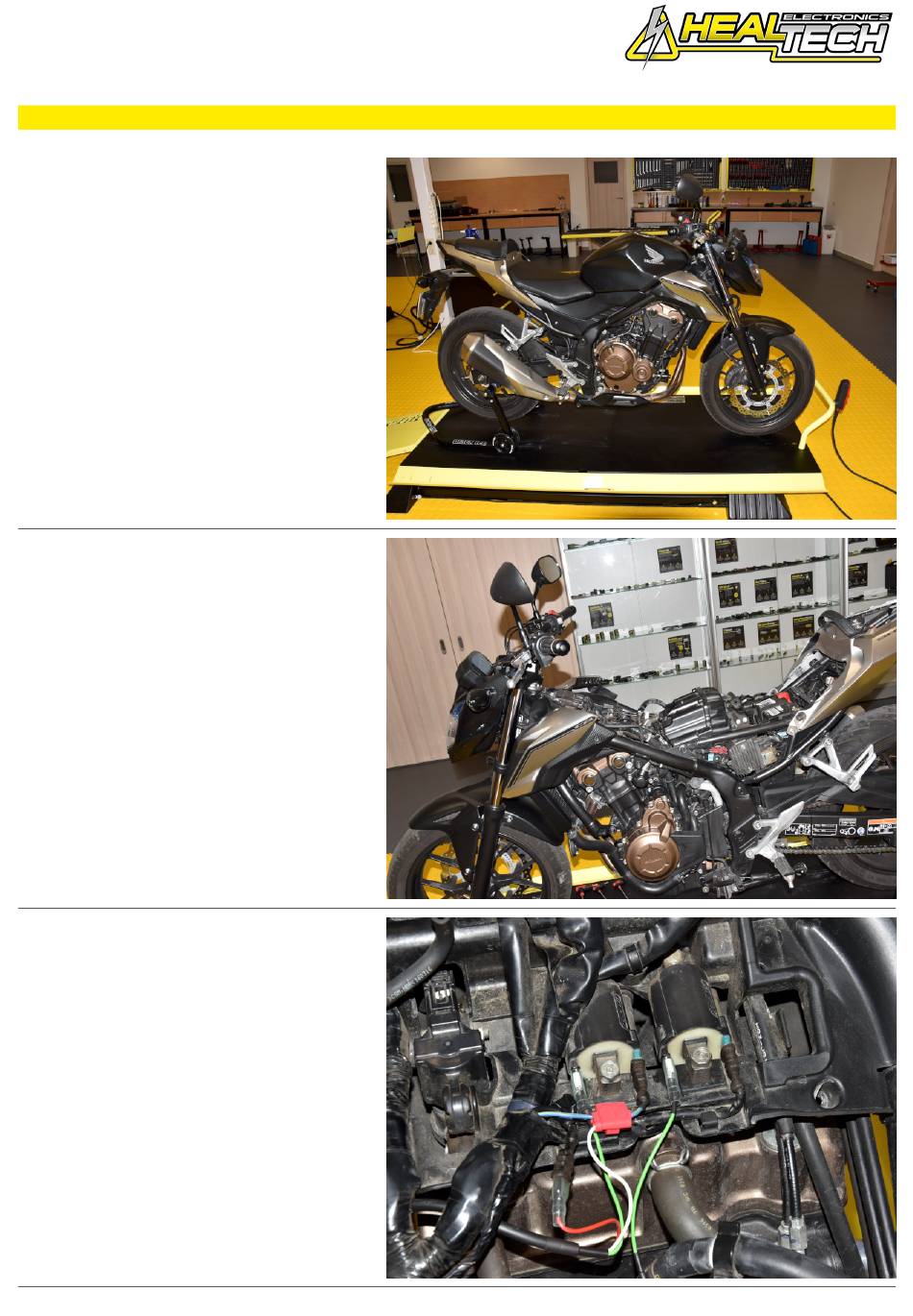

Secure the bike on a stand.

Remove the seats, side covers and the

fuel tank.

Take off the Black/White terminal from

one coil.

Connect the QSH Green terminal to the

empty coil terminal.

Connect the Black/White terminal to the

QSH Red wire terminal and secure with

tape.

(Refer to the QSH-P2T instructions)

w w w . h e a l t e c h - e l e c t r o n i c s . c o m

1/3

Need help?

Do you have a question about the QuickShifter easy and is the answer not in the manual?

Page 1 QuickShifter easy Supplementary Manual Honda CB500F 2013- (iQSE-1 + QSH-P2T) Secure the bike on a stand. Remove the seats, side covers and the fuel tank. Take off the Black/White terminal from one coil. Connect the QSH Green terminal to the empty coil terminal.
Page 2 QuickShifter easy Supplementary Manual Honda CB500F 2013- (iQSE-1 + QSH-P2T) Take off the Black/White terminal from the 2nd coil. Connect the QSH Green terminal to the empty coil terminal. Isolate the unused Black/White terminal with tape. Splice the QSH White wire to the Blue/Yellow wire of the coil by using the supplied red wire tap connector.
Page 3 Supplementary Manual Honda CB500F 2013- (iQSE-1 + QSH-P2T) Typical position for the QuickShifter easy. Secure the unit Properly. w w w . h e a l t e c h - e l e c t r o n i c s . c o m...
