iLogger easy

Supplementary Manual

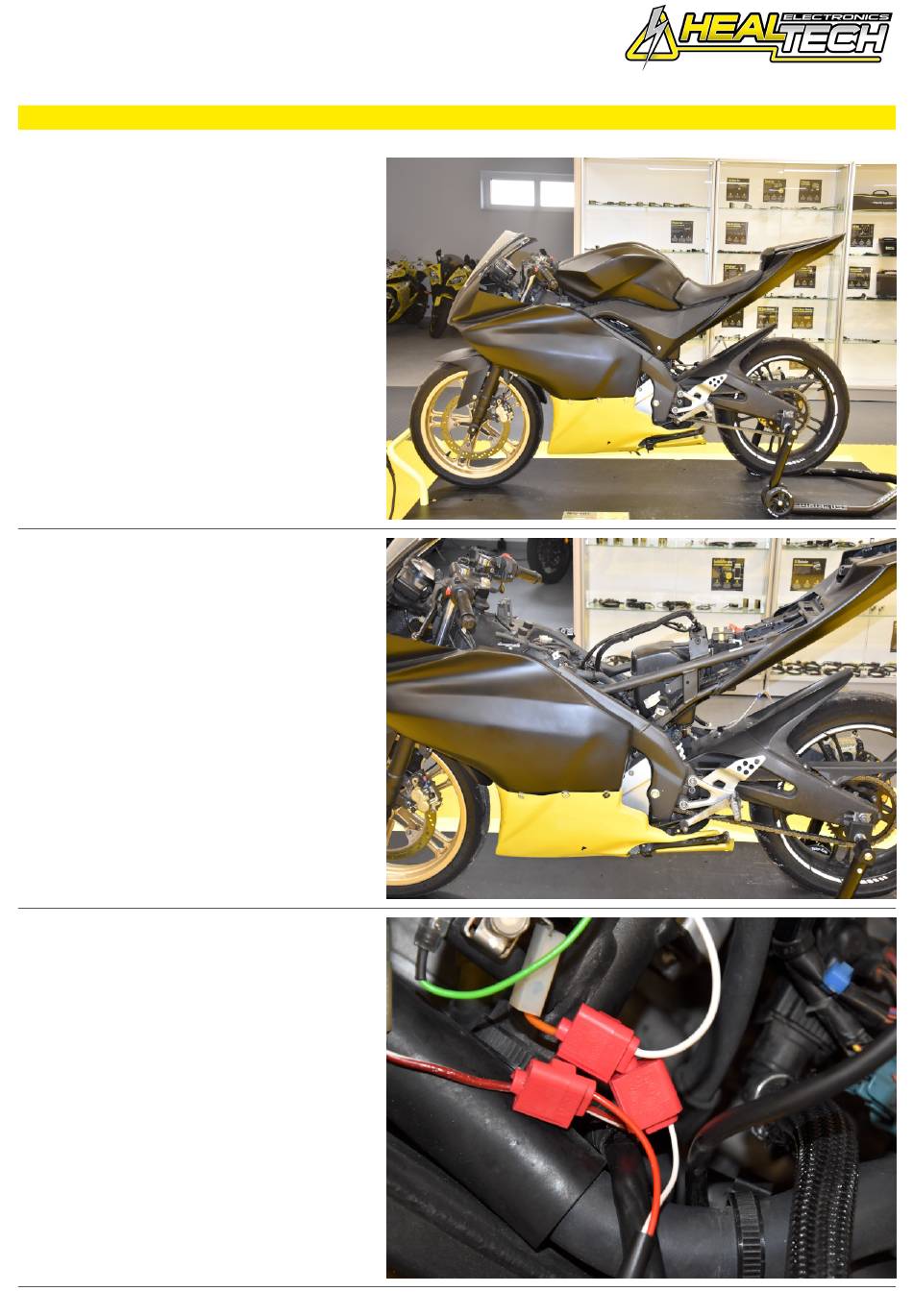

Yamaha YZF-R125 2008-2013 (iLE-1-KIT)

Secure the bike on a stand.

Remove the black plastic covers below

the fuel tank.

Remove the fuel tank cover and remove

the fuel tank.

Connect the iLE-H-PWR Red wire to the

Red/White wire of the ignition coil

connector.(Switched +12V)

Connect the iLE-H-PWR White wire to

the Orange wire of the ignition coil

connector.(RPM)

w w w . h e a l t e c h - e l e c t r o n i c s . c o m

1/5

Table of Contents

Do you have a question about the iLogger easy and is the answer not in the manual?

Page 1 Supplementary Manual Yamaha YZF-R125 2008-2013 (iLE-1-KIT) Secure the bike on a stand. Remove the seats. Remove the black plastic covers below the fuel tank. Remove the fuel tank cover and remove the fuel tank. Connect the iLE-H-PWR Red wire to the Red/White wire of the ignition coil connector.(Switched +12V)
Page 2 Supplementary Manual Yamaha YZF-R125 2008-2013 (iLE-1-KIT) Connect the iLE Black wire terminal to the battery negative terminal. Connect the Red, Black and White wires to the green terminal block as show on the photo. If the iLE is used together with the iQSE...
Page 3 Supplementary Manual Yamaha YZF-R125 2008-2013 (iLE-1-KIT) Connect the green terminal block to the iLE modul. Optional: Connect the iLE Black/Green wire to the Green/Yellow wire of the Front Brake switch. (Transparent, 2-pole connector under the fuel tank) Optional:...
Page 4 Supplementary Manual Yamaha YZF-R125 2008-2013 (iLE-1-KIT) Optional: Connect the iLE Pink wire to the Yellow wire of the Throttle position sensor. (Black, 5-pole connector under the fuel tank) Optional: Connect the iLE White wire to the Brown/White wire of the Intake air temperature sensor.
Page 5 Supplementary Manual Yamaha YZF-R125 2008-2013 (iLE-1-KIT) Mount the GPS receiver. Connect the GPS connector to the iLE module. Typical position for the iLE module. Secure the unit properly. w w w . h e a l t e c h - e l e c t r o n i c s . c o m...
