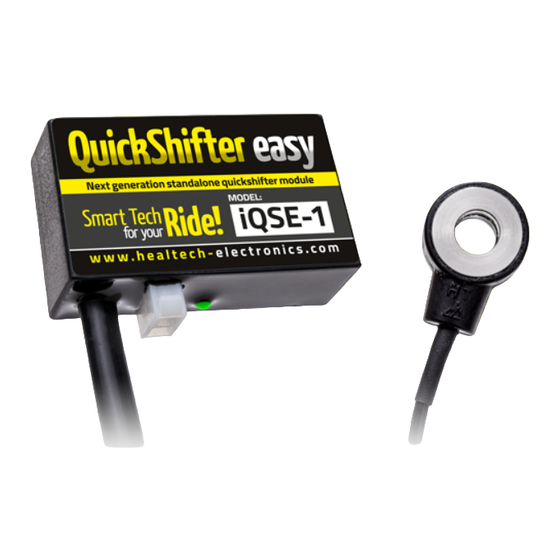

QuickShifter easy
Supplementary Manual
MV Agusta Turismo Veloce 800 ABS TC 2015- (iQSE-1 + QSH-F4B)

Secure the bike on a stand.

Remove the seats.

Remove the upper fairing.

Remove the side covers from the fuel
tank.

Remove the fuel tank and the airbox.

Locate the fuel injector connector under
the fuel tank.
Connect the QSH connectors in-line with
the injector connectors.
(Make sure the QSH plugs marked with RED
square are connected, and leave one
coupler unused. You may connect the male
and female plugs of the unused pair
together or isolate with tape.)
w w w . h e a l t e c h - e l e c t r o n i c s . c o m
1/2
