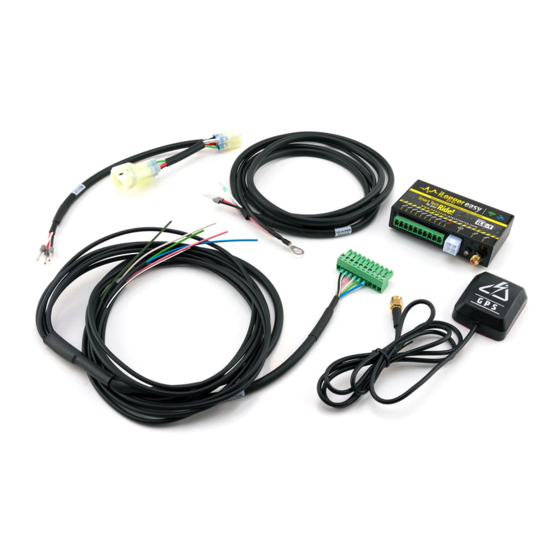

iLogger easy
Supplementary Manual
Kawasaki ZX-6R ABS TC 2019- (iLE-1-KIT)

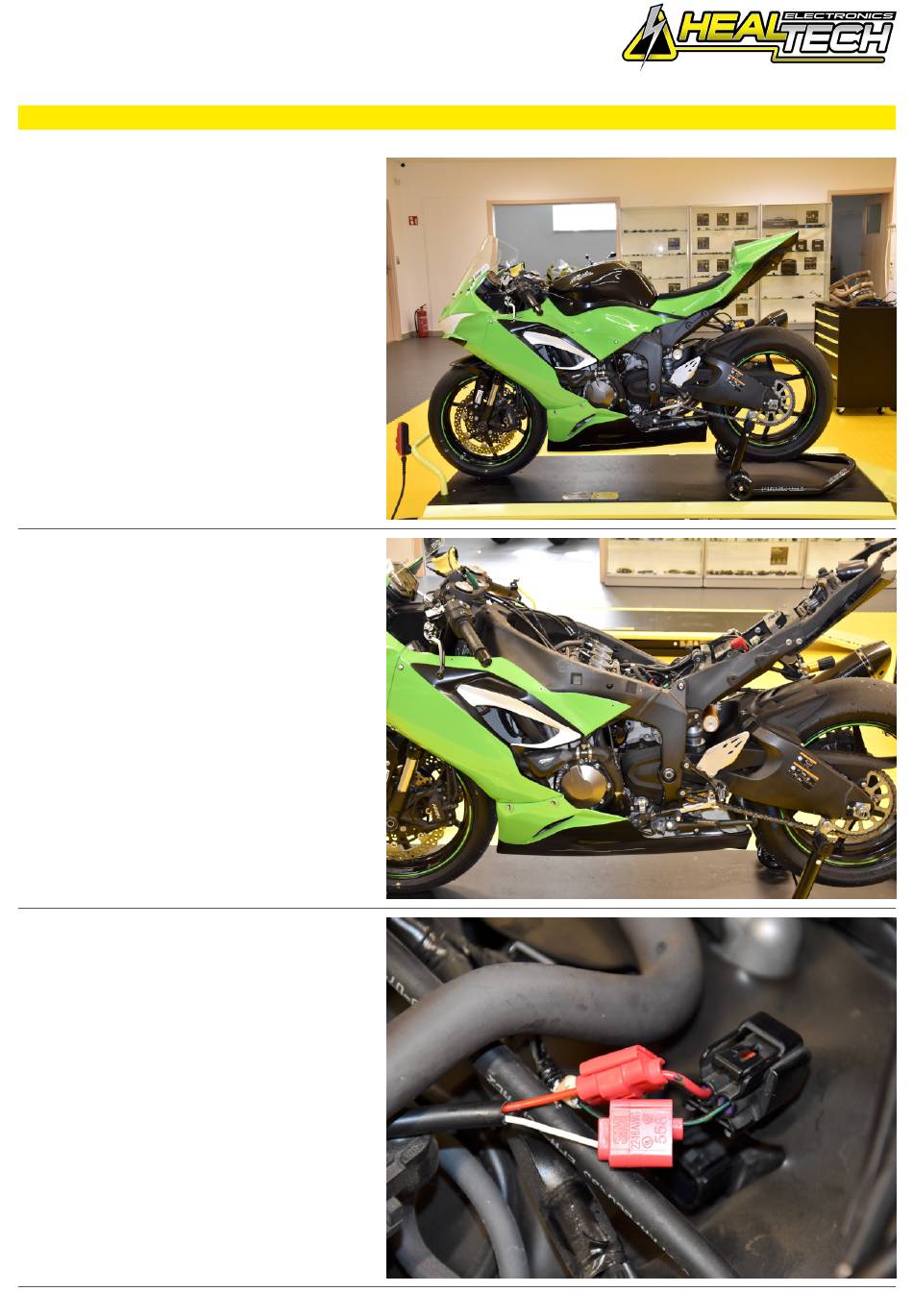

Secure the bike on a stand.
Remove the seat.
Remove the covers from the fuel tank.
Remove the fuel tank and the airbox.
Connect the iLE-H-PWR Red wire to the
Red wire of the ignition coil
connector.(Switched +12V)
Connect the iLE-H-PWR White wire to
the Black/Green wire of the ignition coil
connector.(RPM)
w w w . h e a l t e c h - e l e c t r o n i c s . c o m
1/5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HealTech Electronics iLogger easy iLE-1-KIT
Summary of Contents for HealTech Electronics iLogger easy iLE-1-KIT
- Page 1 iLogger easy Supplementary Manual Kawasaki ZX-6R ABS TC 2019- (iLE-1-KIT) Secure the bike on a stand. Remove the seat. Remove the covers from the fuel tank. Remove the fuel tank and the airbox. Connect the iLE-H-PWR Red wire to the Red wire of the ignition coil connector.(Switched +12V) Connect the iLE-H-PWR White wire to...
- Page 2 iLogger easy Supplementary Manual Kawasaki ZX-6R ABS TC 2019- (iLE-1-KIT) Connect the iLE Black wire terminal to the battery negative terminal. Connect the Red, Black and White wires to the green terminal block as show on the photo. Connect the green terminal block to the iLE modul.
- Page 3 iLogger easy Supplementary Manual Kawasaki ZX-6R ABS TC 2019- (iLE-1-KIT) Splice the iLE Blue VSS wire to the Red/Yellow wire of the ABS connector. Optional: Connect the iLE Black/Green wire to the Green/Yellow wire of the Front Brake switch. (Gray, 6-pole connector under the airbox) Optional: Connect the iLE Black/White wire to the Yellow/White wire of the Throttle...
- Page 4 iLogger easy Supplementary Manual Kawasaki ZX-6R ABS TC 2019- (iLE-1-KIT) Optional: Connect the iLE Pink wire to the Green/Red wire of the Gear position sensor. (Black, 6-pole connector under the fuel tank) Optional: Connect the iLE White wire to the White/Green wire of the Engine coolant temperature sensor.
- Page 5 iLogger easy Supplementary Manual Kawasaki ZX-6R ABS TC 2019- (iLE-1-KIT) Mount the GPS receiver on the tail frame. Connect the GPS connector to the iLE module. Typical position for the iLE module. Secure the unit properly. w w w . h e a l t e c h - e l e c t r o n i c s . c o m...
