iLogger easy

Supplementary Manual

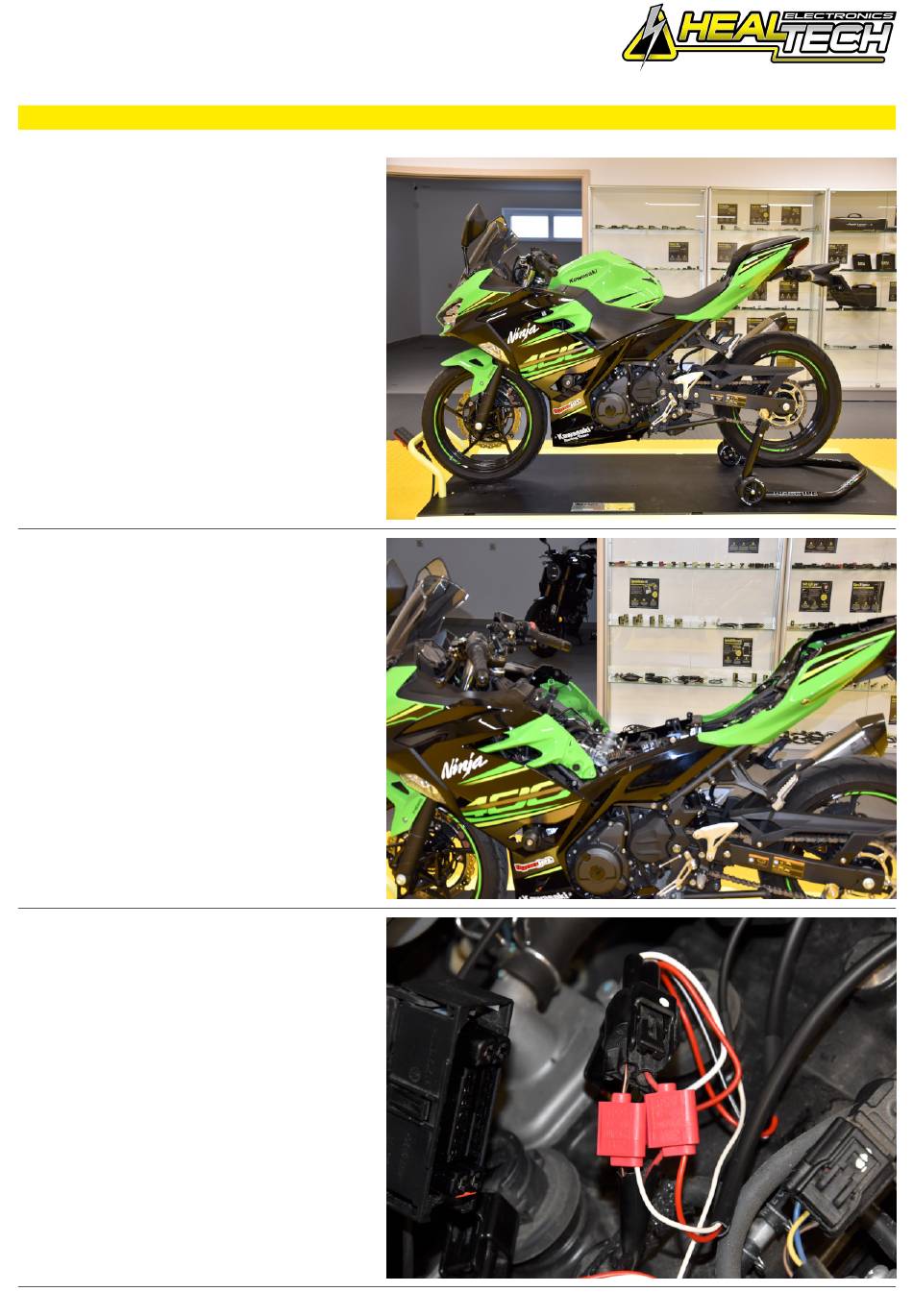

Kawasaki Ninja 400 ABS 2018- (iLE-1-KIT)

Secure the bike on a stand.

Remove the black covers from the fuel

tank.

Connect the iLE-H-PWR Red wire to the

Red wire of the ignition coil

connector.(Switched +12V)

Connect the iLE-H-PWR White wire to

the Black/Orange wire of the ignition coil

connector.(RPM)

w w w . h e a l t e c h - e l e c t r o n i c s . c o m

1/5

Table of Contents

Do you have a question about the iLogger easy and is the answer not in the manual?

Page 1 Supplementary Manual Kawasaki Ninja 400 ABS 2018- (iLE-1-KIT) Secure the bike on a stand. Remove the seats. Remove the black covers from the fuel tank. Remove the fuel tank and the airbox. Connect the iLE-H-PWR Red wire to the Red wire of the ignition coil connector.(Switched +12V)
Page 2 Supplementary Manual Kawasaki Ninja 400 ABS 2018- (iLE-1-KIT) Connect the iLE Black wire terminal to the battery negative terminal. Connect the Red, Black and White wires to the green terminal block as show on the photo. Connect the green terminal block to the iLE modul.
Page 3 Supplementary Manual Kawasaki Ninja 400 ABS 2018- (iLE-1-KIT) Splice the iLE Blue VSS wire to the Green wire of the ABS connector. Optional: Connect the iLE Black/Green wire to the Blue/Red wire of the Front Brake switch. (Green, 6-pole connector under the airbox)
Page 4 Supplementary Manual Kawasaki Ninja 400 ABS 2018- (iLE-1-KIT) Optional: Connect the iLE White wire to the Orange wire of the Engine coolant temperature sensor. (Black, 2-pole connector under the airbox) Optional: Connect the iLE Green wire to the Light Green wire of the Gear position sensor.
Page 5 Supplementary Manual Kawasaki Ninja 400 ABS 2018- (iLE-1-KIT) Typical position for the iLE module. Secure the unit properly. w w w . h e a l t e c h - e l e c t r o n i c s . c o m...
