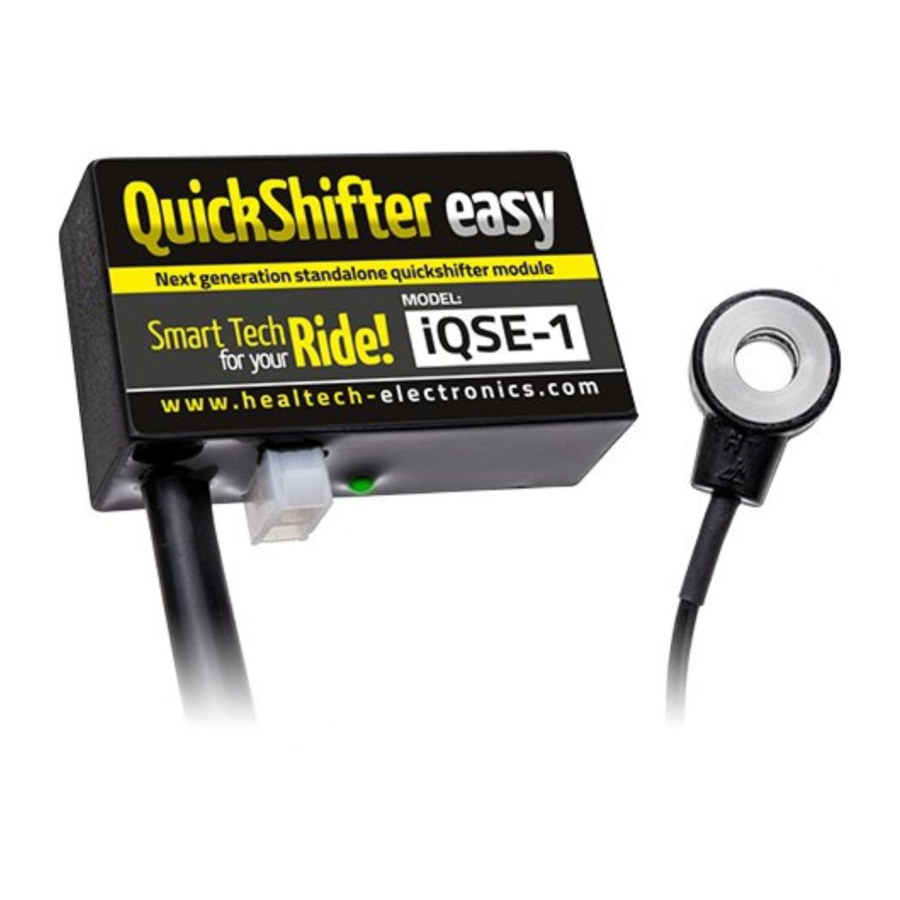

QuickShifter easy

Supplementary Manual

Kawasaki W800 2011- (iQSE-1 + QSH-P2T)

Secure the bike on a stand.

Locate the ignition coil terminals under

the fuel tank.

Splice the QSH White wire to the Black

wire of the coil by using the supplied red

wire tap connector.

w w w . h e a l t e c h - e l e c t r o n i c s . c o m

1/3

Table of Contents

Do you have a question about the Kawasaki W800 2011 and is the answer not in the manual?

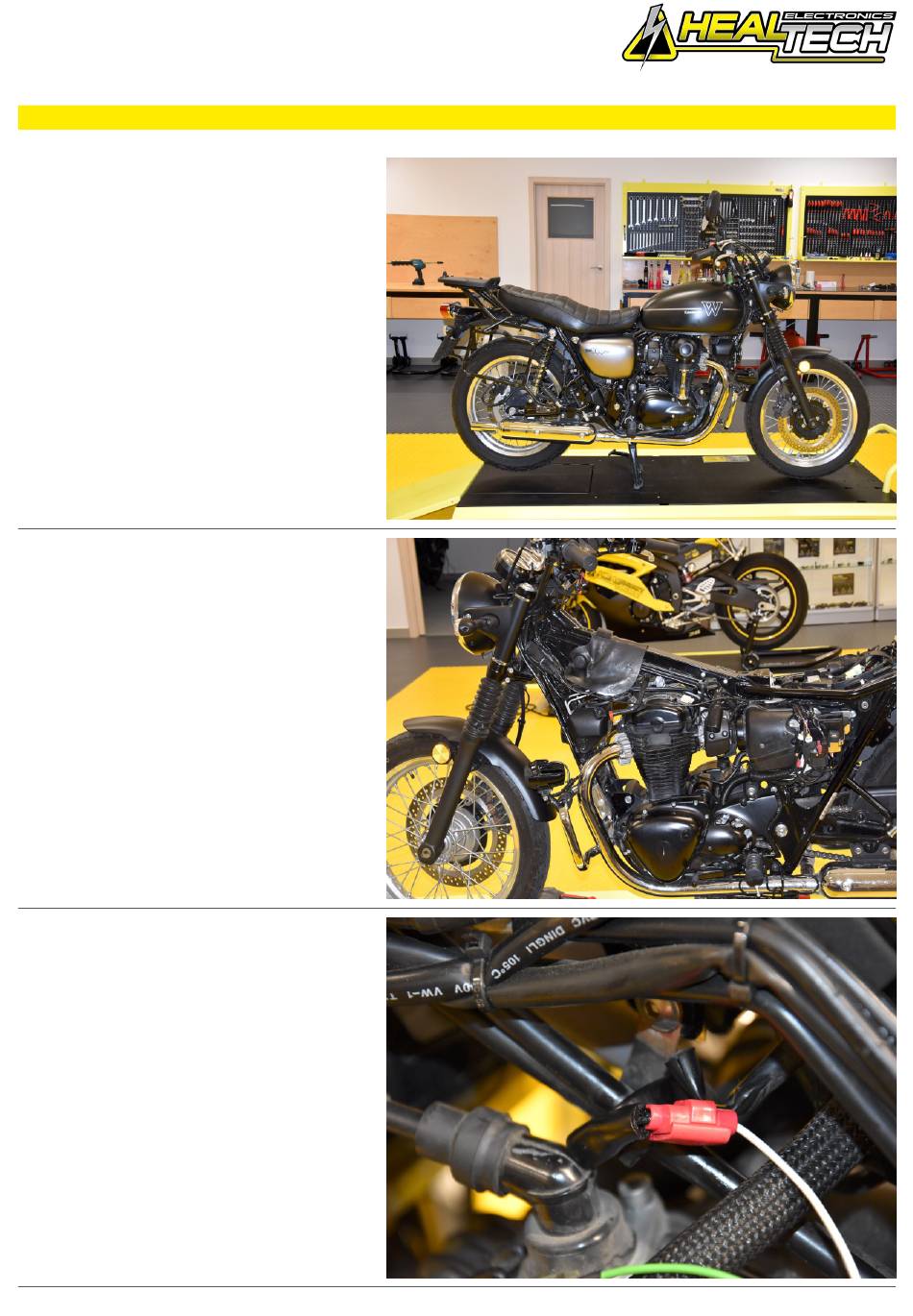

Page 1 QuickShifter easy Supplementary Manual Kawasaki W800 2011- (iQSE-1 + QSH-P2T) Secure the bike on a stand. Remove the seat and the side covers. Remove the fuel tank. Locate the ignition coil terminals under the fuel tank. Splice the QSH White wire to the Black wire of the coil by using the supplied red wire tap connector.
Page 2 QuickShifter easy Supplementary Manual Kawasaki W800 2011- (iQSE-1 + QSH-P2T) Take off the Red terminal from the coil. Connect the QSH Green terminal to this coil terminal. Connect the Red terminal to the QSH Red wire terminal. Isolate the unused QSH Green terminal with tape.
Page 3 QuickShifter easy Supplementary Manual Kawasaki W800 2011- (iQSE-1 + QSH-P2T) Typical position for the QuickShifter easy. Secure the unit properly. w w w . h e a l t e c h - e l e c t r o n i c s . c o m...
