QuickShifter easy
Supplementary Manual
Ohvale GP-0 160 2019- (iQSE-2 + QSH-OV2)

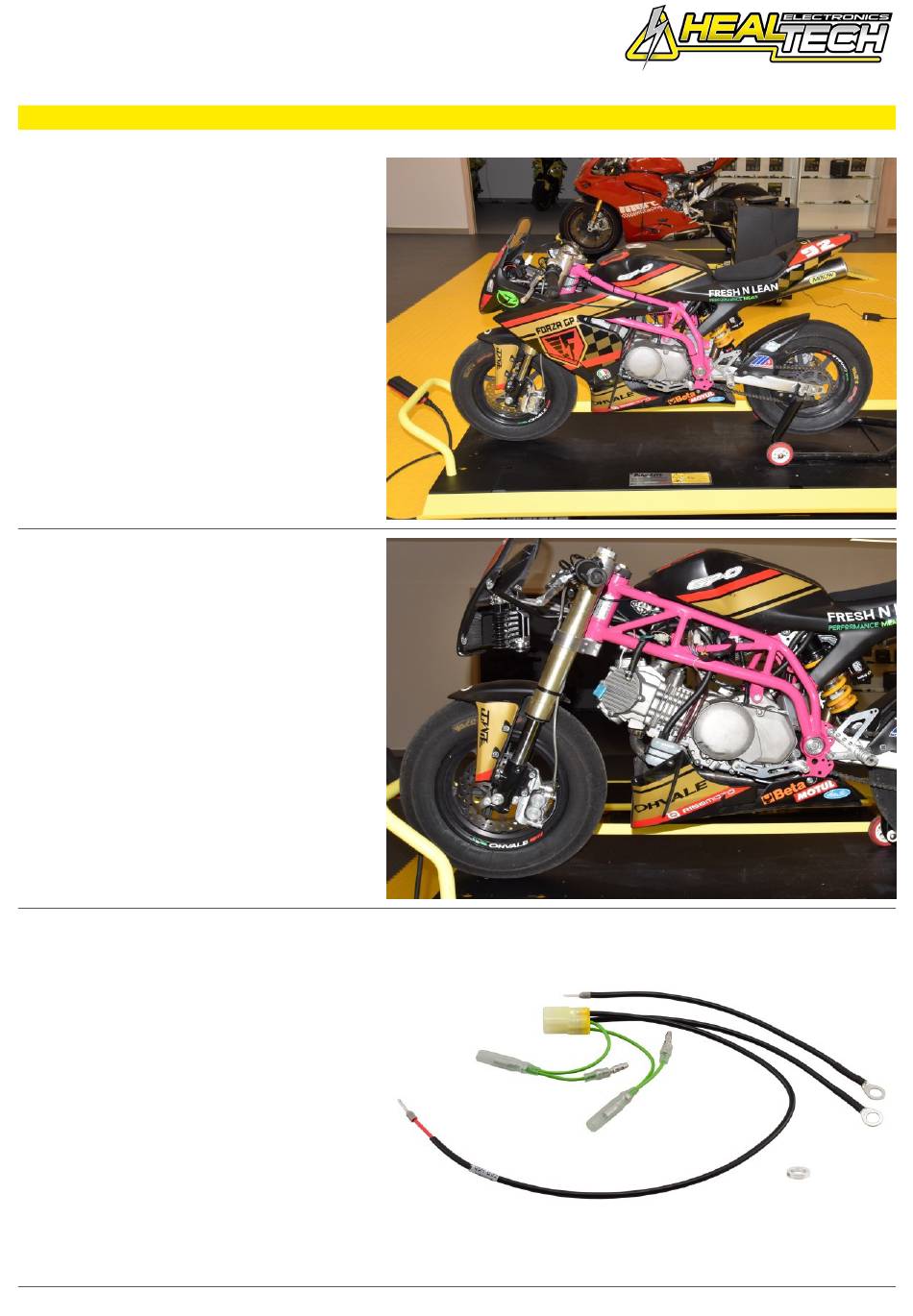

Secure the bike on a stand.
Remove the left side fairing.
The QSH-OV2 harness kit is required for
the installation.
Note that the 2,2mm thick spacer is
included in this kit, which is needed for
the sensor installation.
w w w . h e a l t e c h - e l e c t r o n i c s . c o m
1/4
Advertisement
Related Manuals for HealTech Electronics QuickShifter easy
Summary of Contents for HealTech Electronics QuickShifter easy
- Page 1 QuickShifter easy Supplementary Manual Ohvale GP-0 160 2019- (iQSE-2 + QSH-OV2) Secure the bike on a stand. Remove the left side fairing. The QSH-OV2 harness kit is required for the installation. Note that the 2,2mm thick spacer is included in this kit, which is needed for the sensor installation.
- Page 2 QuickShifter easy Supplementary Manual Ohvale GP-0 160 2019- (iQSE-2 + QSH-OV2) Locate the two 1-pole plugs coming from the alternator and disconnect them. (1-pole plugs with Blue/White and Green/White wire colors.) Connect the QSH Green wire terminals in-line with the 1-pole bike plugs.
- Page 3 QuickShifter easy Supplementary Manual Ohvale GP-0 160 2019- (iQSE-2 + QSH-OV2) Replace the bolt of the shift lever by the supplied bolt and add the two spacers, washers and sensor exactly as shown on this photo. (The 4,4mm thick spacer comes with the sensor, the 2,2mm thick spacer comes with the QSH-OV2 harness kit.)
- Page 4 QuickShifter easy Supplementary Manual Ohvale GP-0 160 2019- (iQSE-2 + QSH-OV2) Connect the 2-pole connector of the sensor to the unit. Mount the iQSE-2 unit with the supplied Velcro strip. Secure the unit properly with cable tie. Connect the QSH Red wire to the battery positive terminal via an on/off switch.
