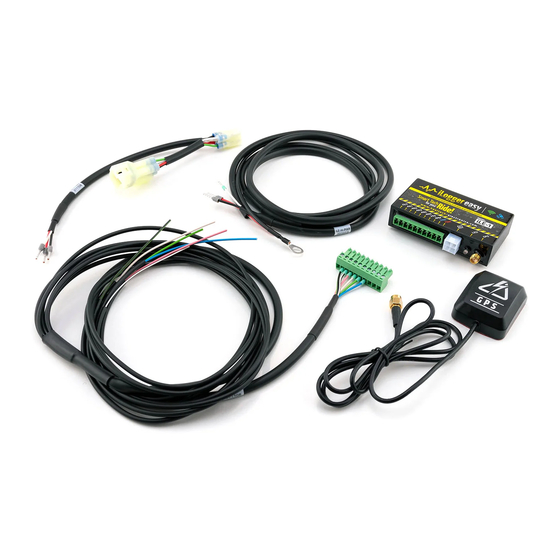

HealTech Electronics iLE-1-KIT Manual

Yamaha mt-07 abs 2014-

iLogger easy

Supplementary Manual

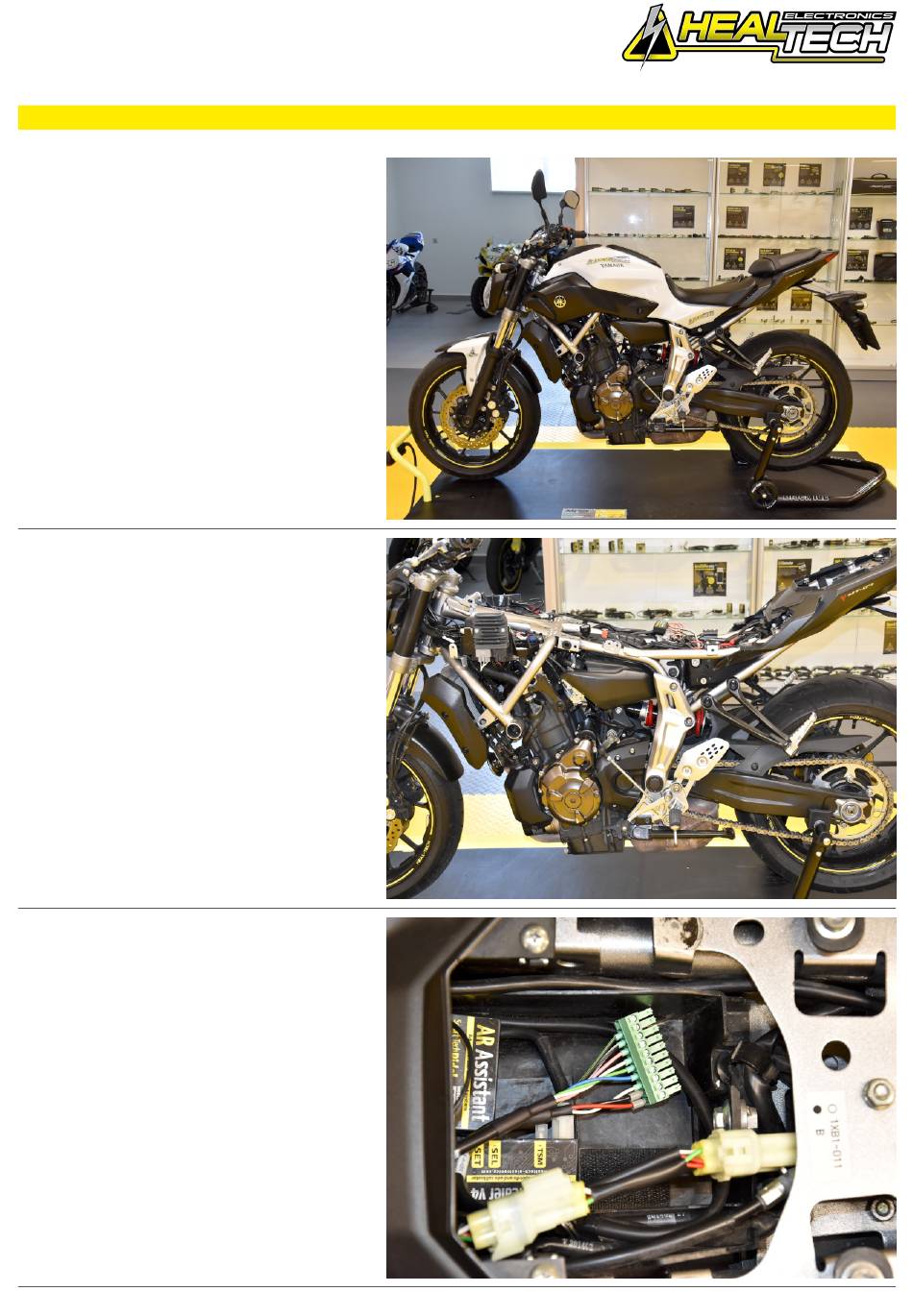

Yamaha MT-07 ABS 2014- (iLE-1-KIT)

Secure the bike on a stand.

Remove the plastic covers from the fuel

tank.

If the iLE is used together with the iQSE

quickshifter, plug the iLE-H-iQSE

connectors in-line with the 4-pole iQSE

connectors, then connect the Red, Black

and White wires to the green terminal

block as show on the photo.

(Without the iQSE connect the iLE-H-PWR

Red and White wire to the ignition coil

connectors and the iLE Black wire terminal

to the battery negative terminal.)

w w w . h e a l t e c h - e l e c t r o n i c s . c o m

1/4

Table of Contents

Do you have a question about the iLE-1-KIT and is the answer not in the manual?

Page 1 Supplementary Manual Yamaha MT-07 ABS 2014- (iLE-1-KIT) Secure the bike on a stand. Remove the seats. Remove the plastic covers from the fuel tank. Remove the fuel tank. If the iLE is used together with the iQSE quickshifter, plug the iLE-H-iQSE...
Page 2 Supplementary Manual Yamaha MT-07 ABS 2014- (iLE-1-KIT) Connect the green terminal block to the iLE modul. Splice the iLE Blue VSS wire to the White/Yellow wire of the ABS connector. Optional: Connect the iLE Black/Green wire to the Black/Blue wire of the Front Brake switch behind the headlight.
Page 3 Supplementary Manual Yamaha MT-07 ABS 2014- (iLE-1-KIT) Optional: Connect the iLE Black/White wire to White wire of the Throttle position sensor at the ECU connector. Optional: Connect the iLE Pink wire to the Green/White wire of the Engine coolant temperature sensor at the ECU connector.
Page 4 Supplementary Manual Yamaha MT-07 ABS 2014- (iLE-1-KIT) Optional: Connect the iLE Green wire to the Green/Red wire of the Oil pressure switch over the right footpeg. Mount the GPS receiver on the tail fairing. Connect the GPS connector to the iLE module.
