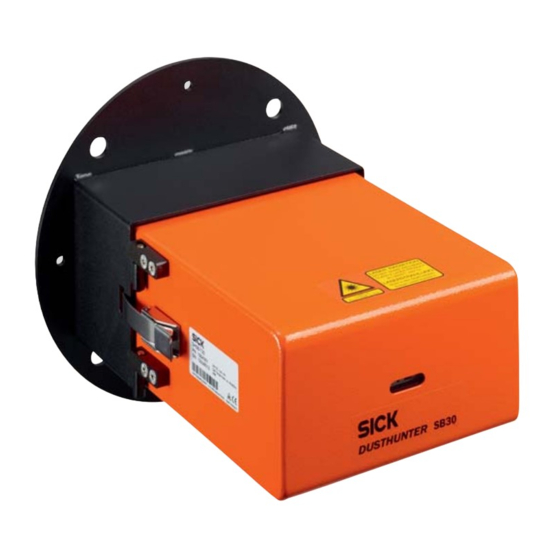

Summary of Contents for SICK DUSTHUNTER SB30

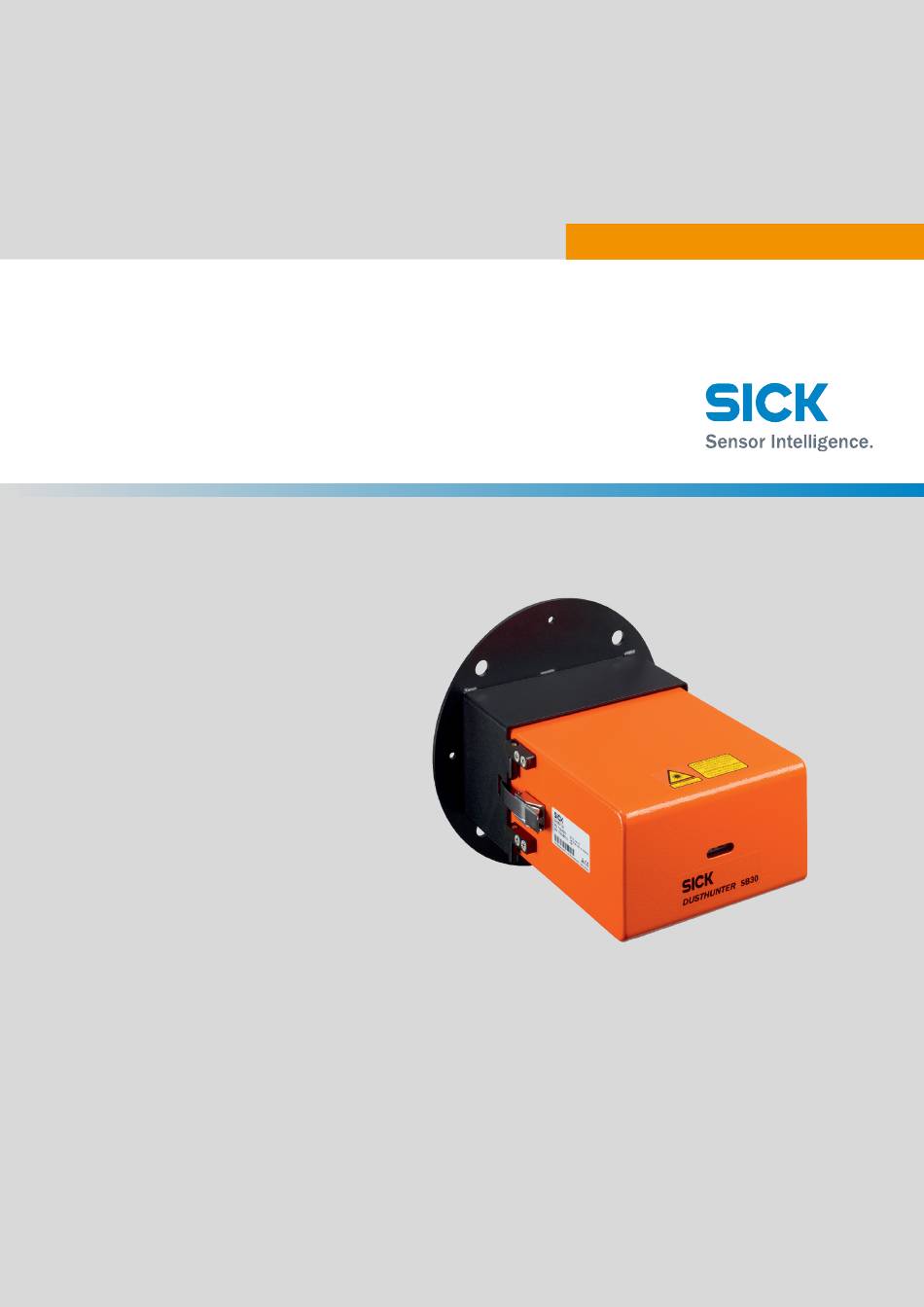

  • Page 1 Title Page MMMOPERATING INSTRUCTIONS MMMI O P E R A T I N G I N S T R U C T I O N S DUSTHUNTER SB30 Scattered Light Dust Measuring Device...

  • Page 2: Legal Information

    Original document This document is an original document of SICK Engineering GmbH O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Function check................21 3.5.4 Test equipment for linearity test ..........22 8026957/1HSU/V2-0/2024-07 | SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...
  • Page 4 7.3.4 Putting the purge air unit into operation ........39 O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07 | SICK Subject to change without notice...
  • Page 5 9.4.2 Connection with optional MCU control unit .........52 8026957/1HSU/V2-0/2024-07 | SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...
  • Page 6 12.1 General......................77 12.2 Maintenance on the sender/receiver unit ..........78 O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07 | SICK Subject to change without notice...
  • Page 7 16.2 Electrical protection ................... 100 16.3 Approvals ....................100 8026957/1HSU/V2-0/2024-07 | SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 8: About This Document

    Hazard by laser radiation Hazard for the environment/nature/organic life O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 9: Warning Levels And Signal Words

    8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 10: For Your Safety

    ● again by authorized personnel complying with the applicable safety regulations. O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 11: Hazard Through Hot And/Or Aggressive Gases And High Pressure

    (see “Return delivery”, page 88). 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 12: Warning Information On Device

    DUSTHUNTER SB30 is not approved for operation in potentially explosive atmospheres (in accordance with DIN EN 60079). O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK...

  • Page 13: Requirements On The Personnel's Qualification

    (e.g. with a blind flange), “Flange with tube”, page 93). 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 14: Safety Information And Protective Measures

    ▸ Secure the device against unallowed or unintentional start-up. O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 15: Product Description

    (after gravimetric comparison measurement) Measuring principle: Scattered light measurement (backwards) ● 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 16: Device Variants

     Connection provided by customer  Operation via PC O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...
  • Page 17  Connection provided by customer  Operation via PC  MCU-P control unit 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 18: Flange With Tube

    A weather hood is strongly recommended for outdoor use. This prevents rainwater entering. O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 19: Mcu Control Unit (Option)

    Explosion protection certification - N: None Software - E: Emission 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 20: External Purge Air Unit (Option)

     Dust laden exhaust gas Fig. 6: Measuring principle O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 21: Measuring Distance

    70% is output for very low dust concentrations (< approx. 1 mg/m³). 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 22: Test Equipment For Linearity Test

    (see “Device check accessories”, page 99). O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 23: Interfaces

    DUSTHUNTER measuring device (see “SOPAS ET”, page 51). 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 24: Project Planning

    O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK...

  • Page 25: Selecting The Flange With Tube

    (see “MCU control unit”, page 94). 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 26: Installation Location

    If the measuring device has been operated without a purge air supply, it should be returned to the factory for testing. O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK...

  • Page 27: Project Checklist

    “Specifications”, page protection, observe lightning protection and external interference. 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 28: Transport And Storage

    The environmental conditions in the Technical data must also be observed during storage (see “Specifications”, page 89). O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 29: Mounting

    Installation is carried out according to the sequence in this Section, the sender/receiver unit is not installed until commissioning. 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 30: Mounting The Optional Light Trap

    10). 6 Close off the flange opening after fitting to prevent gas escaping. O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 31: Laying Purge Air Hoses

    2 Screw the control unit tight to the four mounting brackets. 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...
  • Page 32 All dimensions in mm Fig. 13: Clearance for MCU-P control unit (with integrated purge air unit) O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK...

  • Page 33: Fitting The Optional Weather Hood For Sender/Receiver Unit

    For information on the purge air unit, see the Operating Instructions of the purge air unit (SLV4) on the enclosed product data medium. 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 34: Electrical Installation

    – with sealing plugs: 5 Nm, – with inserted cable: 10 Nm (M20) or 12 Nm (M25). O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK...

  • Page 35: Connection Overview

    – With PC and SOPAS ET – USB service adapter required 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 36: Pin Assignments Of Plug Connector

    DI2 Function check/ linearity measurement RS485 B (Service, MCU) RS485 A (Service, MCU) O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 37: Connecting Cables Of Plug Connectors

    Only use shielded lines with twisted pairs (see “Information on electrical connection cables”, page 34). 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 38: Overview Of Electrical Connection Steps For Device Without Mcu

    For information on the purge air unit, see the Operating Instructions of the purge air unit (SLV4) on the enclosed product data medium. O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK...

  • Page 39: Installing The Non-Return Valve Option

    2 Switch on the purge air supply. 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 40: Overview Of Electrical Connection Steps For Device With Mcu

     Optional interface module Fig. 19: MCU component layout O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 41: Connecting The Sender/Receiver Unit To The Mcu Control Unit

    ▸ Close off unused cable glands with blind caps. 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 42: Connection Diagram Sender/Receiver Unit - Mcu Control Unit

    Socket Fig. 20: Connection diagram sender/receiver unit – MCU control unit O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 43: Mcu Processor Board Connections

    For information on the purge air unit, see the Operating Instructions of the purge air unit (SLV4) on the enclosed product data medium. 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 44: Commissioning

    (800 mm). If this leads to a low zero point stability due to the background light, the short immersion depth (400 mm) should be set. O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK...

  • Page 45: Opening The Sender/Receiver Unit

    Fig. 23: Sender/receiver unit opened  Receiver plug connector  Processor board 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 46: Changing The Mounting Ring On The Tube

     5 Reassemble the sender/receiver unit in reverse sequence. O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 47: Fitting And Connecting The Sender/Receiver Unit

    The operating status “Operation” is shown on the display. ● 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 48: Parameter Settings

    Fig. 26: Processor board setting options O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 49: Termination

    Addresses 1...8 are permitted whereby each address in the data bus may only be used by one device. 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 50: Rotary Switch S1 Measuring Range

    – DI3 not connected (+5V): Parameter set for measuring range 1 active. – DI3 connected to Gnd: Parameter set for measuring range 2 active. O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK...

  • Page 51: Sopas Et

    “Measurement” status. Fig. 28: SOPAS ET menu: DHSB30/Maintenance/Maintenance 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 52: Connecting To The Device

    10 Assign a name for this search. 11 Click “Finish”. O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 53: System Configuration

    57600 baud; 8 data bits; no parity; 1 stop bit (57600,8,e,1) Address (DIL switch “addr”) 1 (ON/off/off/off) 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 54: Resetting Parameters

    O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK...

  • Page 55: Application Parameters

    “Parameterization with SOPAS ET”, page Fig. 30: SOPAS ET menu: Configuration/Application parameter 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 56: Application Settings

    1 and 2 as soon as the limit value for the measuring range switch-over is reached. O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK...

  • Page 57: Parameterization Of Measuring Range Switch-Over

    “Modbus Protocol Implementation”. This document can be found on the Product CD or at sick.de (search term “8026958”). 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 58: Filter Watch

    “Parameterization with SOPAS ET”, page 51 Fig. 33: SOPAS ET menu: SB30/Configuration/Filterwatch settings O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK...

  • Page 59: Regional Settings

    Fig. 34: SOPAS ET menu “Configuration/Regional settings“ 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 60: Event Log

    O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK...

  • Page 61: Setting The Function Check

    Not only device parameters but also data logs can be saved. Saving as a device file ● 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...
  • Page 62 Example for Parameter protocol Fig. 37: DUSTHUNTER SB30 Parameter protocol (example) O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 63: Gravimetric Comparison Measurement (Calibration)

    A restart is also recommended to complete the initial parameterization during commissioning. Standard commissioning is now completed. 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 64: Configuration Of Optional Mcu Control Unit

    (field “Application selection”). Click “Save selection” to assign to the control unit. Fig. 39: SOPAS ET menu: MCU/Configuration/Application selection O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 65: Connection To The Device Via Ethernet (Mcu Option)

    8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 66: Parameterizing The Ethernet Module (Control Unit Option)

    Damping time for the measured variable Setting range 1 ... 600 s O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 67: Setting The Function Check (Control Unit Option)

    The last value measured is output during control value determination (see “Function check”, page 21). 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 68: Parameterizing Analog Outputs (Control Unit Option)

    Fig. 44: SOPAS ET menu: MCU/Configuration/IO Configuration/Output Parameters O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...
  • Page 69 Defines a tolerance for resetting the limit value relay. 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 70: Parameterizing Analog Inputs (Control Unit Option)

    This parameter opens the “Analog input 4 - Oxygen” field to set the lower and upper range limit values and the Live Zero value. O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK...

  • Page 71: Display Settings (Optional Mcu Control Unit)

    Time until user level “Authorized Operator” is automatically switched off again. 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 72: Starting Measurement Mode (Mcu Option)

    5 Use this interface for communication. Fig. 48: Interface to be selected O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 73: Operation

    Fig. 50: Functional elements LC display of MCU control unit 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 74: Menus On The Display

    Limit high Set limit high in °C / hPa (password required) O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 75: Warning And Error Messages (Diagnosis)

    Display sensor error messages Warnings Display sensor warning messages 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 76: Parameterization On The Control Unit Display

    73) using the operating fields and save the selected type with “Save”. O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 77: Maintenance

    ● Replacement air filter, preliminary filter (for suction) ● 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 78: Maintenance On The Sender/Receiver Unit

     Receiver optics Fig. 51: Cleaning the optical interfaces O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 79: Maintenance On The Purge Air Supply

    8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 80: Mcu Control Unit With Integrated Purge Air Supply

    Fig. 52: Exchanging the filter element of the control unit with purge air supply O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK...

  • Page 81: Replacing The Button Cell In The Control Unit

    MCU control unit Fig. 53: Button cell exchange, MCU 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 82: Optional External Purge Air Unit

    Reconnect the purge air hose to the filter outlet using the hose clamp. ▸ Switch the fan on again. O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 83: Troubleshooting

    8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 84: Status Display Led And Display

    Malfunction - operating state: Malfunction Maintenance request Yellow Warning message O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 85: Sender/Receiver Unit Malfunctions

    (see “Connections on the device”, page 35). 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 86: Malfunctions Of Optional Control Unit

    ● MCU(DH Ex) in Test mode. enabled (“Maintenance” directory) O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 87: Decommissioning

    Disconnect the MCU control unit from the supply voltage. 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 88: Return Delivery

    ▸ Observe the applicable local regulations for disposal. O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 89: Technical Data

    : In temperature range - - 20 °C ... +50 °C 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...
  • Page 90 SOPAS ET operation via SOPAS service kit RS485 or connection of the MCU option O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK...
  • Page 91 (e.g. UNITRONIC LiYCY (TP) 4 x 2 x 0.25 mm² from LAPPKabel; not suitable for underground installation) 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 92: Dimensions, Part Nos

    Sender/receiver unit DHSB-T30 400 mm ET 1116606 Sender/receiver unit DHSB-T30 800 mm ET 1116607 O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 93: Flange With Tube

    Blind flange Ø265 mm, K225 mm (without seal) 4067231 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 94: Mcu Control Unit

    Fig. 60: MCU-N control unit Ø 8 Fig. 61: MCU-P control unit O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...
  • Page 95 - 1 Ethernet interface module, COLA-B Further variants available on request 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 96: External Purge Air Unit

    Part number Weather hood for purge air unit 2084180 O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...
  • Page 97 Designation Part number Weather hood SB30 flange k225 2118825 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 98: Light Trap

    2117482 (24 V, AO, ModBus) incl. 7-pin socket (plug connector 1) O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK Subject to change without notice...

  • Page 99: Purge Air Supply

    *The number is a recommendation for two years of operation with average use 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...

  • Page 100: Appendix

    The measuring device DUSTHUNTER SB30 is DNV-certified for maritime applications according to DNV CG-0339 O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 8026957/1HSU/V2-0/2024-07| SICK...
  • Page 101 APPENDIX 8026957/1HSU/V2-0/2024-07| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER SB30 Subject to change without notice...
  • Page 102 E-Mail sales@sick.co.nz United Arab Emirates China Norway E-Mail sick@sick.no USA/Mexico Denmark Poland E-Mail sick@sick.dk Finland Romania Vietnam France Russia Gemany Singapore Great Britain Slovakia E-Mail mail@sick-sk.sk Hong Kong Slovenia Hungary South Africa www.sick.com SICK AG | Waldkirch | Germany | www.sick.com...

Table of Contents
