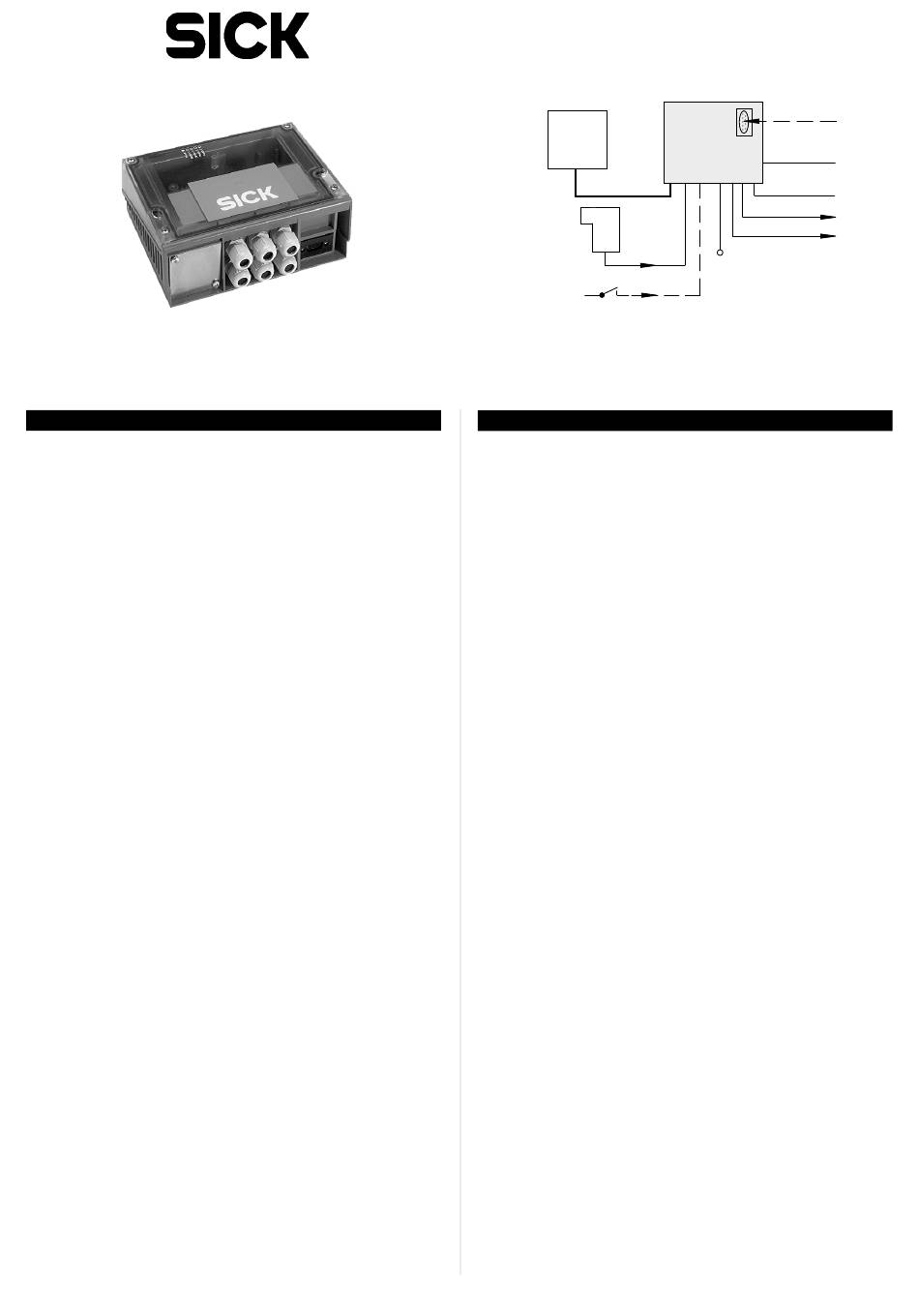

C D M 4 2 0 - 0 0 0 6
A ns chl u ssm od ul
B e t r i e b s a n l e i t u n g
1. Bestimmungsgemäße Verwendung
Modular aufgebautes Anschlussmodul (im Folgenden CDM420
genannt) zum Anschluss eines SICK-Identifikationssensors (im
Folgenden ID-Sensor genannt) an Host, CAN-Sensor-Netzwerk,
Feldbussystem sowie an Peripherie und Stromversorgung. Der
ID-Sensor ist hierzu mit einer SICK-Standardleitung außen an der
15-pol. D-Sub-Dose des CDM420 anzuschließen. Über Leitungs-
verschraubungen und Anschlussklemmen werden die Stromver-
sorgung zugeführt und Signale auf Leitungen verteilt. Optionaler
Feldbusanschluss (Gateway) über systemabhängige Steckverbin-
dungen auf der Frontblende. Eine ggf. im ID-Sensor integrierte
Ethernet-Schnittstelle wird nicht über das CDM420 angeschlos-
sen.
Unterstützte ID-Sensoren
*)
basierte Codeleser Lector6xx, RFID-Schreib-/Lesegeräte RFH6xx
und RFU6xx
2. Produkteigenschaften
Basisgerät zur optionalen Aufnahme folgender Module:
Parameter-Cloning-Modul CMC600 für externe Speicherung der
Konfigurationsparameter des ID-Sensors. Dient auch der Akti-
vierung von Betriebsarten sowie der Erweiterung des ID-Sen-
sors um jeweils 2 digitale Schaltein- und -ausgänge.
Display-Modul CMD400, eingebaut in Deckelvariante, zur Anzei-
ge von Leseergebnissen and Lesediagnosedaten des ID-Sen-
sors. Verwendung auf Anfrage. Allgemein nicht möglich bei
gleichzeitiger Verwendung des Power-Supply-Moduls CMP490.
Feldbusmodul CMF400 zur Anbindung des ID-Sensors an PRO-
FIBUS DP, DeviceNet™ oder Ethernet TCP/IP. Verwendung auf
Anfrage. Für RFU63x und RFU65x nicht geeignet.
Power-Supply-Modul CMP490 zur Stromversorgung des ID-Sen-
sors aus einem Wechselstromnetz
9-pol. D-Sub-Stecker intern: Anschluss der Aux-Schnittstelle (seri-
ell RS-232) des ID-Sensors an PC (Konfiguration und Diagnose)
Anschlussklemmen für serielle Host-Schnittstelle, CAN-Bus,
Schaltein- und -ausgänge, Stromversorgung, Abschirmung
Durch Deckel sichtbar: LEDs zur Anzeige von aktiven Schaltein-
und -ausgängen sowie Stellungen der Konfigurationsschalter
Schutzart IP 65
Betriebsumgebungstemperatur –35 °C bis +40 °C
*) CDM420-0006 nicht geeignet für Barcodescanner CLV4xx
8014808/YTX0/2016-03
: Barcodescanner CLV6xx, kamera-
© SICK AG · Germany · All rights reserved · Subject to change without notice · Irrtümer und Änderungen vorbehalten
ID
sensor
Licht-
schranke
(Lesetakt)
Photo reflex
"Sensor 1"
switch
(Reading clock)
"Sensor 2"
Schalter/switch
Teach-in matchcode
Co nne c t io n M o du le
O p e r a t i n g I n s t r u c t i o n s
1. Intended use
Modular designed connection module (referred to as CDM420
below) for connecting one SICK identification sensor (referred
to as ID sensor below) to the host, CAN Sensor Network, field-
bus system as well as to the peripheral equipment and power
supply. Connect the ID sensor using a SICK standard cable to the
externally 15-pin D-Sub female connector of the CDM420. Via
cable glands and terminals the power supply is connected and
signals are distributed to cables. Optional fieldbus connection
(gateway) via system depending on plug-in connections on face
plate (front). The CDM420 is not used to connect an ID sensor
with integrated Ethernet interface to the Ethernet.
Supported ID sensors
: CLV6xx bar code scanners, Lector6xx
*)
image-based code readers, RFH6xx and RFU6xx RFID write/read
devices
2. Features
Basic device for integrating optionally the following modules:
CMC600 parameter cloning module for saving the ID sensor's
configuration parameters externally. Also for activation of oper-
ating modes as well as for extension of the ID sensor with each
of two digital switching inputs and outputs.
CMD400 display module (installed in a cover variant) for dis-
playing the reading results and diagnosis data of the ID sensor.
Application on request. Cannot be installed generally when
using the CMP490 power supply module too.
CMF400 fieldbus module for connecting the ID sensor to
PROFIBUS DP, DeviceNet™ or Ethernet TCP/IP. Application on
request. Not applicable with RFU63x and RFU65x.
CMP490 power supply module for supplying power to the ID
sensor from an AC power line
9-pin internal D-Sub male connector: for connecting the Aux inter-
face (serial RS 232) of the ID sensor to a PC for configuring and
diagnosing
Terminals for serial host interface, CAN bus, switching inputs and
outputs, power supply, and shield
Externally visible LEDs for displaying active switching inputs and
outputs, as well as switch settings for module configuration.
Enclosure rating IP 65
Operation ambient temperature –35 °C to +40 °C
*) CDM420-0006 not suitable for CLV4xx bar code scanners
"Aux"
PC
"CAN"
CDM420-0006
CAN bus
"Host"
HOST
"Result 1"
SPS/
"Result 2"
PLC
V
S
1 # 8
