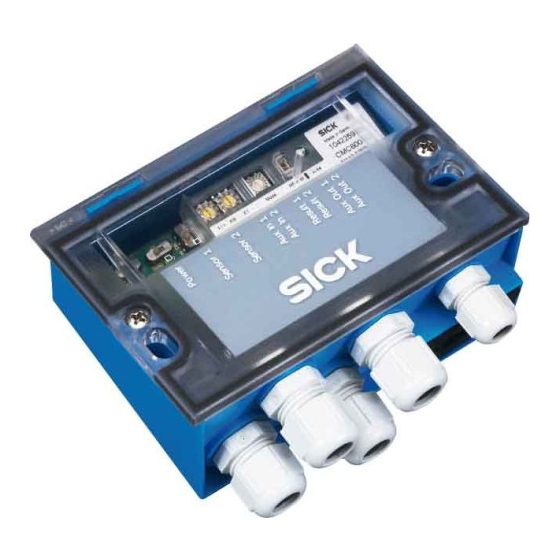

Connection module

Advertisement

C D B 6 2 0
Anschlussmodul
B e t r i e b s a n l e i t u n g
1. Produkteigenschaften
Basis-Anschlussmodul zum Anschluss eines SICK Identifikations-
sensors (ID-Sensor) an Host, CAN-Scanner-Netzwerk, Peripherie-
geräte und Stromversorgung
Unterstützte Identifikationssensoren:
Barcodescanner CLV 42x . . . 4 5 x , CLV6xx (nicht CLV69x),
CLV480 oder CLV /X 4 9 0 , kamera-basierte Code Reader
LECTOR
620, I C R 84x-2/85x-2 und RFID-Interrogatoren RFH6xx
Basis zur Aufnahme eines optionalen CMC600 (Connection
Module Cloning) für externe Speicherung der Konfigurations-
parameter des Identifikationssensors. Dient auch der Aktivierung
von Betriebsarten und Erweiterung des Sensors um jeweils zwei
digitale Schaltein- und -ausgänge (abhängig vom Sensortyp)
9-pol. D-Sub-Stecker intern, für Anschluss der seriellen Aux-
Schnittstelle (RS-232) an PC zur Konfiguration/Diagnose des
Identifikationssensors
Klemmen für serielle Host-Schnittstelle, CAN-Bus (CDB620-101:
2x M12-Steckverbindungen), Schaltein- und -ausgänge, Strom-
versorgung, Schirmung
Von außen sichtbar: LEDs zur Anzeige von aktiven Schaltein- und
ausgängen sowie Schalterstellungen der Modulkonfiguration
Schutzart IP 65 (nicht durch UL geprüft)
Betriebsumgebungstemperaturbereich –35 ... +40 °C
Montierbar bei geschlossenem Deckel
Wartungsfrei
UL-zertifiziert bei Verwendung eines folgenden Netzgeräts:
UL60950-1:
LPS- oder Class-2-Netzgerät
UL508:
Class-2-Netzgerät
Weitere Produktinformationen, EG-Konformitätserklärung,
PC-Programm „CLV-Connect":
 Siehe Produktseite im Internet (www.sick.com)
2. Voraussetzungen zur Installation und Inbetriebnahme
Anschlusspläne in CLV-Connect (auf DVD/CD „Manuals &
Software", die dem Sensor beiliegt, oder via Internet)
Versorgungsspannung DC 24 V, erzeugt nach IEC 742
Montage-, Anschluss- und Konfigurationsarbeiten nur im Be-
triebsumgebungstemperaturbereich 0 ... +40 °C vornehmen!
8012119/WE04/2012-07
© SICK AG · Germany · All rights reserved · Subject to change without notice · Irrtümer und Änderungen vorbehalten
ID
Sensor
Licht-
schranke
(Lesetakt)
Photo reflex
"Sensor 1"
switch
(Reading clock)
"Sensor 2"
Schalter/switch
Teach-in matchcode
Connection Module
O p e r a t i n g I n s t r u c t i o n s

1. Features

Basic module for connecting a SICK identification sensor
(ID sensor) to the host, CAN scanner network, peripheral
equipment, and power supply
Supported identification sensors:
Bar code scanners CLV 42x to 45x, CLV6xx (not CLV69x),
CLV480 or CLV /X 4 9 0 , image-based code readers LECTOR
I C R 84x-2/85x-2, and RDIF Interrogators RFH6xx
Basis for optional CMC600 (Connection Module Cloning) inte-
gration for external storage of the identification sensor's configu-
ration parameters. Also for activation of operating modes as well
as for extension of the sensor with each of two digital switching
inputs and outputs (depends on sensor type)
9-pin internal D-Sub plug, for connecting the serial Aux interface
(RS 232) to a PC for configuring/troubleshooting the identifica-
tion sensor
Terminals for serial host interface, CAN bus (CDB620-101: 2 x
M12 connections), switching inputs/outputs, power supply, and
shield
Externally visible LEDs for displaying active switching inputs and
outputs, as well as switch settings for module configuration
Enclosure rating IP 65 (not tested by UL)
Operation ambient temperature range –35 to +40 °C
(–31 to +104 °F)
Installation possible with closed cover
Maintenance-free
UL certificated when the following power supply is used:
UL60950-1:
LPS or Class 2 power supply
UL508:
Class 2 power supply
Further Product Information, EC Conformity Declaration, "CLV-
Connect" PC Program:
 See product page on the Internet (www.sick.com)

2. Installation and Commissioning Requirements

Connection diagrams in CLV-Connect (on the "Manuals & Soft-
ware" DVD/CD, provided with the sensor or from the Internet)
24 V DC power supply generated in accordance with IEC 742
Perform mounting, electrical connection and configuration works
only at operation ambient temperature range 0 to +40 °C (+32
"Aux"
CMC600
"CAN"
CDB620
"Host"
"Result 1"
"Result 2"
"Out 1"
"Out 2"
"In 1"
"In 2"
10 ... 30 V DC
PC
CAN bus
HOST
SPS/PLC
SPS/PLC
620,
1 # 8
