- Page 1 ASSEMBLY INSTRUCTIONS Key-operated multi-point locks AS 2750 AS 2750 with T2 Window systems Door systems Comfort systems...
-
Page 3: Table Of Contents
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Contents ABOUT THIS DOCUMENTATION ....4 Adjustment of the Q-adjustment ....28 Target group ..........4 FUNCTIONAL TEST ........30 Product description ........4 Test when the door is open ......30 Producer and service ........4 Test when the door is closed ....... -
Page 4: About This Documentation
Producer and service • knowledge of professional work steps KFV Karl Fliether GmbH & Co. KG • knowledge of the applicable standards and direc- A company of the SIEGENIA GROUP tives Siemensstraße 10 • knowledge of applicable testing regulations 42551 Velbert •... -
Page 5: Intended Use
KFV - assembly instructions Multi-point locks key-operated, AS 2750 • knowledge of the regulations concerning occupa- • Only use AS 2750 according to the operating instruc- tional safety and accident prevention tions. • comprehension of technical correlations according Transport to state-of-the-art science and technology •... -
Page 6: Warning Notes Used
KFV - assembly instructions Multi-point locks key-operated, AS 2750 The warning notes are set up according to the following Foreseeable improper use principle: NOTICE SIGNAL WORD Damage to the main lock Type and source of danger The main lock of the multi-point lock could be dam- aged if you drill through the door leaf in the area of explanation of the type and source of danger the gear box. - Page 7 KFV - assembly instructions Multi-point locks key-operated, AS 2750 NOTICE NOTICE Damage to the lock and the frame parts Damage to the main lock The lock can be damaged if the locking elements are The main lock can be damaged if the lever handle in the locking position when the door is open.
-
Page 8: Scope Of Delivery And Components

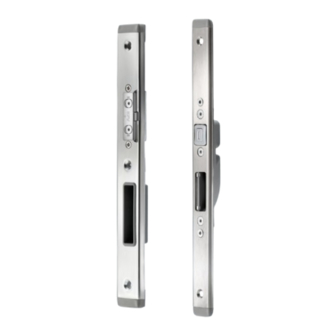

KFV - assembly instructions Multi-point locks key-operated, AS 2750 Scope of delivery and components The multi-point lock is equipped with two auxiliary boxes 1 of which each is equipped with two spring mounted soft lock latches. The multi-point lock is optionally available with a pre-mounted safety lock 2 . AS 2750 AS 2750 with T2 8/36... -
Page 9: Size Variants
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Size variants Dimen- Suitable for sion sash rebate variants height B296* 2170 1020 1505 - 1754 B298 2170 1020 1755 - 1880 B001 2170 1020 1881 - 2170 B003 2400 1020 2171 - 2400 Not available with hole group "T0"... -
Page 10: Dimensions Of The Lock Case
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Dimensions of the lock case Main lock type U, backset 35-65, PZ-dimension 92/94 Milling PZ dimension 11,5 Cylinder lock Backset 17,5 Dimensions of the auxiliary box and the safety lock T2 Auxiliary boxes T2 Safety lock Milling... -
Page 11: Assembly
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Assembly Screw recommendation The screw lengths and screw heads for the assembly must be Installation conditions and requirements chosen to ensure an adequate penetration into the material and that the faceplate of the multi-point lock is flush-mounted. For •... -
Page 12: Assembly Of Sash Side
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Assembly of sash side Changing the DIN orientation of the main lock latch PZ 2 f Insert a PZ2 screwdriver through the hole at the rear of the gear box. f Loosen the locking screw of the latch shaft with the PZ2 screw- driver until you can turn the latch. -
Page 13: Changing The Din Orientation Of The Latch In The Auxiliary Box
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Changing the DIN orientation of the latch in the auxiliary box SW 3 f Insert a 3 mm hexagon wrench into the hole on the rear side of the auxiliary box. f Loosen the locking screw of the latch shaft with the hexagon wrench until you can turn the... -
Page 14: Milling The Door Leaf
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Milling the door leaf Dimensions A to K see chapter 3.1 to 3.3 WARNING Danger of injury from swarf flying around rapidly During milling work, there will be swarf flying around. You can injure your eyes. -
Page 15: Milling For Safety Lock T2, Handle, Lever Handle And Cylinder Lock
KFV - assembly instructions Multi-point locks key-operated, AS 2750 5.3.1 Milling for safety lock T2, handle, lever handle and cylinder lock For dimensions H, D, E and L, see chap- ter 3.1 to 3.3. Routed pocket safety lock T2: [1] 16.0 mm [2] 134.0 mm [3] 40.5 mm [D] Backset... -
Page 16: Screwing The Multi-Point Lock Into Place
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Screwing the multi-point lock into place f Insert the multi-point lock in the milled door leaf. f Adjust the multi-point lock to the handle spindle [1]: 16/36 10.2021 H39.MFVRS016EN-00... - Page 17 KFV - assembly instructions Multi-point locks key-operated, AS 2750 f Screw the multi-point lock onto the door leaf: H39.MFVRS016EN-00 10.2021 17/36...
-
Page 18: Mounting The Fittings For Main Lock And T2
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Mounting the fittings for main lock and T2 Prior to assembly, check and observe the enclosed assembly instructions of the producer beachten. Before drilling, compare the drilling template for the fittings with the positions of the fixing holes of the gear box (see chapter 3.2). -
Page 19: Frame Side Assembly
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Frame side assembly Assembly specifications for SKG certified frame parts The dimensions for the vertical position must be exactly adhered to for the assembly of the frame parts. Consequently, it is ensured that the hook bolt can move fully into the locking position and achieve the specified minimum dimension for the grip into the frame part. -
Page 20: Milling The Frame
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Milling the frame For position determination and size variables, see chapter 3.1 WARNING Danger of injury from swarf flying around rapidly During milling work, there will be swarf flying around. You can injure your eyes. -
Page 21: Milling The Frame For The Safety Lock T2
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Milling the frame for the safety lock T2 For position determination and size variables, see chapter 3.1 WARNING Danger of injury from swarf flying around rapidly During milling work, there will be swarf flying around. You can injure your eyes. -
Page 22: Screwing Specifications For Skg Certified Frame Parts
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Screwing specifications for SKG certified frame parts 6.4.1 Timber frames Frame part for main lock 881-083 + 402-00031 C/D 3 piece 4.0x40 mm 3 piece 4,5x45 mm (SKH-certified) Frame part for auxiliary box with round bolt/hook bolt combination 2600-267-2W 3 piece 4.0x40 mm 3 piece 4,5x45 mm... -
Page 23: Mounting The Striker Plates
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Mounting the striker plates f Insert the striker plates into the millings intended for this purpose. f Screw the striker plates with the door frame into place: The striker plate for the safety lock T2 is optional. -
Page 24: Mounting The Locking Rail
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Mounting the locking rail f Insert the locking rail plates into the intended millings. f Then screw the locking rail to the door frame: The locking rail with the safety lock T2 is optional 24/36 10.2021... -
Page 25: Adjustment Of The Airgap
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Adjustment of the airgap Observe the assembly and operating instructions for the door hinges. f Adjust the airgap [1] between the secondary sash and the frame part according to the assembly in- structions of the door producer. -
Page 26: Adjustment Of The Replacement Part
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Adjustment of the replacement part The latch must engage in the replacement part with as little free play as possible when the door is closed. The replacement part is horizontally adjustable for this purpose. f Close the door. - Page 27 KFV - assembly instructions Multi-point locks key-operated, AS 2750 T 10 2.5 Nm f Tighten the two adjustment screws with the specified torque. f Close the door and check is the latch engages properly. Repeat the adjustments if neces- sary. H39.MFVRS016EN-00 10.2021 27/36...
-
Page 28: Adjustment Of The Q-Adjustment
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Adjustment of the Q-adjustment The Q-adjustment is moved via two eccentric screws [1] laterally by ± 2.5 mm, which changes the contact pres- sure of the door on the frame seal. •... - Page 29 KFV - assembly instructions Multi-point locks key-operated, AS 2750 f Turn the two eccentric screws [1] up to 90° to the right or left. T 10 1.3 Nm f Tighten the three fixing screws of the Q-adjustment. f Then close the door and lock with a single turn (2x by 360°)*.
-
Page 30: Functional Test
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Functional test Test when the door is open Check the functioning of the lever handle and the latch f Move the lever handle to the bottom. The lever handle must be able to move with ease. - Page 31 KFV - assembly instructions Multi-point locks key-operated, AS 2750 Projecting the locking elements f Turn the key in the locking direction with a single turn (2x 360°)*. The main lock deadbolt and the hook bolt of the auxiliary boxes must extend completely and with ease.
-
Page 32: Test When The Door Is Closed
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Test when the door is closed Check that the latch engages f Close the door. The door must close easily. The latch of the main lock must engage properly in the replacement part. -
Page 33: Checking The Safety Lock T2
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Retracting the locking elements f Turn the key in the release direction with a single turn (2x 360°)*. The locking elements must retract smoothly and completely. f Open the door. The door must open easily. * depending on the cylinder lock Checking the safety lock T2 Check lock... - Page 34 KFV - assembly instructions Multi-point locks key-operated, AS 2750 Check the release with the handle The handle must be in the locking position in the blocking clip. f Close the door. f Turn the handle in the release position. The deadbolt must move with ease out of the opening of the safety catch.
-
Page 35: Troubleshooting
KFV - assembly instructions Multi-point locks key-operated, AS 2750 Troubleshooting Malfunction of the lever handle The lever handle does not return to its original position by itself. f Check that the lever handle is correctly seated. • The lever handle must not have any contact with the rose or the plate or the gear box. f Check the tightening torque of the screwing of the handle set. - Page 36 www.siegenia.com...
