ALU accessories
ALU concealed turning lock
Item Pieces
1

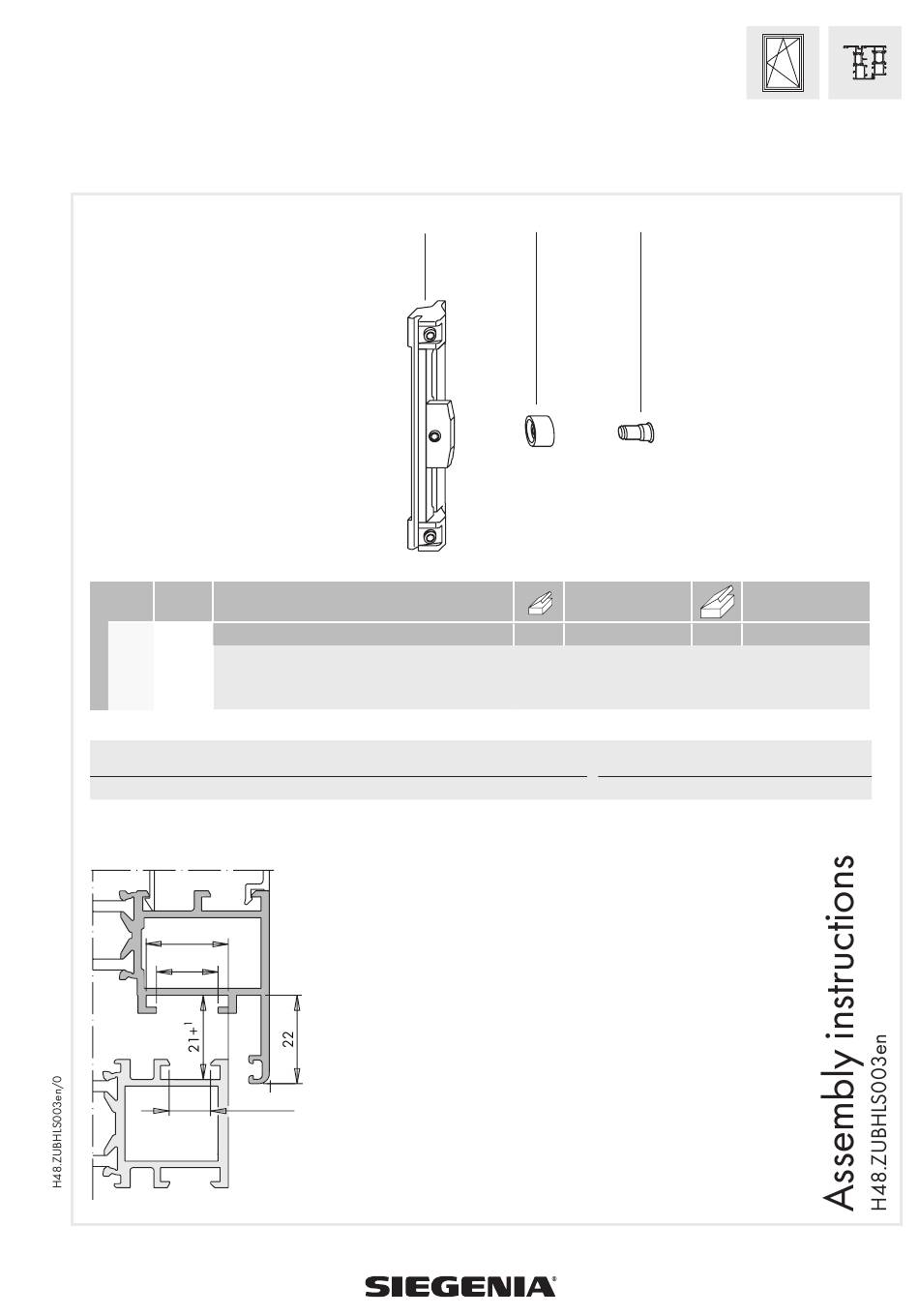

ALU concealed turning lock
1
ALU concealed turning lock
826
827
1
Locking roller
1
Roller bolt
828
Size range (depends on hardware)
G2 handle position
20
15
>10 ≤14
ALU eurogroove
05.2014
826
Material description
It is essential to check the planning manual on aluminium (H4006.3042EN) for
further details and specifications/information regarding the product and liability
(guidelines: VHBH, TBDK and VHBE).
For details of accessories for SIEGENIA ALU hardware, please refer to the
information on the ALU eurogroove for aluminium profiles for windows and
patio doors.
The system manufacturer's specifications should also be complied with.
827
828
Material no.
1
818916
Windows/Patio doors
Material no.
50
220528
≥ 400 mm
H48.ZUBHLS003en
Page 1
Advertisement
Table of Contents
Related Manuals for Siegenia ALU
Summary of Contents for Siegenia ALU
- Page 1 (guidelines: VHBH, TBDK and VHBE). >10 ≤14 For details of accessories for SIEGENIA ALU hardware, please refer to the information on the ALU eurogroove for aluminium profiles for windows and patio doors.
- Page 2 Press the roller bolt (828) through the hole (Ø 5.2) in the S2 operating rod from behind and insert the locking roller (827) (Fig. 2). Frame Position the ALU turning lock (826) as specified (Fig. 3) and fix in place using grub screws (torque 1.5 ± 0.25 Nm). Adjusting the...
