Tone Pin‐Set
Note that these instruc ons show generic parts. Parts included in individual tables may differ in appearance and func onality
but the assembly principle is the same.
Cau on: No impact drivers or other high‐torque equipment are to be used

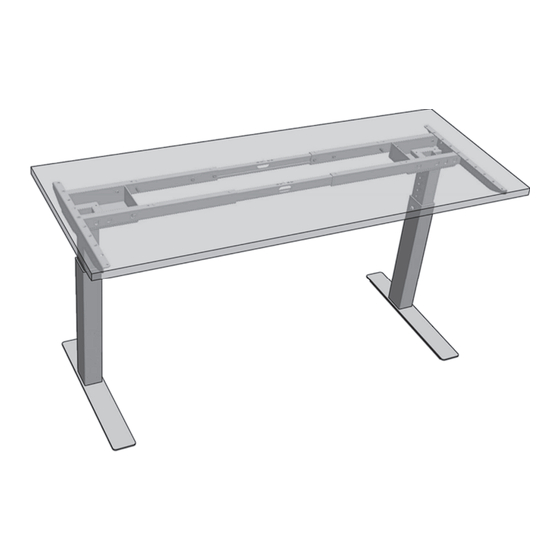

Complete product without work surface
Housing
Sidebar
Column
Foot
Complete product with work surface
ASSEMBLY INSTRUCTIONS
Crossbar
1
90⁰
120⁰
90⁰
120⁰
07.17
!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Knoll Tone Pin-Set
Summary of Contents for Knoll Tone Pin-Set

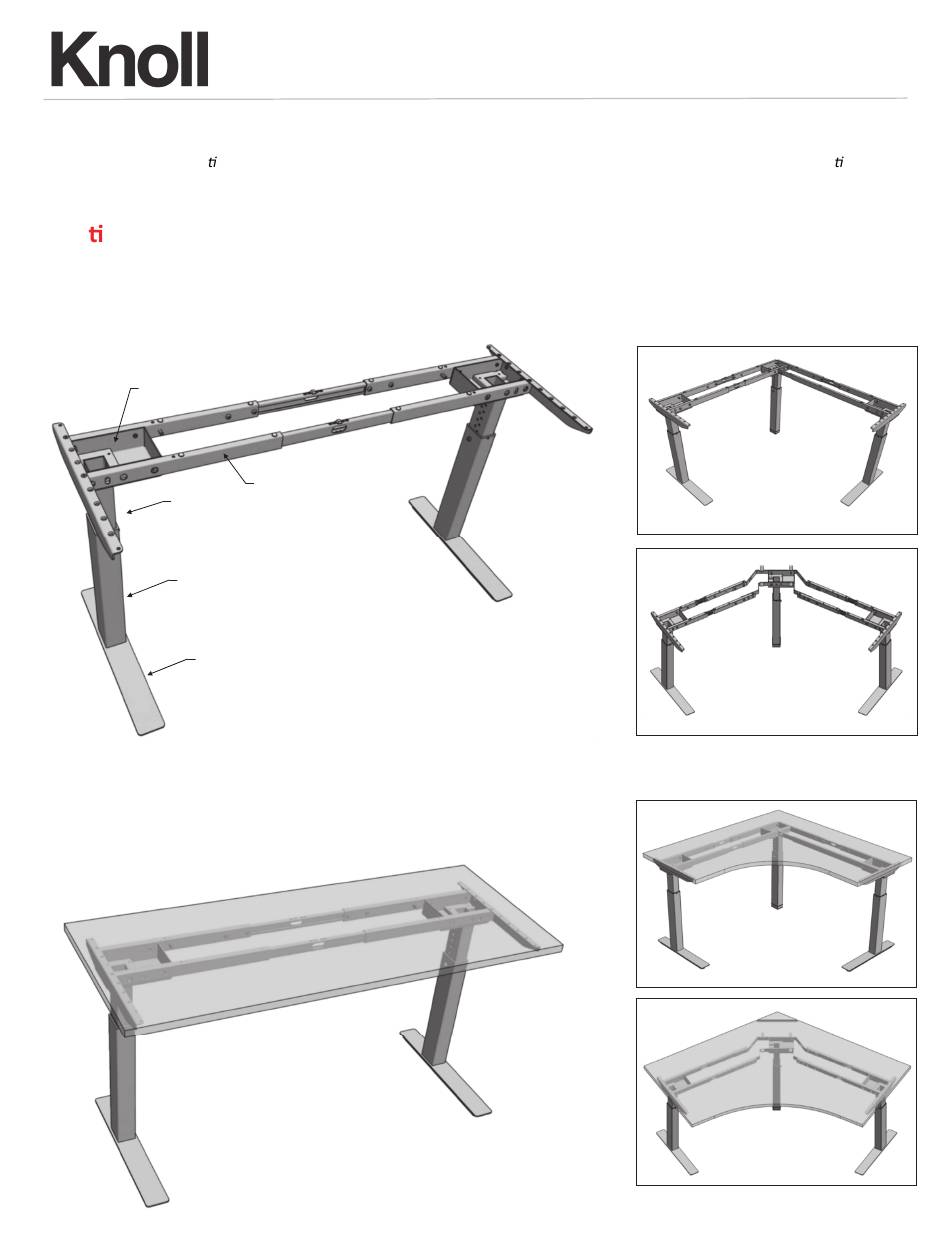

- Page 1 ASSEMBLY INSTRUCTIONS 07.17 Tone Pin‐Set Note that these instruc ons show generic parts. Parts included in individual tables may differ in appearance and func onality but the assembly principle is the same. Cau on: No impact drivers or other high‐torque equipment are to be used Complete product without work surface 90⁰ Housing Crossbar Sidebar 120⁰ Column Foot Complete product with work surface 90⁰ 120⁰ 1 ...
- Page 2 ASSEMBLY INSTRUCTIONS 07.17 (Fig. 1) Feet and Columns Alterna ve Foot Types KR68003496 Screw Socket Round UNC 5/16‐18x5/8” Zn On‐Foot / OnC 3 to 5 lbf· Maximum Torque from On‐Foot / OffC In‐Foot / OnC In‐Foot / OffC Screw to adjust column height Carefully measure out desired work surface height before adjus ng columns. Height can only be adjusted on an unloaded column. (Fig. 2) Crossbars Crossbar Types Adjustable width Fixed width Loosen screws to adjust crossbar Do not use the two middle holes of the crossbars. ...
- Page 3 ASSEMBLY INSTRUCTIONS 07.17 (Fig. 3) Sidebars Sidebar Types KR79100036 Right Hand / Le Hand sidebars for C‐leg Screw Philips Undercut Flat Head 1/4 ‐20x5/8” Zn Part numbers: KR3ae4014L ‐ Le KR3ae4014R ‐ Right Symmetric Sidebar for T‐leg Part number: KR3ae4015 (Fig. 4) Bumpers KR68003468 Bumper KR68003467 Bumper Ø1/2”x1/8” Transparent Place thick bumpers on C‐channel next to screw hole Place thin bumpers on tube next to screw hole and next to tube edge 3 ...
- Page 4 ASSEMBLY INSTRUCTIONS 07.17 (Fig. 5 ) 3‐Column 90⁰ Adjustable Crossbars Adjustable crossbars for 3‐column 90⁰ table. 3 regular adjustable crossbars 1 special adjustable crossbar Special adjustable crossbar Alterna ve foot No addi onal assembly kit KR68003491 Screw Socket CSK UNC 5/16‐18x1‐3/8”Zn (Fig. 6) 3‐Column 90⁰ Fixed Crossbars Fixed crossbars for 3‐column 90⁰ table. Regular fixed crossbar Regular fixed crossbar Regular fixed crossbar 6” 3 regular fixed crossbars shorter than the other three crossbars Alterna ve foot KR68003491 Screw Socket CSK ...
- Page 5 ASSEMBLY INSTRUCTIONS 07.17 (Fig. 7 ) 3‐Column 120⁰ Adjustable Crossbars Adjustable crossbars for 3‐column 120⁰ table. 4 regular adjustable crossbars KR68005205 Nut Hex UNC 5/16‐18 Zn 2 Brackets KR3AE4121 Bracket Outer KR3AE4120 Bracket Inner KR68003490 Screw Socket CSK UNC 5/16‐18x1” Zn Fixed crossbars for 3‐column 120⁰ table. (Fig. 8) 3‐Column 120⁰ Fixed Crossbars 4 regular fixed crossbars KR68005205 Nut Hex UNC 5/16‐18 Zn 2 Brackets KR3AE4121 Bracket Outer KR3AE4120 Bracket Inner KR68003490 Screw Socket CSK UNC 5/16‐18x1” Zn ...
-
Page 6: Assembly Procedure
ASSEMBLY INSTRUCTIONS 07.17 ASSEMBLY PROCEDURE ENGLISH Fig. 1 FEET AND COLUMNS Assemble the feet on the columns. Tighten screws firmly. Maximum Torque from 3 to 5 lbf· . Carefully measure out desired work surface height before adjus ng columns. Height can only be adjusted on an unloaded column. Loosen the screws and adjust height on the columns. Tighten screws firmly on the columns when preferred posi on is reached. Fig. 2 CROSSBARS A ach the crossbars on the long side of the housings. Tighten screws firmly. IMPORTANT: Do not use the two middle holes of the crossbars. ... - Page 7 ASSEMBLY INSTRUCTIONS 07.17 ENGLISH Fig. 5 3‐COLUMN 90⁰ TABLE, ADJUSTABLE CROSSBARS 3 regular adjustable crossbars and 1 special telescopic crossbar with an angled C‐channel are used. Fig. 6 3‐COLUMN 90⁰ TABLE, FIXED CROSSBARS 3 regular fixed crossbars together with 1 regular fixed crossbar 6” shorter than the other three are used. The assembly procedure is the same as for a 2‐column table with the excep on that the angled C‐channel mounts to the middle housing with one extra‐long screw 1‐3/8”. An alterna ve foot, shaped as a spacer, may be used on the middle column. Fig. 7‐8 3‐COLUMN 120⁰ TABLE 4 regular adjustable or fixed crossbars are used together with two 120⁰ brackets that a aches to the middle column. The assembly procedure is the same as for a 2‐column table. The 120⁰ brackets are a ached with bolts and nuts. ...
- Page 8 ASSEMBLY INSTRUCTIONS 07.17 REVISION DO NOT INCLUDE THIS PAGE IN PRINTOUTS Update document ID and revision on previous page Document ID: 68004681 Created by: PERLOH Revision: E Crea on date: 2014‐07‐22 Revision date: 2017‐07‐17 Revision Date Change Revised by Rev A 2014‐07‐22 New document ...
