INSTALLATION
INSTRUCTIONS

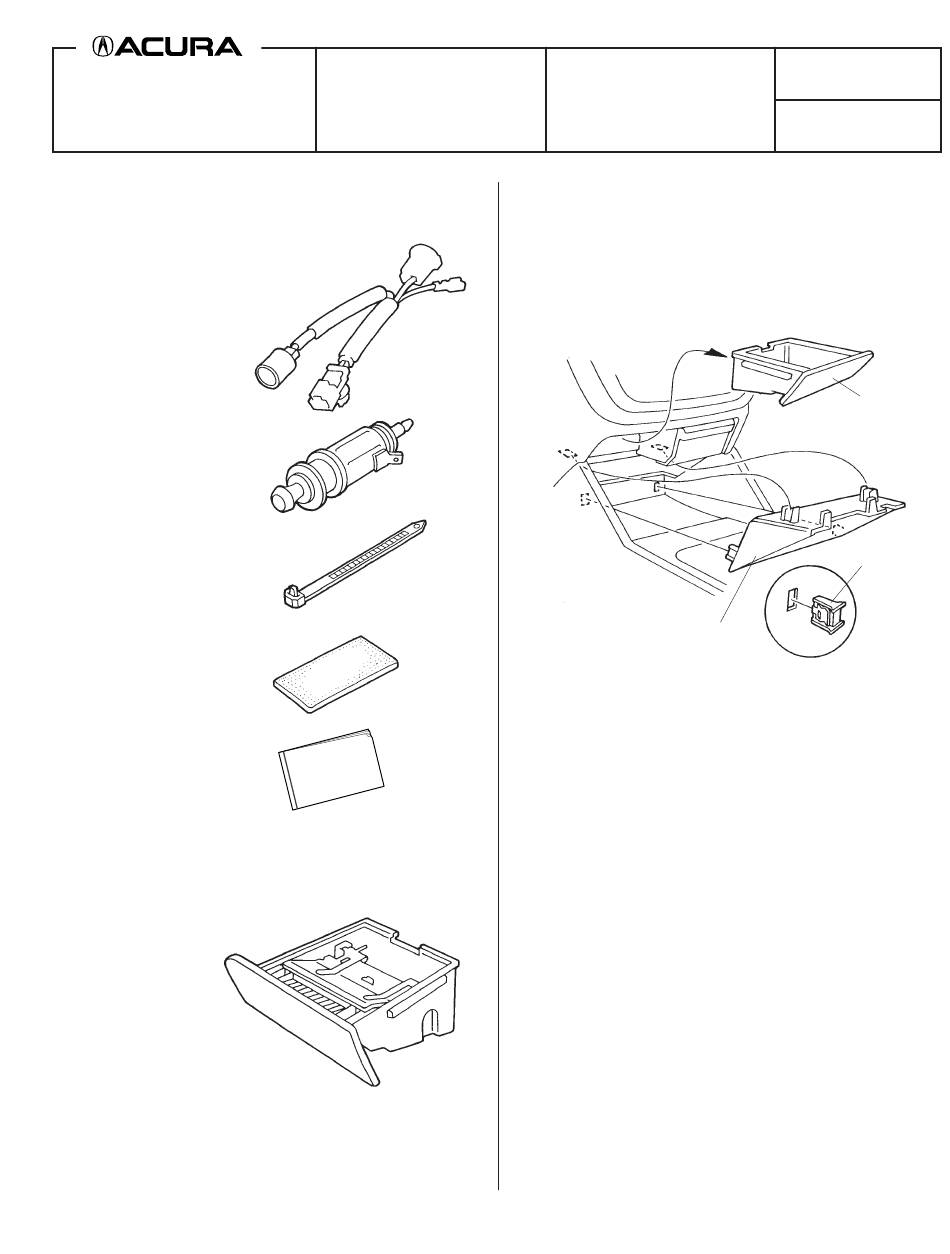

PARTS LIST
Cigarette Lighter (sold separately):
P/N 08U25-S9V-100B
Harness
Cigarette lighter
Wire tie
3 Cushion tapes
User's Guide
Ashtray (sold separately):
P/N 08U25-S3V-210 (Black)
P/N 08U25-S3V-270 (Saddle)
P/N 08U25-S3V-221 (Quartz)
Ashtray
TOOLS AND SUPPLIES REQUIRED
#2 Phillips screwdriver
Stubby Phillips screwdriver
Electrical tape
© 2004 American Honda Motor Co., Inc - All Rights Reserved.
Accessory
CIGARETTE LIGHTER
AND ASHTRAY
TOURING PACKAGE
TOURING PACKAGE NAVI
BII 28212 (0409)
Application
2005 MDX
WITHOUT REAR
ENTERTAINMENT SYSTEM
INSTALLATION
1.
Move the shift lever to the N position, then
remove the pocket. Save the pocket for your
customer.
CENTER LOWER
COVER
If you're installing only an ashtray, go to step 21;
otherwise continue with step 2.
2.
Remove the center lower cover by releasing the four
clips and two tabs. Take care not to damage the
clips.
3.
Make sure you have the anti-theft code for the radio
and, if equipped, the navigation system, then write
down the radio station presets.
4.
Disconnect the negative cable from the battery.
Publications No.
BII 28212
Issue Date
SEP 2004
POCKET
(Save for your
customer.)
CLIP
1 of 3
08U25-S3V-2F00-91
