6- BOILER PACKAGING

CAUTION: Atten�on must be paid to warning on packaging regarding handling and
storage.

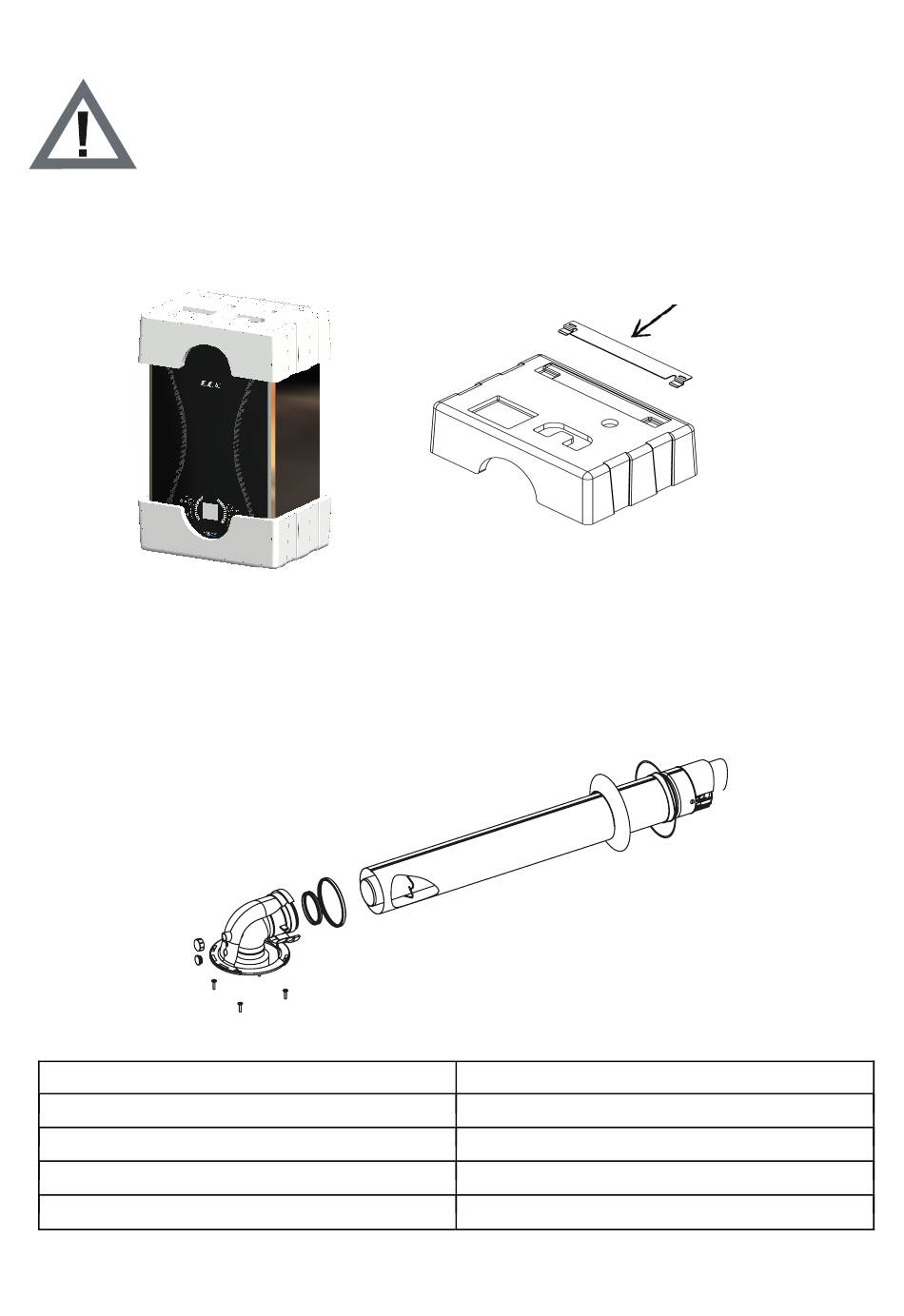

• The device is delivered with a cardboard with dimensions of 735 x 345 x 490 (HxWxD) mm,
supported by upper and lower styrofoams.
- Parts required for installation of the device (wall bracket, 5 gaskets for HM and HCH and 6 gaskets for
HST water and gas connections, 2 anchors and 2 fixing screws) are placed on the top styrofoam.
- The hermetic flue set is delivered in a cardboard box separate from the device. The standard hermetic
flue set (Ø60/100 or Ø80/125) consists of the following parts (Figure 4).
3
2
1-90 Elbow
0
2- Exhausted Gas Tap
4- Sealing Gasket ∅60 or ∅80
3- Air Inlet Tap
5- Sealing Gasket ∅100 or ∅125
1
5
4
7
6
G
Figure 3
8
Figure 4
6- Flange Screws
7- Flange Gaskets
8- Flue Exhaust Terminal
9- Inner Wall Connec�on Flange
10- Outer Wall Connec�on Flange (EPDM)
Table 2
11
Mounting Bracket
10
9
