2. Regulator

2.1 Operating the regulator

The controller has TOUCH&PLAY system that facilitates its operation. Encoder is operated by its
rotating and pressing. To start the controller, keep pressed encoder knob for 3 seconds. When
the message „Active regulator?" must set YES. The screen will display the main screen. Another
press will call the main menu. Rotate the encoder TOUCH&PLAY increases or decreases the
value parameter being edited. It is the element of quick operating of the regulator. Short press
the encoder to input the selected parameter or approval of the selected value. Pressing for
3 seconds to exit the selected parameter or do not accept the selected value. All controller
settings are made through a rotary system MENU. After calling up the main menu on the screen
will display a screen with icons representing the functions of the controller.

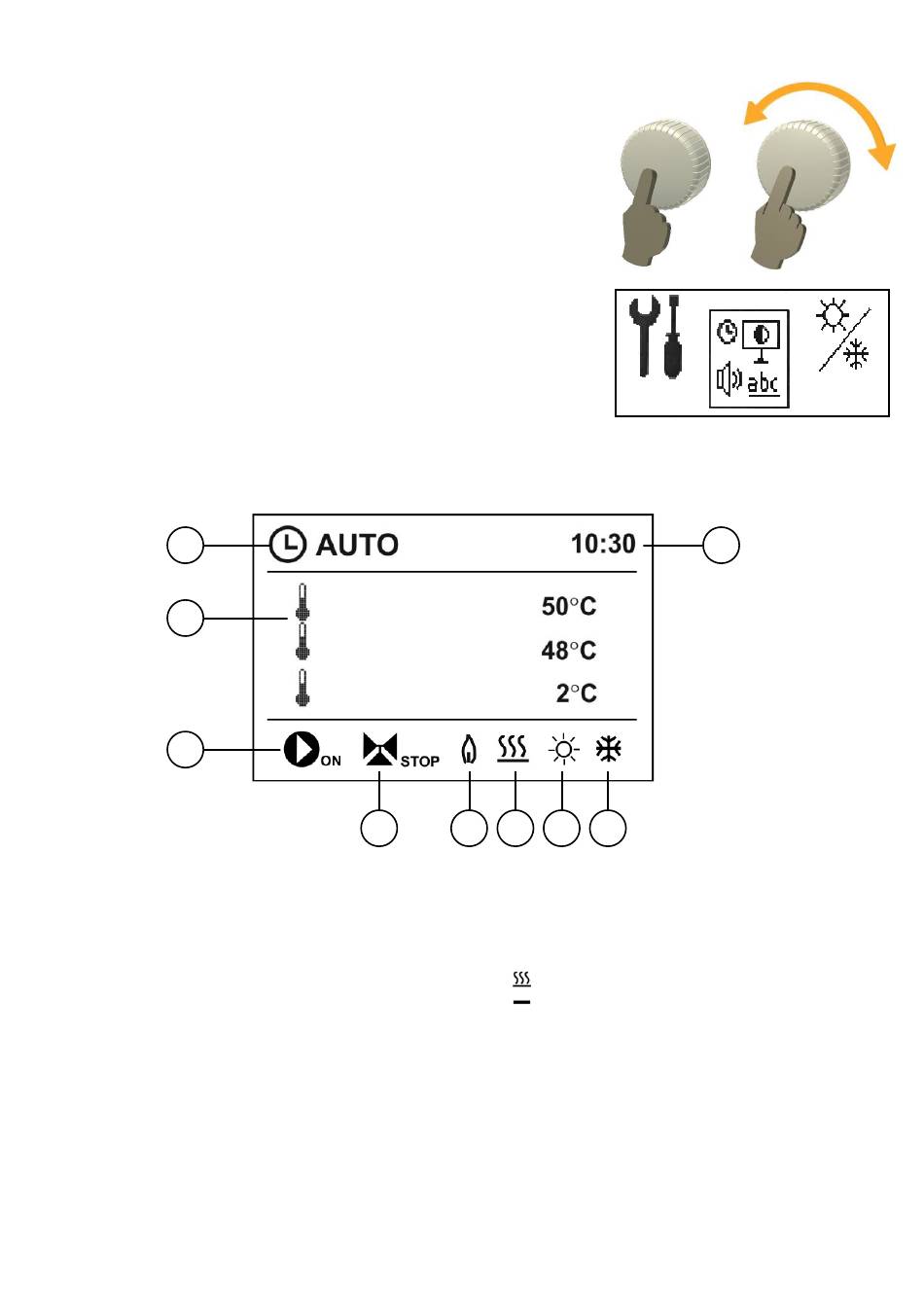

2.2 Description of display main window

1
2
3
1. controller operating modes:
- OFF
- AUTO (clock operation),
- COMFORT,
- ECONOMIC,
- AUTO-ECO
2. value of set temperature measured and
external (weather) temperature value 3.
operation of central heating pump:
- ON ,
- OFF
4. position of the mixer servo:
- ON - opens
- OFF - closes,
- STOP - off. 5. operation of heat source (boiler on)
EWT100 FULL MANUAL
preset preset
current current
external external
4 5
5
THU THU
6 7 8
6. information from room thermostat: • no icon - circulation
thermostat off, • heating - room temperature below setpoint,
• no heating - room temperature above setpoint.. 7. active
SUMMER mode
8. anti-freeze function active
9. day of the week and time.
9
