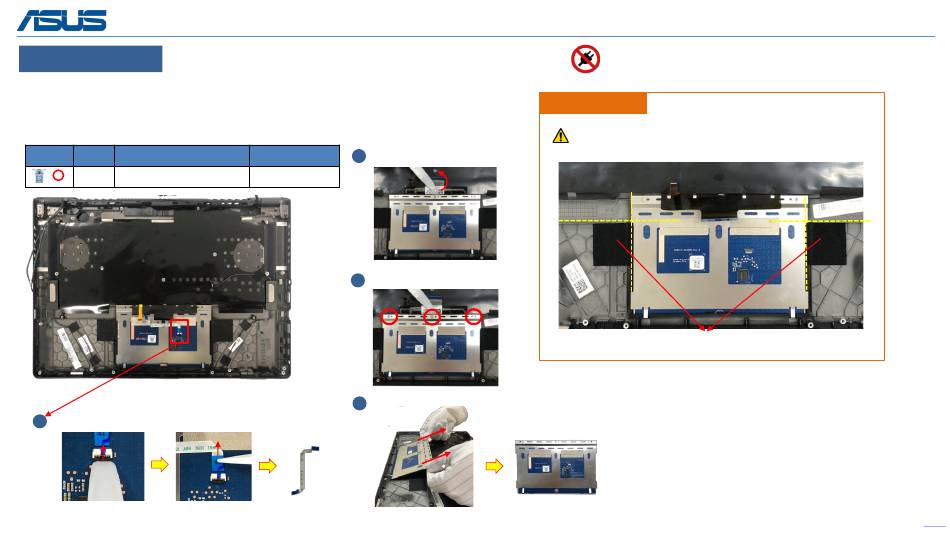

Touchpad Module - Asus ROG Zephyrus M16 Series Service Manual

Disassembly Notice Please be sure to pull out adapter and disconnect the battery.
Step 1 : Disconnect and remove the FFC.
Step 2 : Flip up the KB FPC.
Step 3 : Remove screws *3pcs.
Step 4 : Remove TOUCHPAD module.
Screws QTY Spec
3 M2*2.5L (4.5,0.5) (K) #1
1
Disconnect

TOUCHPAD MODULE

Torque (kgf-cm) 2 Flip up
2.0±0.2
3
Unscrew
4
Remove
Assembly Notice
After TOUCHPAD assemble, please follow below location to
paste the TP Sponge.
TP Sponge
26
