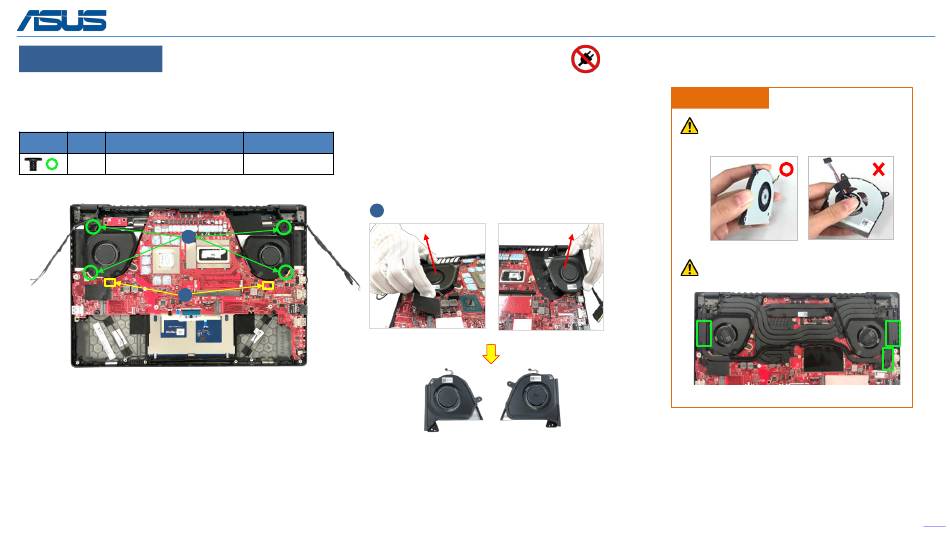

Fan - Asus ROG Zephyrus M16 Series Service Manual

Disassembly Notice Please be sure to pull out adapter and disconnect the battery.
Step 1 : Disconnect connectors *2pcs. (Yellow mark)
Step 2 : Remove screws *4pcs. (Green mark)
Step 3 : Remove the FAN *2pcs.
Screws QTY Spec
4 M2*4.5L (4.5,0.8) (K) #1
2
1
Torque (kgf-cm)
2.0±0.2
3
Remove

FAN

Assembly Notice
Please use the correct technique to take
fans off to avoid getting out of shape.
Please follow below location to paste
CABLE TAPE. (Green mark)
20
