Keyboard Module - Asus ROG Zephyrus M16 Series Service Manual

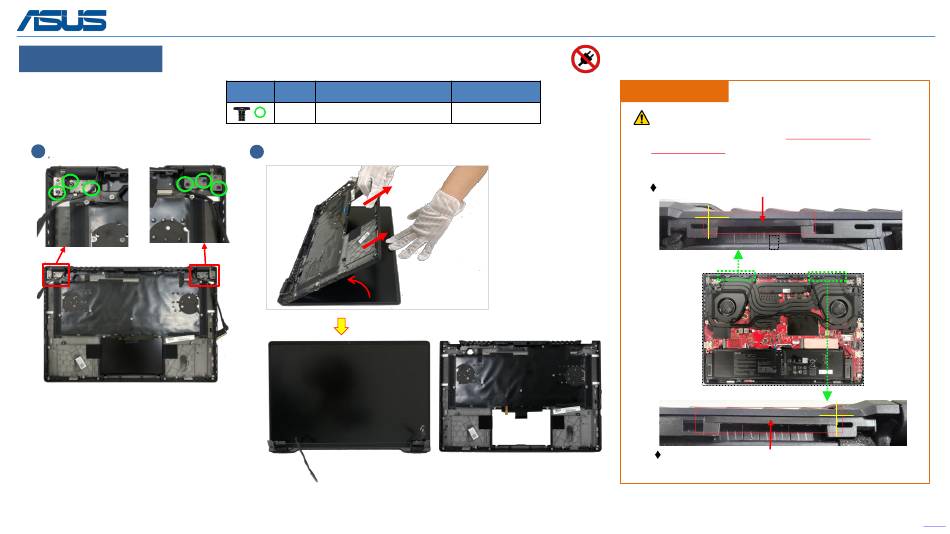

Disassembly Notice Please be sure to pull out adapter and disconnect the battery.
Step 1 : Remove hinge's screws *6pcs.
Step 2 : Flip up and remove KB module.
1
Unscrew

KEYBOARD MODULE

Screws QTY Spec
6 M2*4.5L (4.5,0.8) (K) #1
2
Flip up and remove
Torque (kgf-cm) Assembly Notice
2.0±0.2
After the Keyboard module assembly, please follow
below location to paste the THERMAL COVER
MYLAR.(*2pcs)
THERMAL COVER MYLAR 1 (26*2*0.3mm)
THERMAL COVER MYLAR 2 (31*2*0.3mm)
