Lcd Cover Module - Asus ROG Zephyrus M16 Series Service Manual

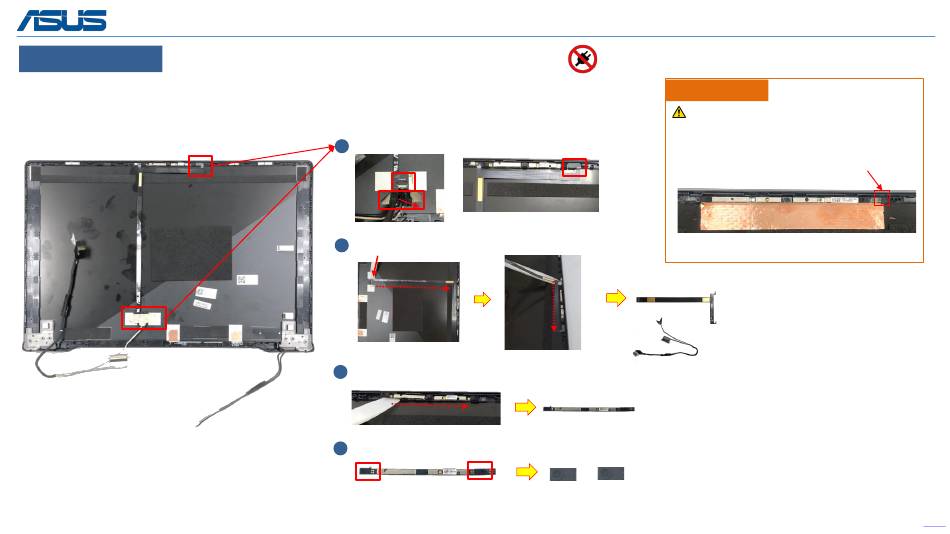

Disassembly Notice Please be sure to pull out adapter and disconnect the battery.
Step 1 : Release GASKET and disconnect MIC FPC connector *2pcs.
Step 2 : Remove MIC FPC and EDP CABLE.
Step 3 : Remove CAMERA.
Step 4 : Remove MIC RUBBER *2pcs.

LCD COVER MODULE

1
Release and disconnect
2
Remove
3 Remove
4
Remove
Assembly Notice
After the camera module is assembled, please
stick the camera module tape according to the
following positions, and then connect the MIC FPC.
Camera module tape
