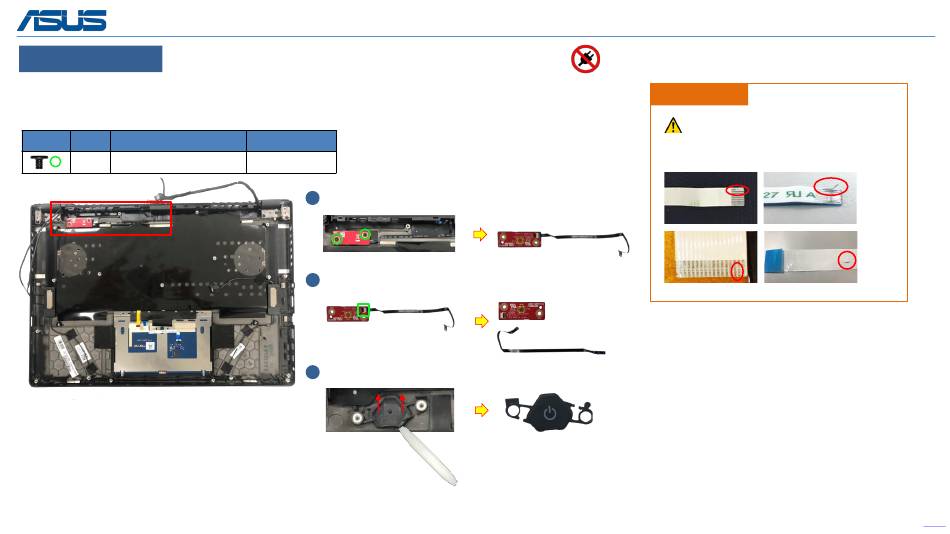

Power Bd - Asus ROG Zephyrus M16 Series Service Manual

Disassembly Notice Please be sure to pull out adapter and disconnect the battery.
Step 1 : Remove screws *2pcs and remove POWER BD with FP PW FFC.
Step 2 : Disconnect connector and remove FP PW FFC from POWER BD.
Step 3 : Remove POWER KEY from top case.
Screws QTY Spec
2 M2*3L (K) B-ZN #1 NY

POWER BD

Torque (kgf-cm)
2.0±0.2
1 Unscrew
2
Disconnect
3
Remove
Assembly Notice
If FFC is damage during disassembly, please
replace new one. Here are some samples of
FFC damage:
