Disassembly Notice Please be sure to pull out adapter and disconnect the battery.

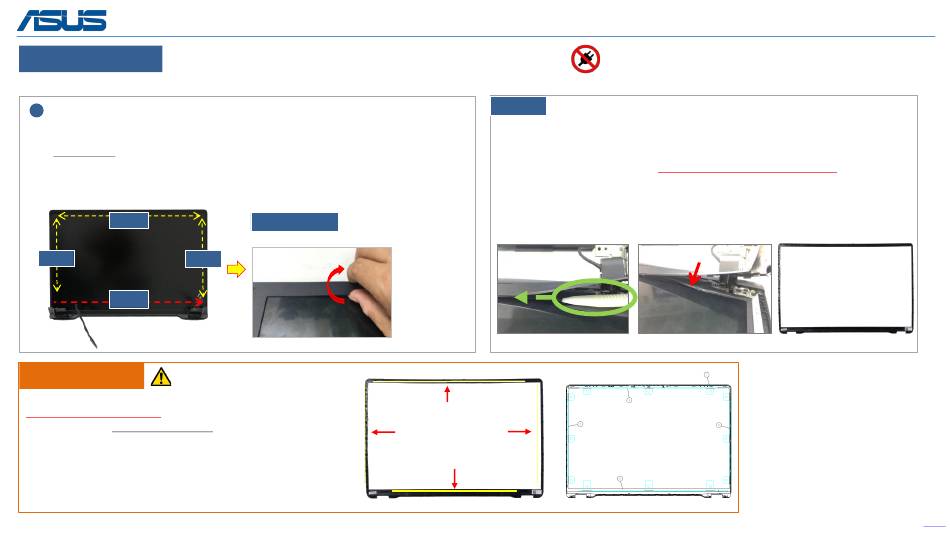

Step 1 : Remove LCD BEZEL.
1
Step 1-1~1-3, Start from the middle area of each side of bezel,
Using the forefinger to hold the outer edge firmly and the thumb flipping the
bezel inner edge outward to release the hooks as indicated in the diagram shown.
(It can be helpful, if holding the bezel outer edge firmly with forefinger.)
1-3
1-1
1-2
1-4
Assembly Notice
When reuse the LCD BEZEL:
Please paste new LCD BEZEL ADHESIVE before assembly BEZEL.
(New LCD BEZEL already contains LCD BEZEL ADHESIVE *1pcs, LCD
BEZEL ADHESIVE TOP*1 pcs, LCD BEZEL ADHESIVE L/R*2pcs.)

LCD BEZEL

Step 1-1~1-3
Thumb flipping the inner edge outward.
LCD BEZEL ADHESIVE TOP
LCD BEZEL ADHESIVE L/R
LCD BEZEL ADHESIVE
Step 1-4
Due to some tapes behind the lower edge of bezel, please using plastic
blade to teardown the bezel.
Please follow the direction shown in the red arrow, to move plastic blade from left
to right and peel the bezel away slowly.
parallel direction to the panel and pressing the black Mylar downward (As circled in
green) to ensure the black Mylar and the tape behind the bezel are well separated.
Please move blade slowly to separate the bezel away, and must
press the black Mylar downward with panel parallel direction..
Panel's black Mylar
While peeling, please move the blade in the
28
