Disassembly Notice
Please be sure to pull out adapter and disconnect the battery.

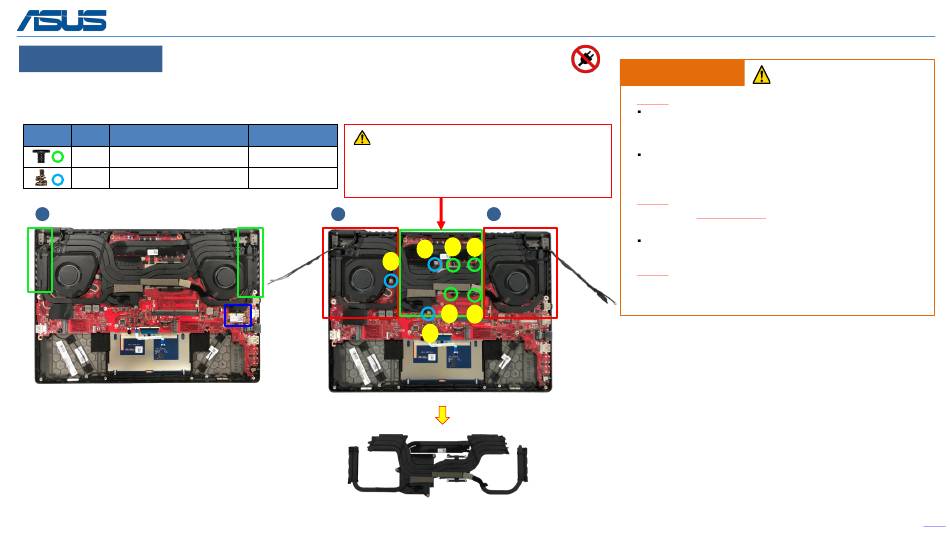

Step 1 : Disconnect EDP cable (Blue area) and release tapes and EDP cable.
Step 2 : Please follow the reverse screws numbers to remove and release screws *7pcs.
Step 3 : Remove the THERMAL MODULE.
Screws
QTY
Spec
4
M2*4.5L (4.5,0.8) (K) #1
3
Retention screw
1
Disconnect and Release
THERMAL MODULE
Torque (kgf-cm)
Recommend that the force point is at green
block, and pull up thermal module to take it out. Do
2.0±0.2
not pull up at red block and also notice the thermal
2.0±0.2
pipe should not have deformation.
2
Unscrew
7
5
6
3
Remove
1
4
3
2
IMPORTANT! Thermal paste, thermal pads, liquid metal, or
other thermal interface materials must be thoroughly
removed and replaced if this component is removed. Ensure
that replacement materials are available before proceeding, or
contact an authorized service center for assistance.
WARNING! The heat sink contains liquid metal and should
only be removed by authorized service personnel. Significant
damage may occur to motherboard components if the heat
sink is improperly removed.
Assembly Notice
Step-1
THERMAL MODULE Location:[VRAM/CHOKE/MOS]
Material: FCR-AS Grease
MB Location:[GPU]
Material: TH PAD PTM7958
Step-2
Please refer
Repair Notice SOP
for
Liquid metal
reassemble thermal module before.
MB Location:[CPU]
Step-3
Please follow the screws numbers to lock screws *8pcs.
