Disassembly Notice
Please be sure to pull out adapter and disconnect the battery.

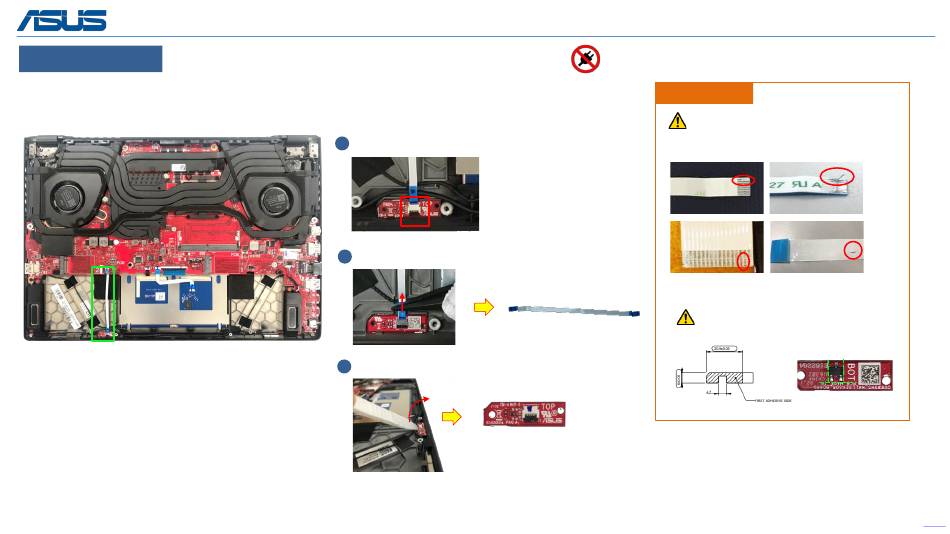

Step 1 : Disconnect the HALL SENSOR FFC connector.
Step 2 : Remove HALL SENSOR FFC.
Step 3 : Remove HALL SENSOR BD.
HALL SENSOR BD
1
Disconnect
2
Remove
3
Remove
Assembly Notice
If FFC is damage during disassembly, please
replace new one. Here are some samples of
FFC damage:
For HALL SENSOR BD assembly, please
paste HALLSENSOR PCB ADH (1pcs) as below.
17
